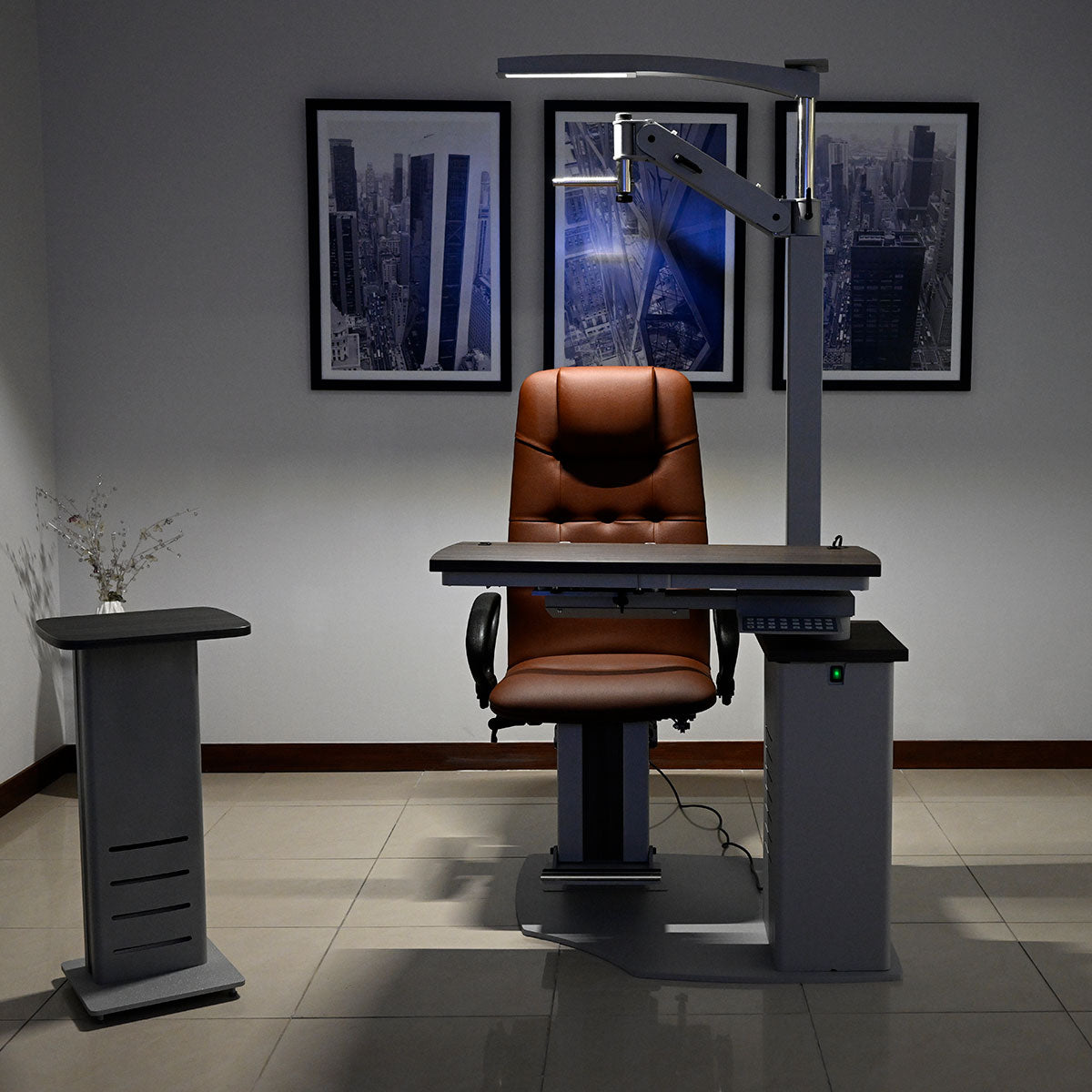

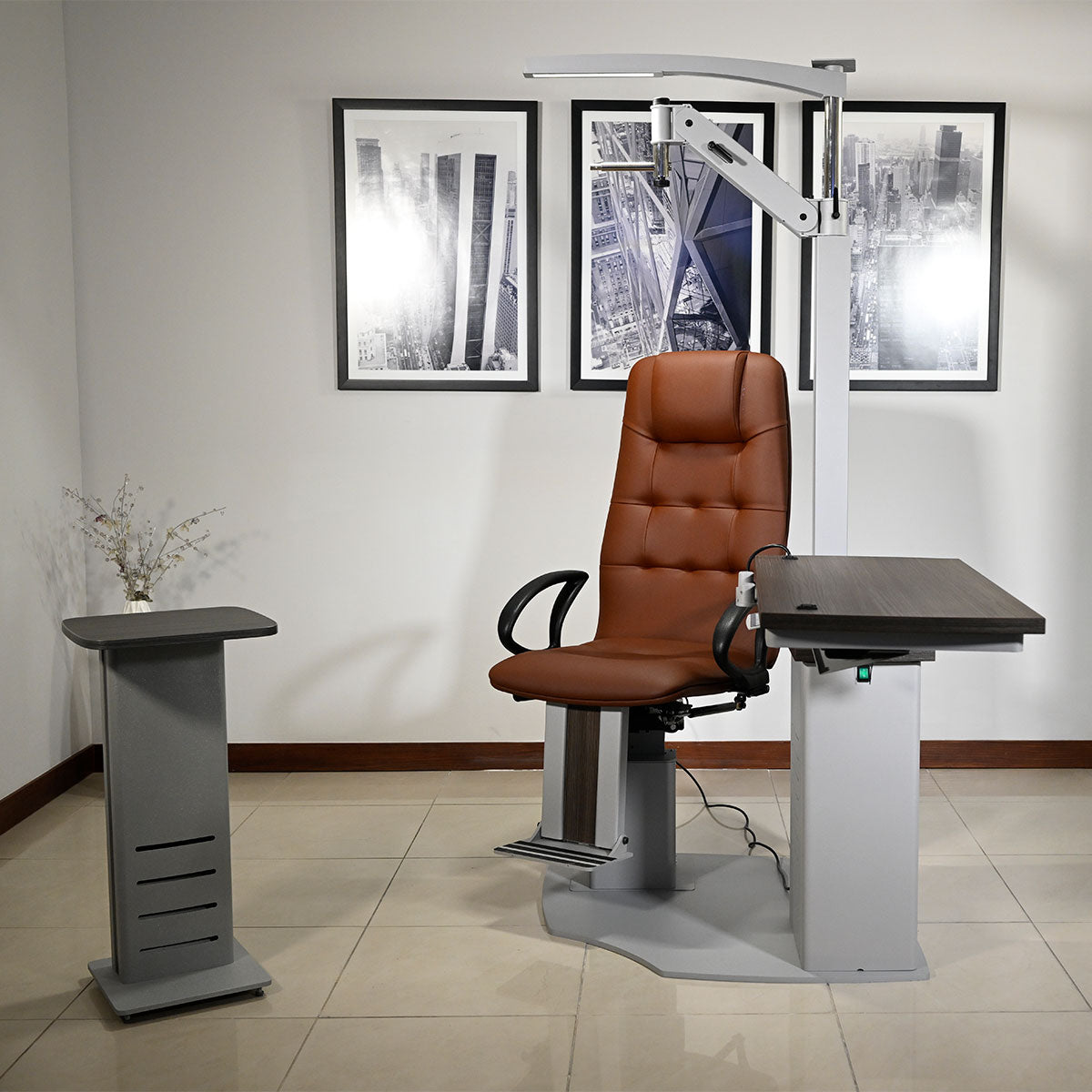

Visionare Refraction Unit Capri

The Capri Superiore Refraction Unit is the newest unit from US Ophthalmic, designed with elegance and refinement in mind. Patients and specialists alike appreciate the functional design and comfort of our platforms. That is why we have designed the Capri Superiore as a fully customizable unit. We have also taken space into consideration—in compact offices with limited room for equipment, it is a sleek unit designed to fit anywhere. The Capri Superiore offers all the options and features of a top-tier refraction unit at a fraction of the cost.

Talk to a specialist

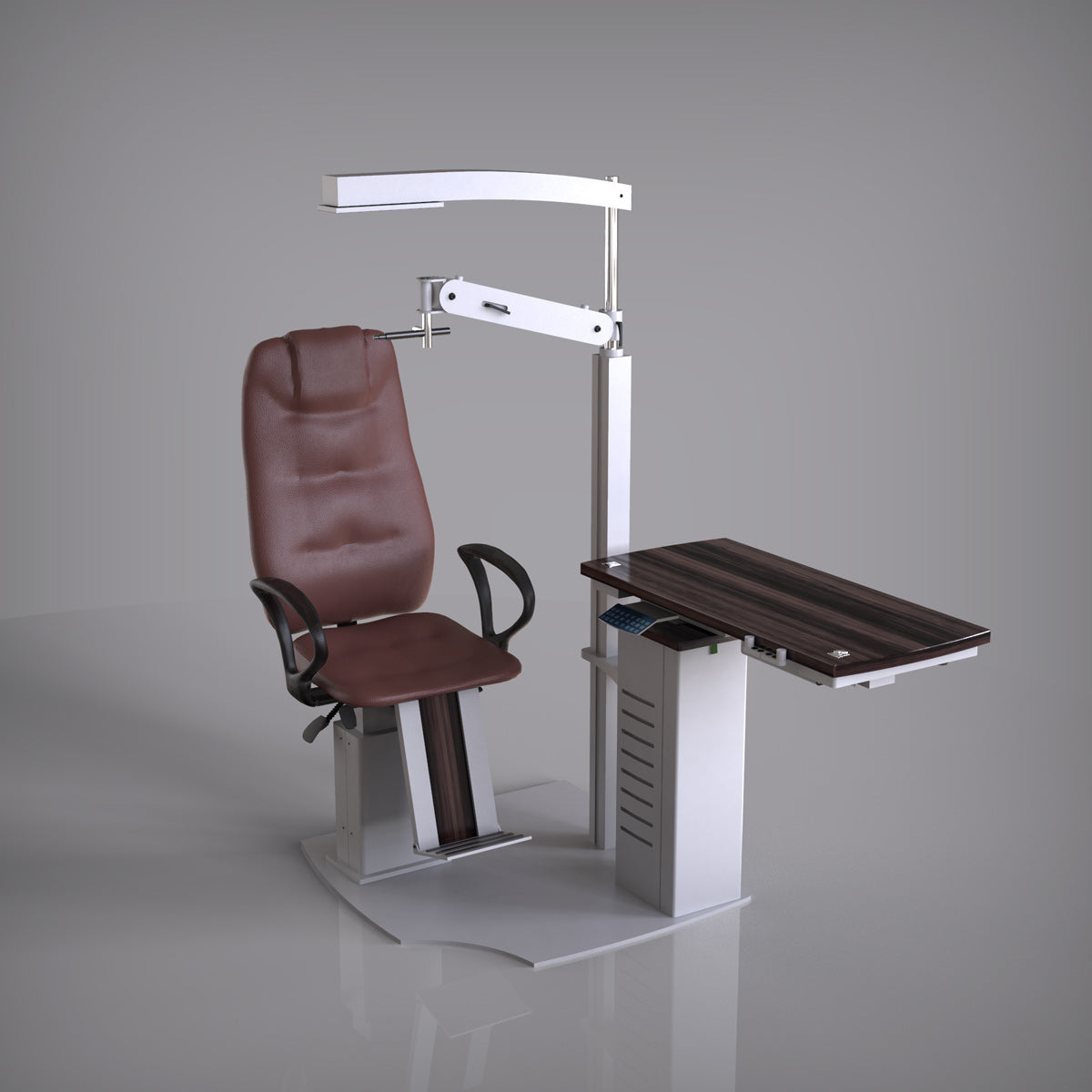

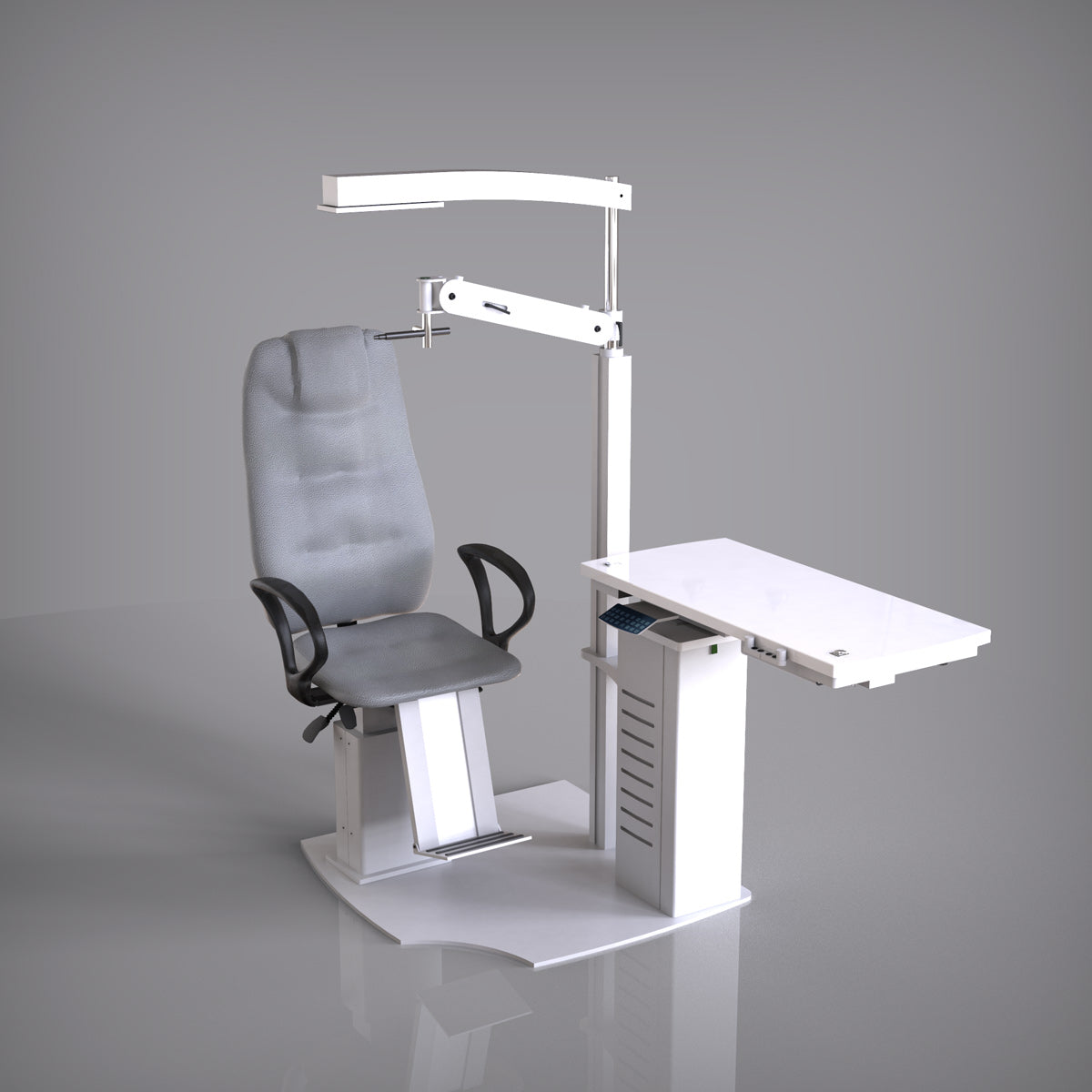

Elegant and customizable design

The Capri Superiore is fully customizable to adapt to the needs of each practice and specialist.

Compact for any space

Its delicate design allows it to be installed in small offices without sacrificing functionality or performance.

Comfort for patients and specialists

Developed with a focus on user comfort and experience during every refraction examination.

Premium quality at a lower cost

Offers all the features of a top-tier refraction unit at a fraction of the market price.

Capri Line

Refraction Units — Compare the models

Premium European design for modern clinics

Capri Superiore
Top of the range

Capri Prima
Essential

Feature	Superiore	Prima
	Top of the range	Essential
Electric Elevating Chair	✓	–
Reclining Backrest	✓	✓
Overhead Lamp	✓	✓
Chair Sliding (back and forth)	⚡ Electric	–
Footrest	Tip-Up	Tubular
Tip-Up Armrest	✓	✓
Manual Phoropter Arm (sold separately)	✓	✓

✓ Included
⚡ Electric
Variant
– Not included

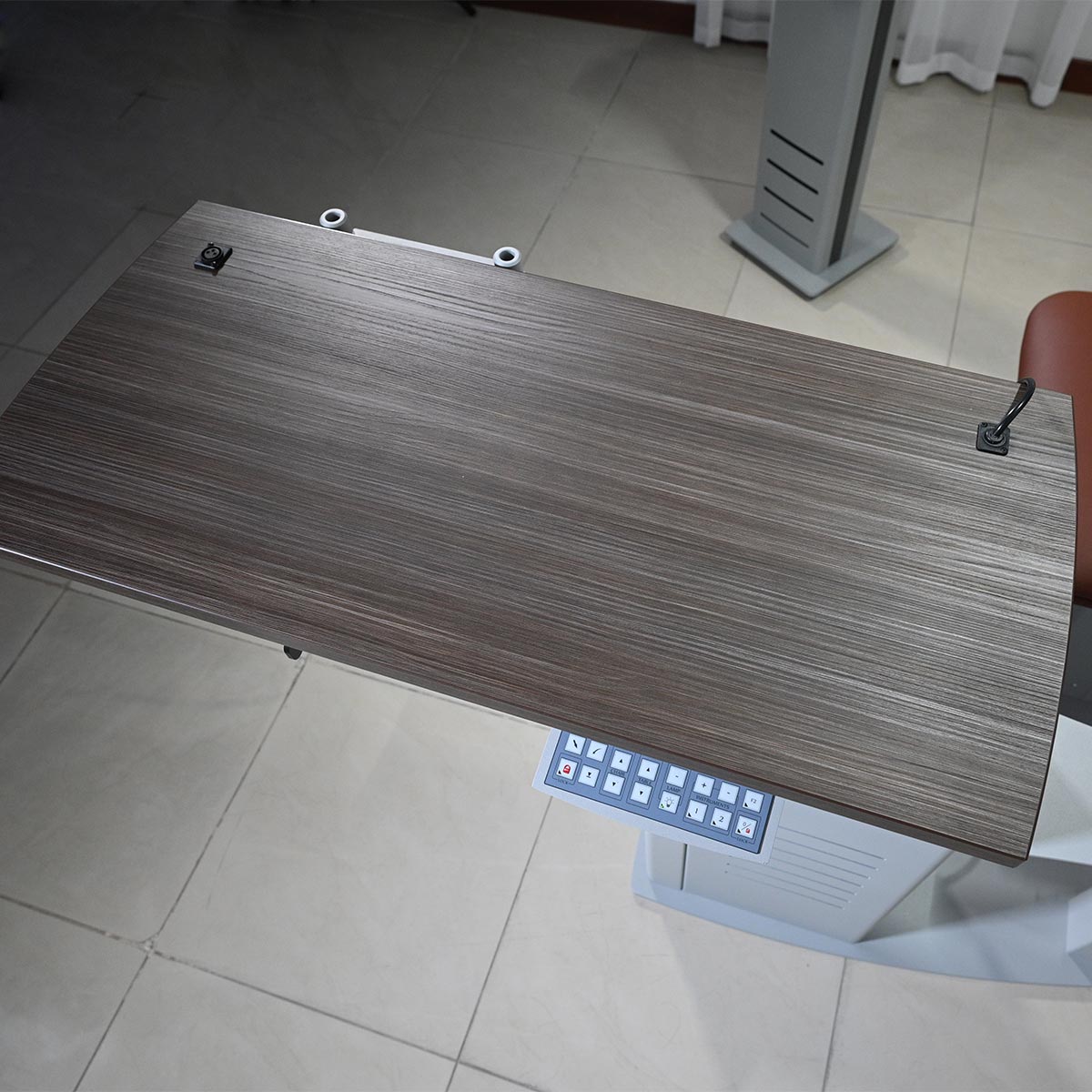

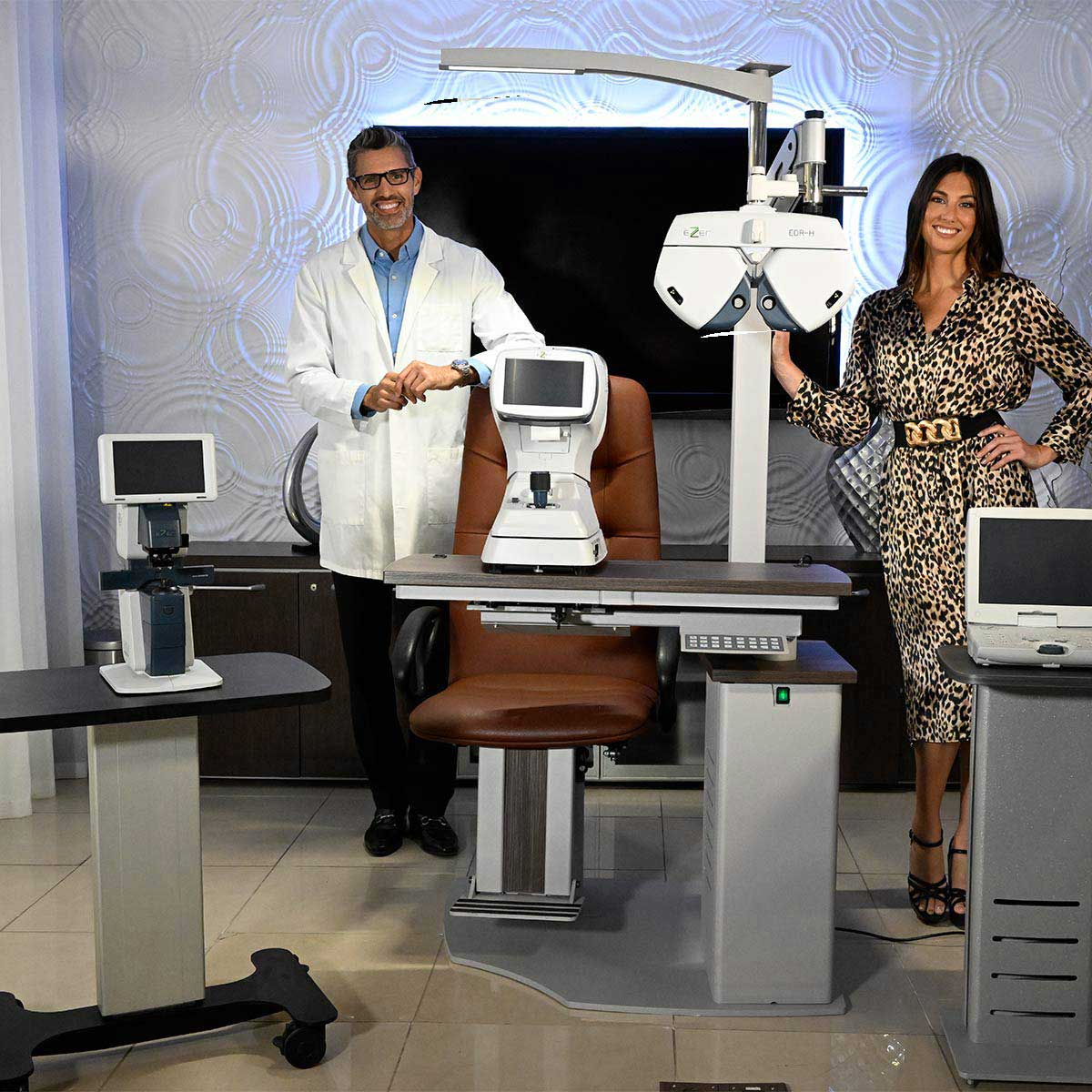

Supports two instruments on the table

Specialists can customize the Capri table with up to two instruments for greater ease of use. The unsightly cables and wires from the instruments remain concealed within the unit.

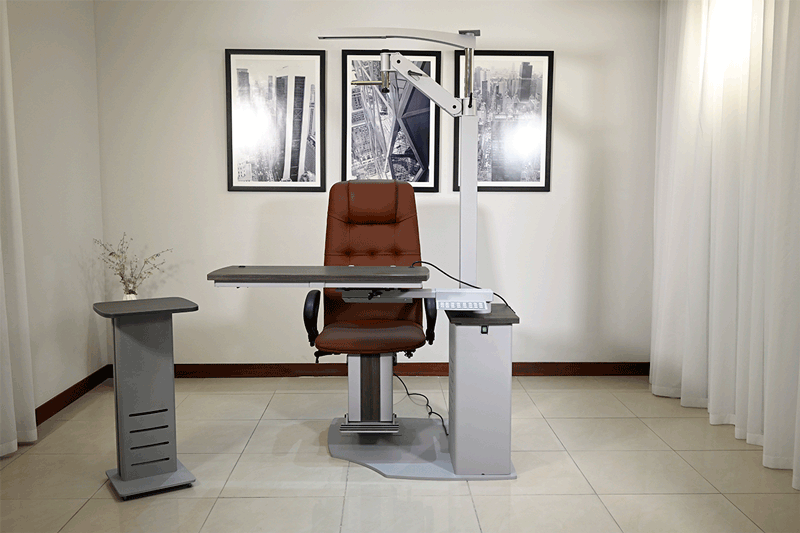

Ease of use and multidimensional movement

The Capri table was designed with flexibility in mind. It moves horizontally and rotates to allow the patient to enter and exit the chair with ease. The specialist can quickly maneuver the table during consultations to easily access instruments, reducing repetitive strain from everyday office tasks.

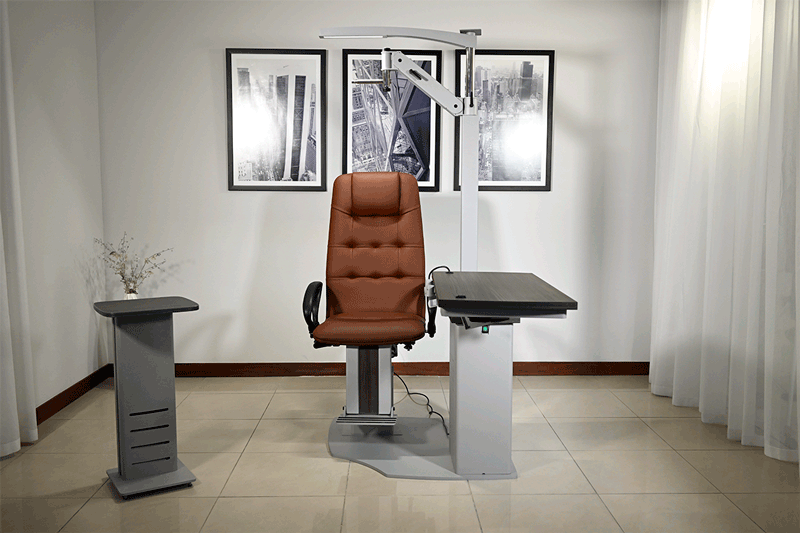

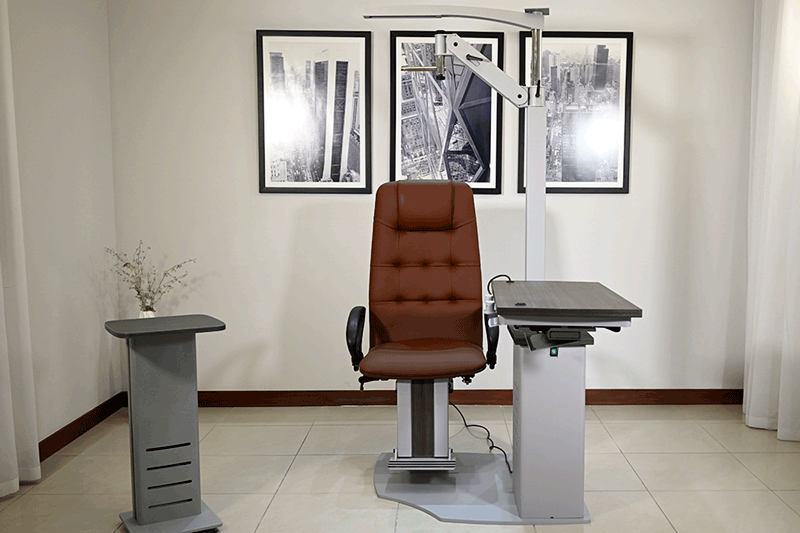

Examination Chair Mobility

The Capri chair incorporates functionality and comfort for both the patient and the specialist. The specialist can use the electronic control panel to raise or lower the chair during examinations. The chair can also be reclined horizontally, which facilitates the application of ophthalmic drops.

ℹ Electric sliding chair — available only on the Capri Superiore.

Chair Footrest and Armrests

The chairs are equipped with movable armrests and footrests for greater patient comfort.

ℹ Only the Capri Superiore includes a tip-up footrest; the Prima has a fixed tubular footrest.

Control Panel

The easy-to-use electronic control panel of the Capri features all the functions the professional will need during the examination. Not only can it raise and lower the patient chair, but it also controls the slit lamp, turns the chart projector on and off, and locks the unit in place.

ℹ The unit features two integrated control panels

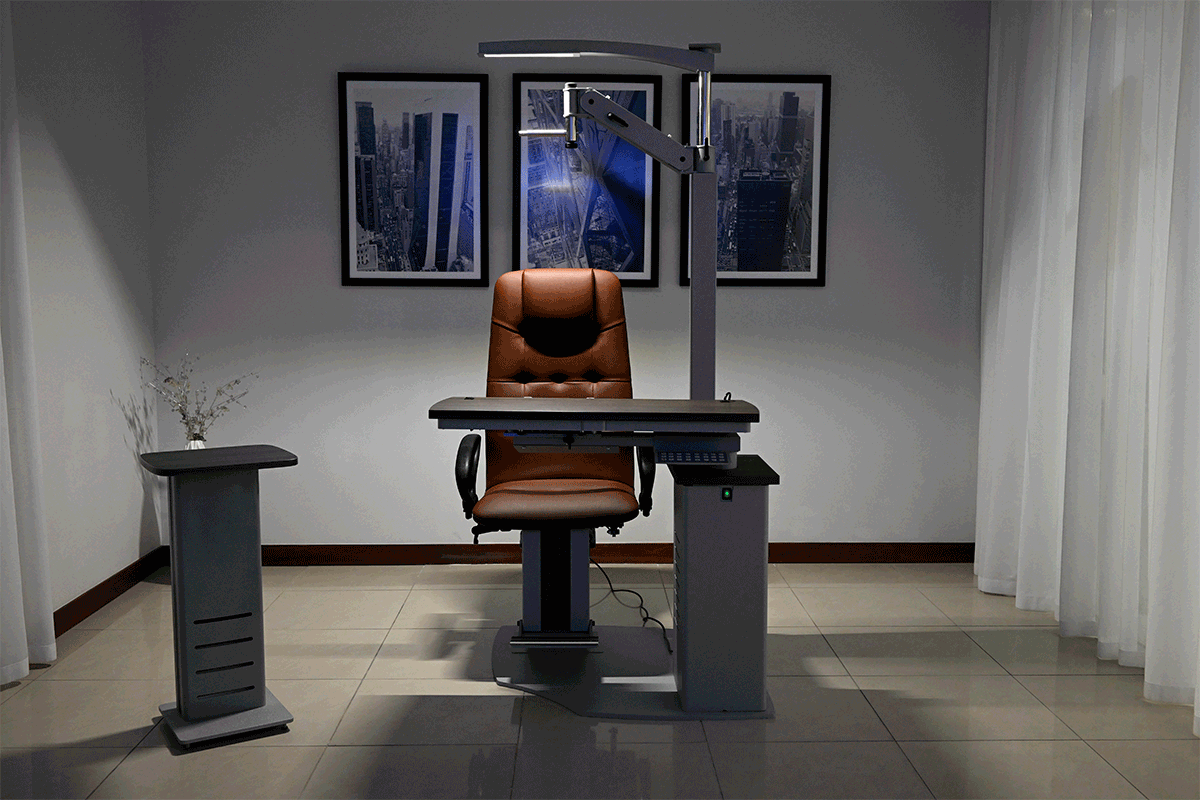

Lighting

The Capri is equipped with an LED lamp for illumination adjustments during examinations. Providers can use the electronic control panel to easily adjust the room brightness according to their needs.

Manual Phoropter Arm

The Phoropter Arm is also compatible with the Capri, but is sold separately. This adjustable arm moves up and down and can be locked in position.

ℹ Manual Phoropter Arm is sold separately

Dimensions

Specifications

Dimensions

Width: 38 in Depth: 64 in
Input Voltage / Power Supply Frequency

220-240 V ~ 50/60 Hz
Input Current

220-240 V~ max 1.4 A
2 main fuses located in the fuse holder at the rear of the column base

220-240 V~ version: T3.15A250V
Weight Lifting Capacity of the Chair

330 lbs
Maximum instrument weight (1st – 2nd)

33 lbs – 44 lbs
Upper Lamp Bulbs

LED ~12V Max 2x5 W
Instrument Outlet Supply Voltage

According to the version type. Available version types: 6 V and 6 V, 6 V and 12 V, 12 V and 6 V, 12 V and 12 V
Maximum Power Supplied by the Instrument Outlets

50 VA
Instrument light intensity controlled via touch panel Upper lamp light intensity controlled via touch panel Chinrest mounting bracket included

Visionare Refraction Unit Capri

Elegant and customizable design

Compact for any space

Comfort for patients and specialists

Premium quality at a lower cost

Capri Line

Customize your unit

Dimensions

Specifications

Dimensions

Input Voltage / Power Supply Frequency

Input Current

2 main fuses located in the fuse holder at the rear of the column base

Weight Lifting Capacity of the Chair

Maximum instrument weight (1st – 2nd)

Upper Lamp Bulbs

Instrument Outlet Supply Voltage

Maximum Power Supplied by the Instrument Outlets

Instrument light intensity controlled via touch panel Upper lamp light intensity controlled via touch panel Chinrest mounting bracket included

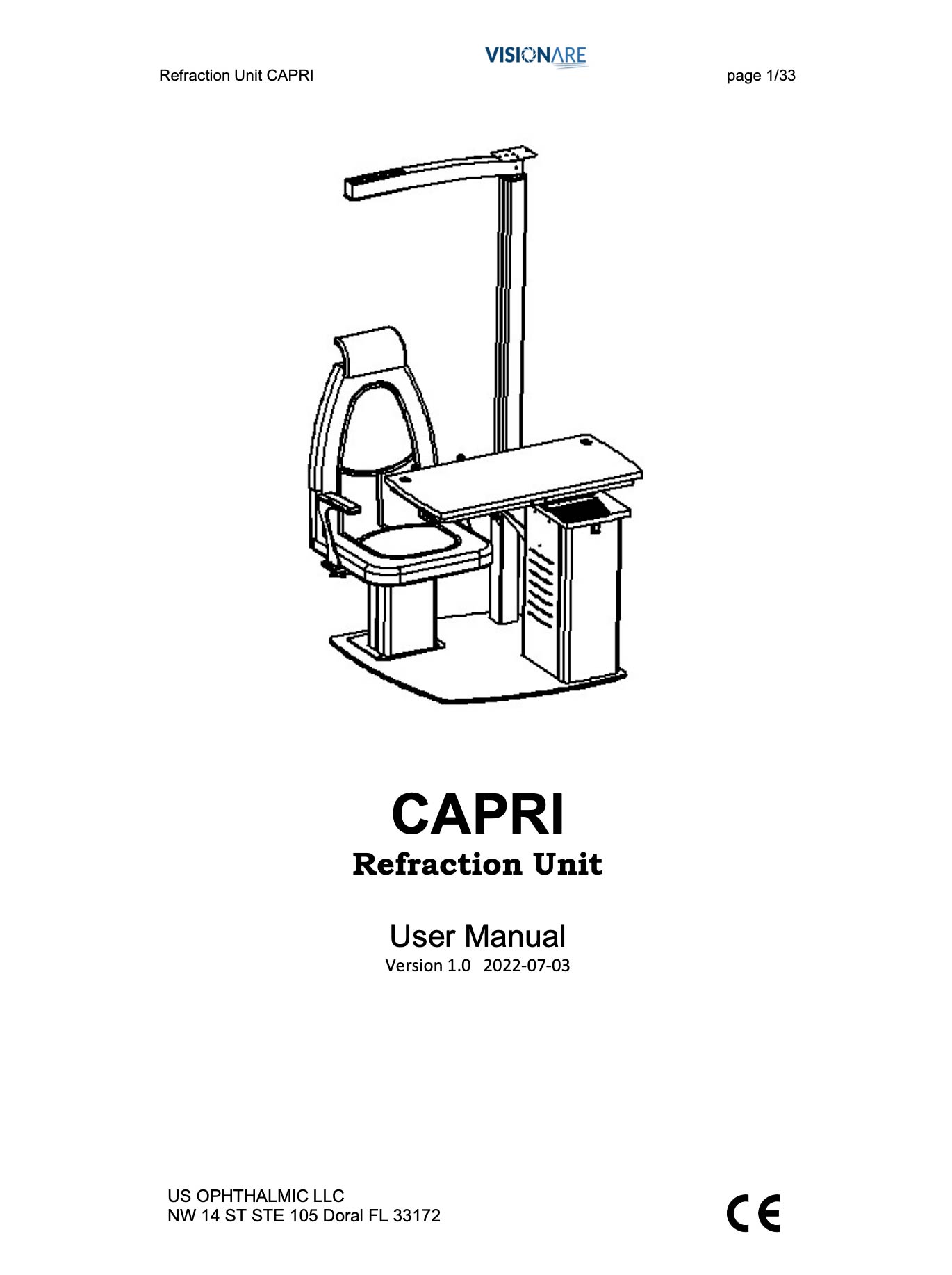

Manuals & Catalogs
