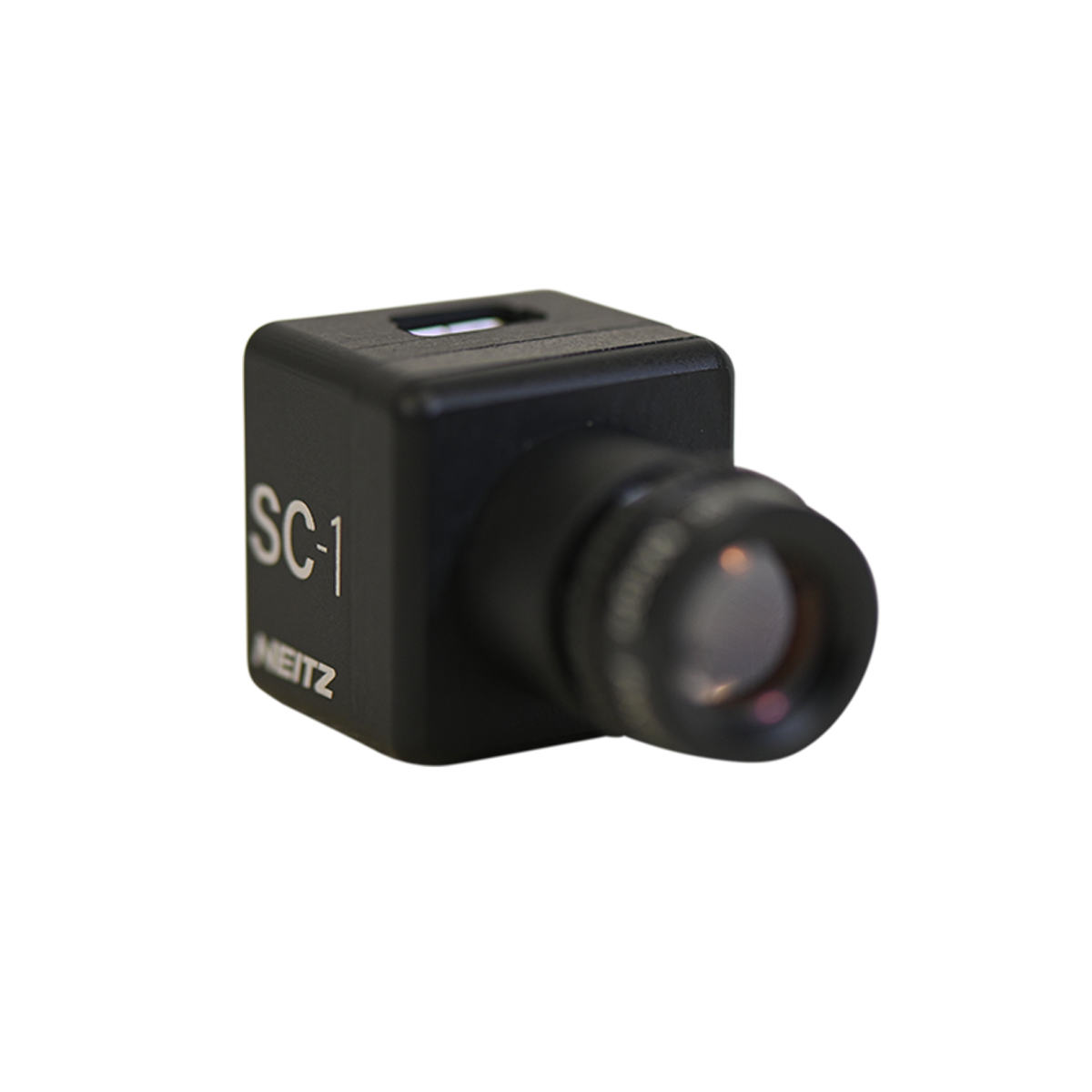

The SC-1 is a top-tier surgical camera designed to complement the BL line of surgical loupes by Neitz. The SC-1 is the result of 50 years of experience in the field of medical optics for ophthalmic practice and surgery. The SC-1 allows users to effortlessly capture high-quality images and videos from their point of view. Streaming live surgeries and preparing materials for conferences and academic meetings is remarkably straightforward with the SC-1.
Captures high-quality images and videos from the surgeon's point of view.
Enables simple and efficient real-time surgical broadcasting.
Backed by half a century of expertise in medical optics and ophthalmic surgery.
Facilitates the preparation of materials for conferences and scientific meetings.
The SC-1 is a top-tier surgical camera designed to complement the BL line of surgical loupes by Neitz. The SC-1 is the result of 50 years of experience in the field of medical optics for ophthalmic practice and surgery. The SC-1 allows users to effortlessly capture high-quality images and videos from their point of view. Live streaming of surgeries and the preparation of materials for conferences and academic meetings is made simple with the SC-1.
2.13 megapixels 1945(H)×1097(V) Pixels
IMX291(Sony) 1/2.8 inches 6.46 mm diagonal
Progressive
Rolling Shutter
MJPEG
USB2.0 (Hi Speed)
VGA 640×480 Pixels: 30fps HD
1280×720 Pixels: 30fps FHD
1920×1080 Pixels: 30fps
1300mV Typical value of the CMOS sensor characteristics
Not required. USB Video Class (UVC). Windows 10
USB Mini-B
Adjustment: Exposure (Auto and Manual), Color Temperature (Auto and Manual), Gain, Saturation, Sharpness, Gamma Correction
Power supply voltage 5.0 V (USB bus powered)
Approx. 200 mA
Brightness, Contrast, Hue, Vividity, Sharpness, Gamma, Gain, White Balance, Backlight Correction
0.8×0.8×0.9 in (20×20×23.4 mm) (without protrusions) / Approx. 0.03 lbs (12 g)
