Luxvision Trial Lens Set TL-266 Hi

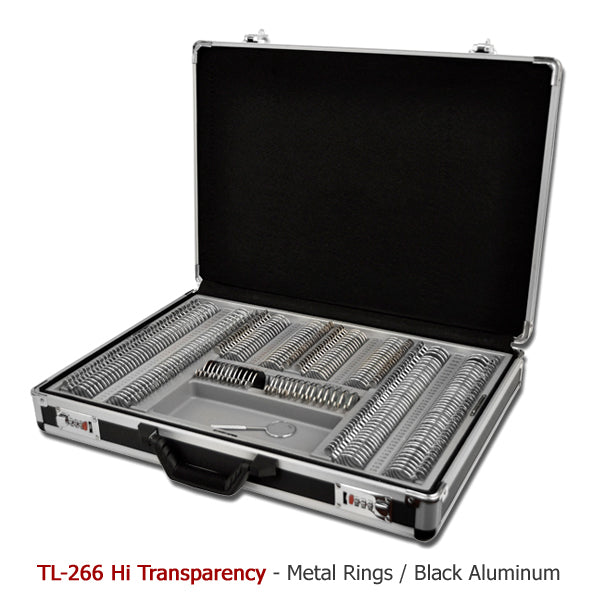

The Luxvision TL-266 Hi features 266 high-transparency glass lenses secured in your choice of metal or anodized color aluminum rims. This sturdy case comes in leather or aluminum with a removable tray, diopter indicators, and a double combination lock for security. Wide ranges of spherical and cylindrical powers, two cross-cylinder lenses, and a variety of accessory lenses will allow you to perform better testing across your entire patient base. This classic form of refraction improves prescription accuracy for patients with low vision in particular, offering a precise vertex distance, which is highly useful for patients with high refractive errors. Similarly, any patient who relies on eccentric vision and needs to move their eyes or head to see around a scotoma can benefit greatly from trial lens refraction.

* Trial Frame Not Included

Talk to a specialist

266 high-transparency glass lenses

Wide range of spherical and cylindrical powers (±0.25D to ±20.00D) with maximum optical quality glass lenses. Enables precise refraction in patients with high refractive errors and low vision.

Complete kit for comprehensive refraction

Includes spherical lenses, cylindrical lenses, cross cylinders, prisms up to 10∆D, color lenses, and specialized accessories. Comprehensive equipment for the complete evaluation of your entire patient base.

Precise vertex distance for high refraction

Trial frame refraction provides exact vertex distance, which is critical for patients with high refractive errors. It is especially beneficial for patients with eccentric viewing and scotomas.

Safety case with double lock

Available in leather or aluminum with a removable tray, diopter indicators, and dual combination lock. Professional equipment protection and organization.

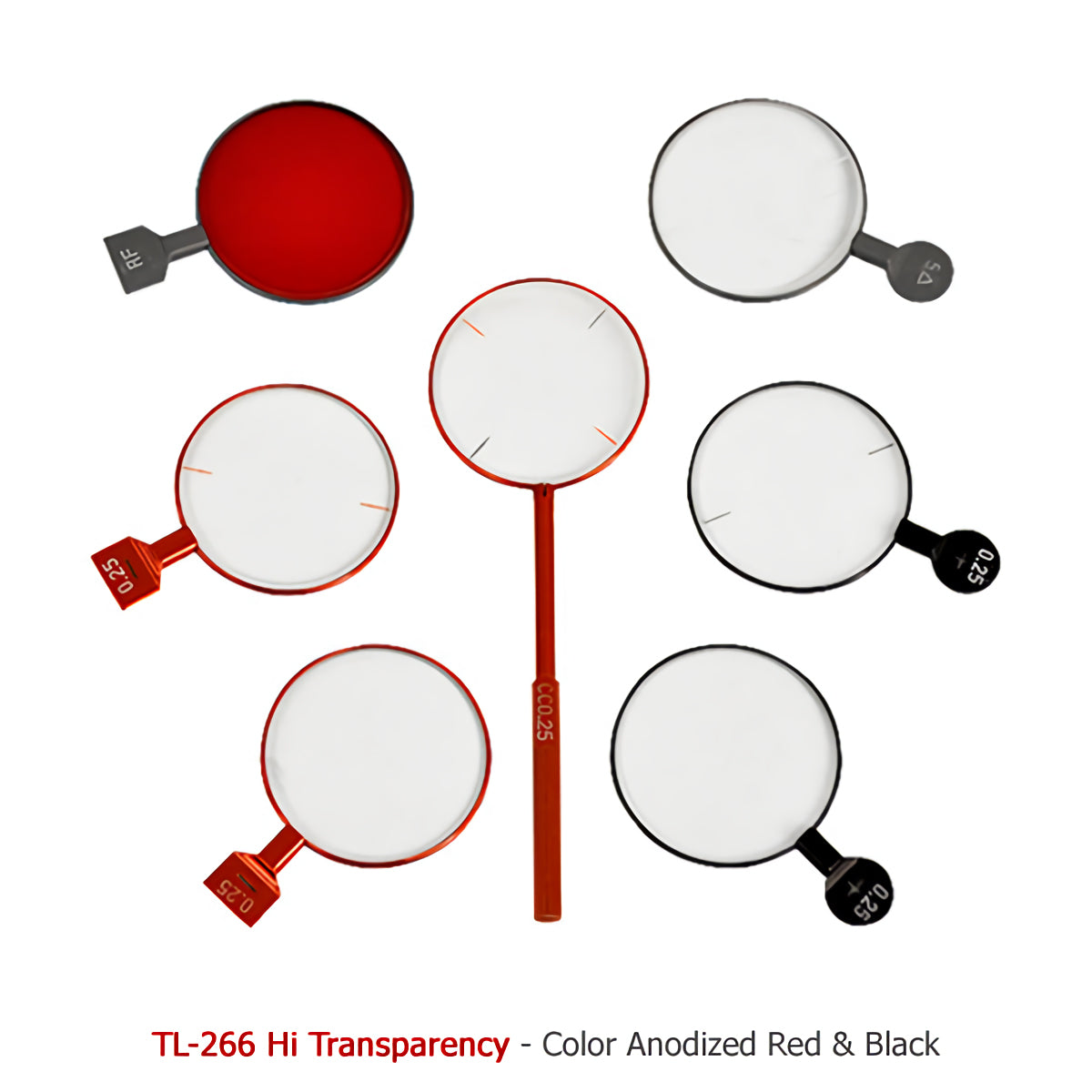

Configure your TL-266 Hi trial lens set to match your style. This trial lens set is available in two case types, leather or black aluminum, both featuring a double combination lock for added security, and rings with a Color Anodize Red & Black finish. Use the configurator to choose your preferred case and instantly preview your combination.

Configure your TL-266 Hi trial lens set

Case

Ring

Color Anodize Red & Black

Your combination
Case · Ring Color Anodize Red & Black

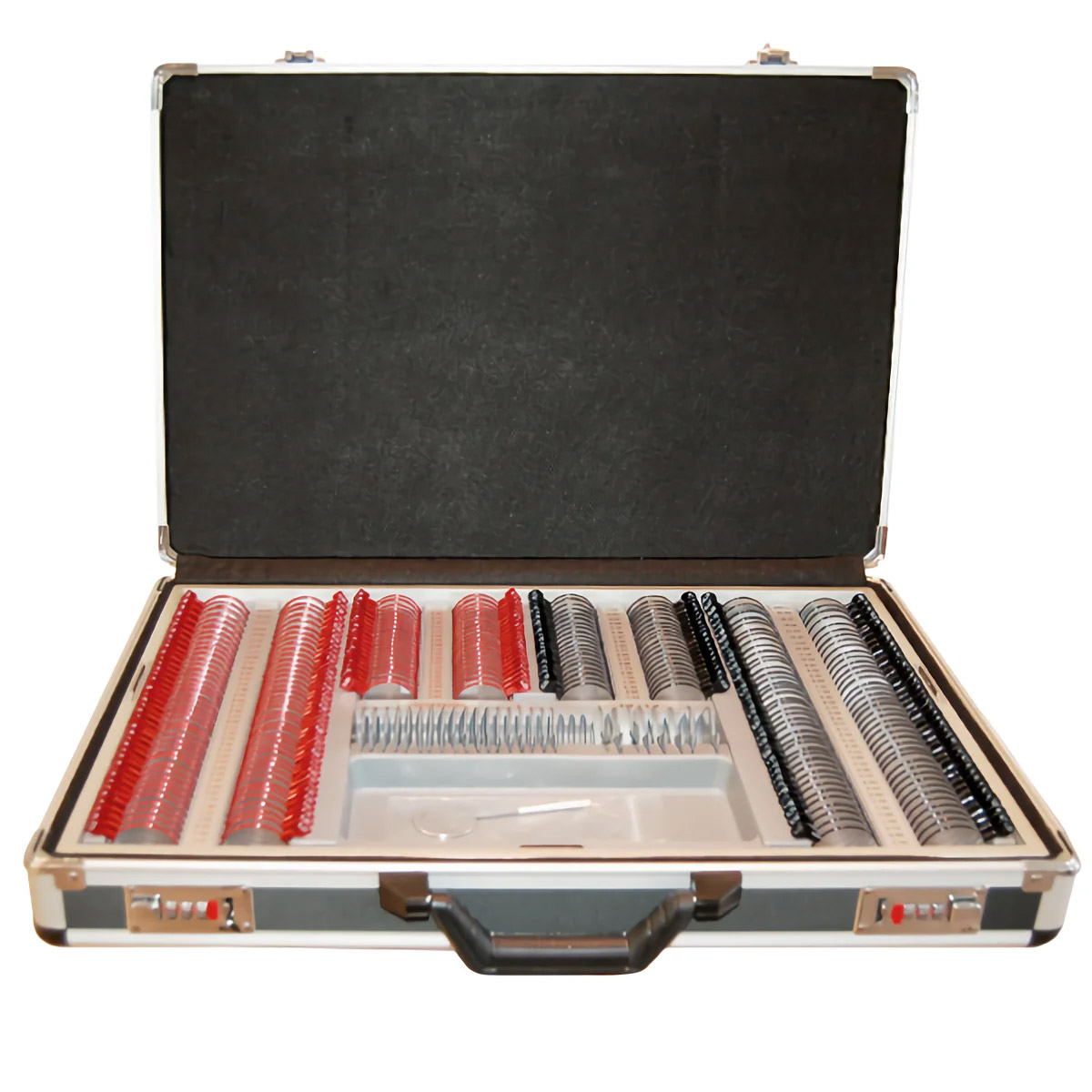

Leather Case + Color Anodize Red & Black RingBlack Aluminum Case + Color Anodize Red & Black Ring

Spheres

The kit includes both concave (-) and convex (+) spherical lenses for examining myopia, hyperopia, and presbyopia. Powers range from ± 0.25 D to ± 20.00 D in steps of 0.25 D.

Cylinders

Examine astigmatism with the positive and negative cylindrical lenses included in the TL-266 Hi. Powers range from ± 0.25 D to ± 6.00 D.

Cross Cylinder Lenses

These lenses will help you examine the degree and axis position of the cylindrical lens when determining astigmatism.

Prisms

With the TL-266 Hi trial lens kit you can perform prism testing of up to 10 ∆D.

Frosted Lens

Use this semi-transparent coverage lens for infants or, outside the office, as an occluder.

Slit Lens

Examine astigmatism by rotating this lens in front of the eye.

Color Lenses

The TL-266 Hi includes red, green, blue, yellow, and dark brown color lenses for examining color sensitivity. These lenses are especially useful for patients with cataracts, as well as in color blindness testing.

Additional Lenses

The TL-266 Hi also includes Maddox, plano, occluder, and pinhole lenses.

Safety Case

Choose between a leather or aluminum case with the TL-266 Hi. Both designs feature a double combination lock for added security.





Detailed Specifications

Concave Sphere (-) Convex Sphere (+) Concave Cylinder (-) Convex Cylinder (+) Prism Accessories
Diopter Qty. Diopter Qty. Diopter Qty. Diopter Qty. Value Qty. Element Qty.
0.25 2 5.25 2 0.25 2 5.25 2 0.25 2 Maddox 1
0.50 2 5.50 2 0.50 2 0.50 2 1.00 2 Fine Cross Cylinder 1
0.75 2 5.75 2 0.75 2 0.75 2 2.00 2 Pinhole 2
1.00 2 6.00 2 1.00 2 1.00 2 3.00 2 Occluder 1
1.25 2 6.50 2 1.25 2 1.25 2 4.00 2 Slit 1
1.50 2 7.00 2 1.50 2 1.50 2 5.00 1 Red Filter 1
1.75 2 7.50 2 1.75 2 1.75 2 6.00 1 Green Filter 1
2.00 2 8.00 2 2.00 2 2.00 2 8.00 1 Cross Cylinder 1
2.25 2 8.50 2 2.25 2 2.25 2 10.00 1 Plano Lens 1
2.50 2 9.00 2 2.50 2 2.50 2 Frosted Lens 1
2.75 2 9.50 2 2.75 2 2.75 2 Double Prisms 1
3.00 2 10.00 2 3.00 2 3.00 2
3.25 2 11.00 2 3.25 2 3.25 2
3.50 2 12.00 2 3.50 2 3.50 2
3.75 2 13.00 2 3.75 2 3.75 2
4.00 2 14.00 2 4.00 2 4.00 2
4.25 2 15.00 2 4.50 2 4.50 2
4.50 2 16.00 2 5.00 2 5.00 2
4.75 2 18.00 2 5.50 2 5.50 2
5.00 2 20.00 2 6.00 2 6.00 2
