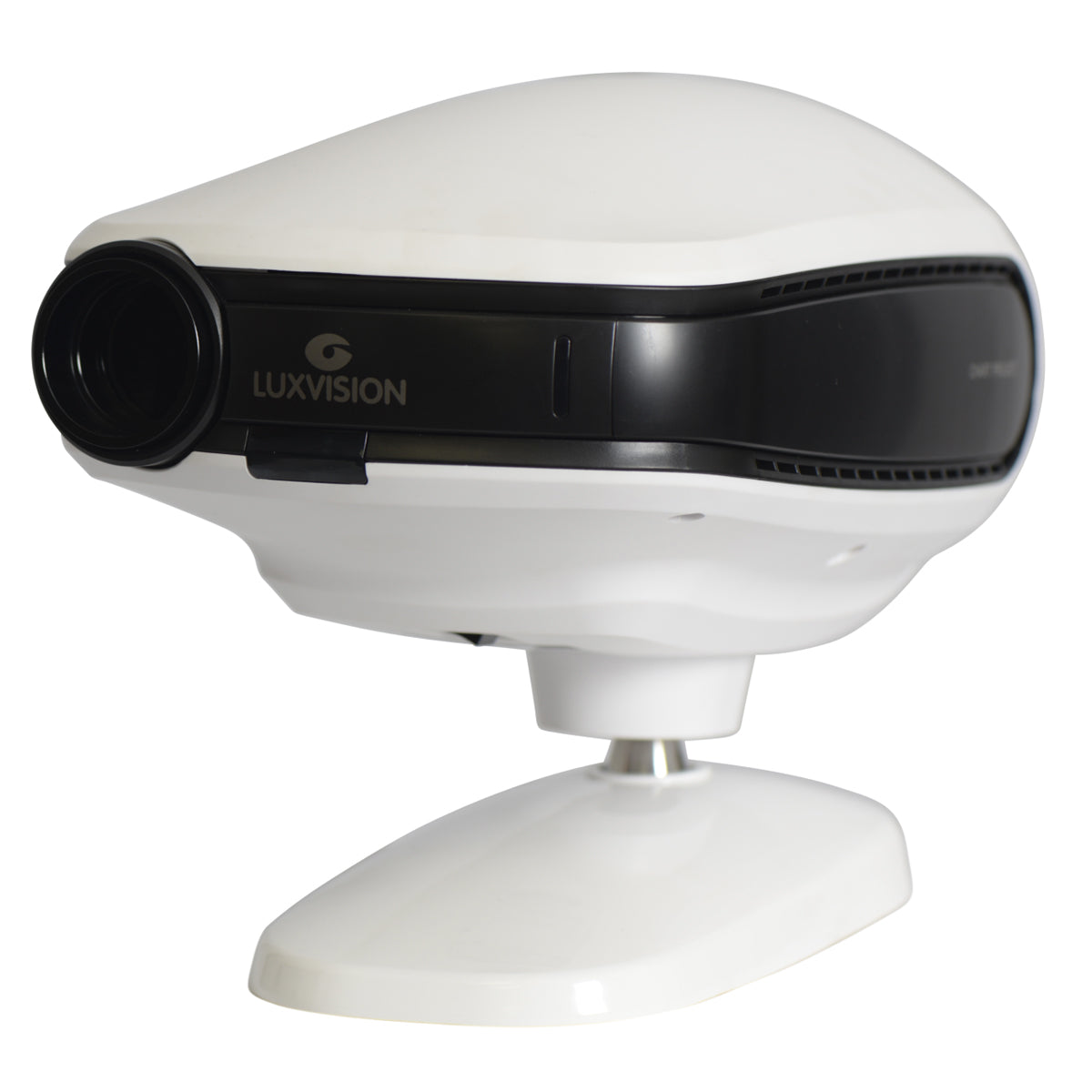

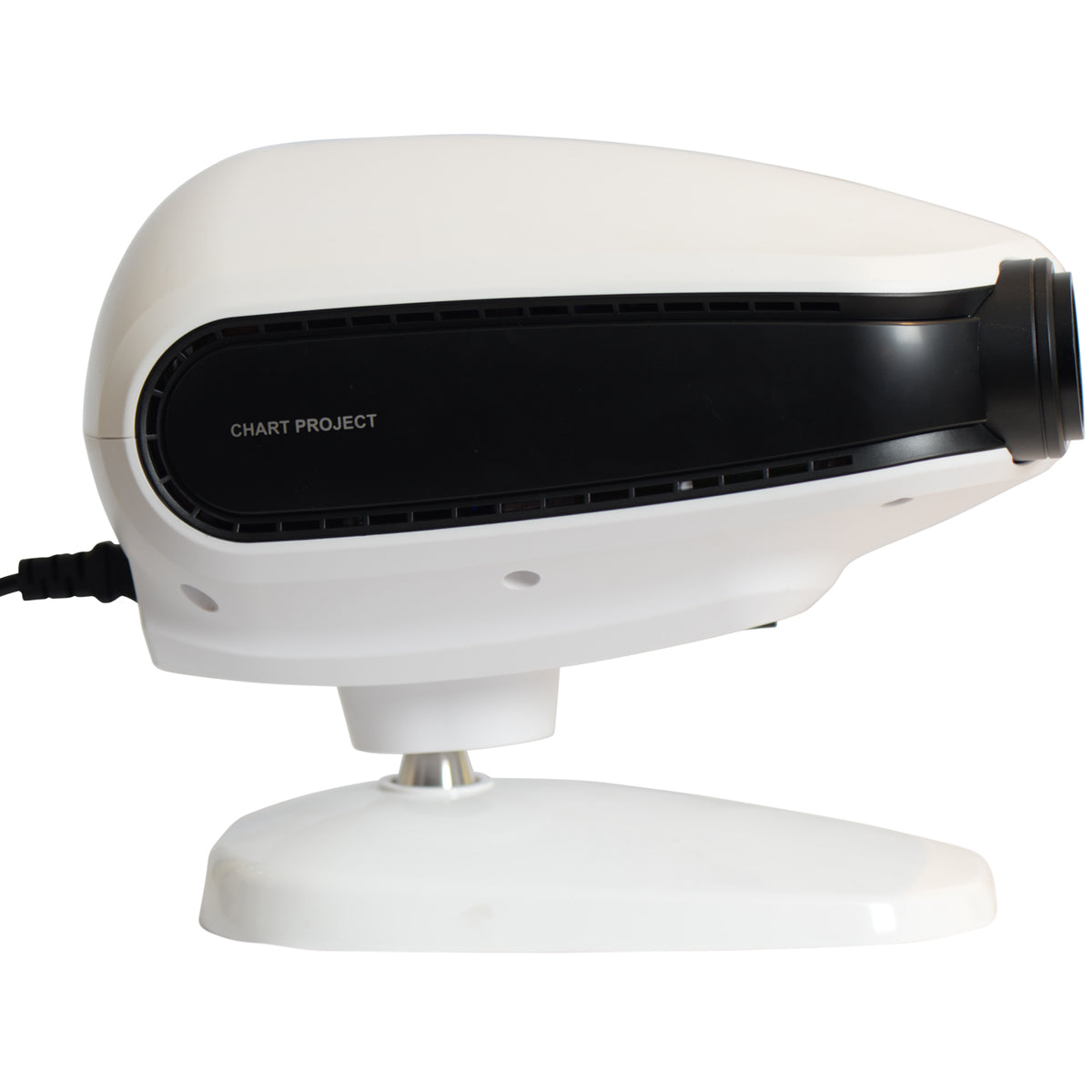

Luxvision Chart Projector LCP-7800

The Luxvision LCP-7800 Chart Projector features outstanding capabilities. Bright. Convenient. The Luxvision LCP-7800 high-resolution Chart Projector offers a highly versatile programmable remote control that puts complete control at your fingertips. Fast and efficient refraction is as simple as pressing a button. Randomly select any of the 41 test charts or use the programming function to create two user-defined chart sequences. You will also be amazed by the difference LED lighting can make. The semi-permanent lifespan LED light source is brighter and clearer than conventional bulb lighting. All this, plus red/green filters and polarizers, 34 masks, and an attractive design make the LCP-7800 a perfect choice for any practice.

Talk to a specialist

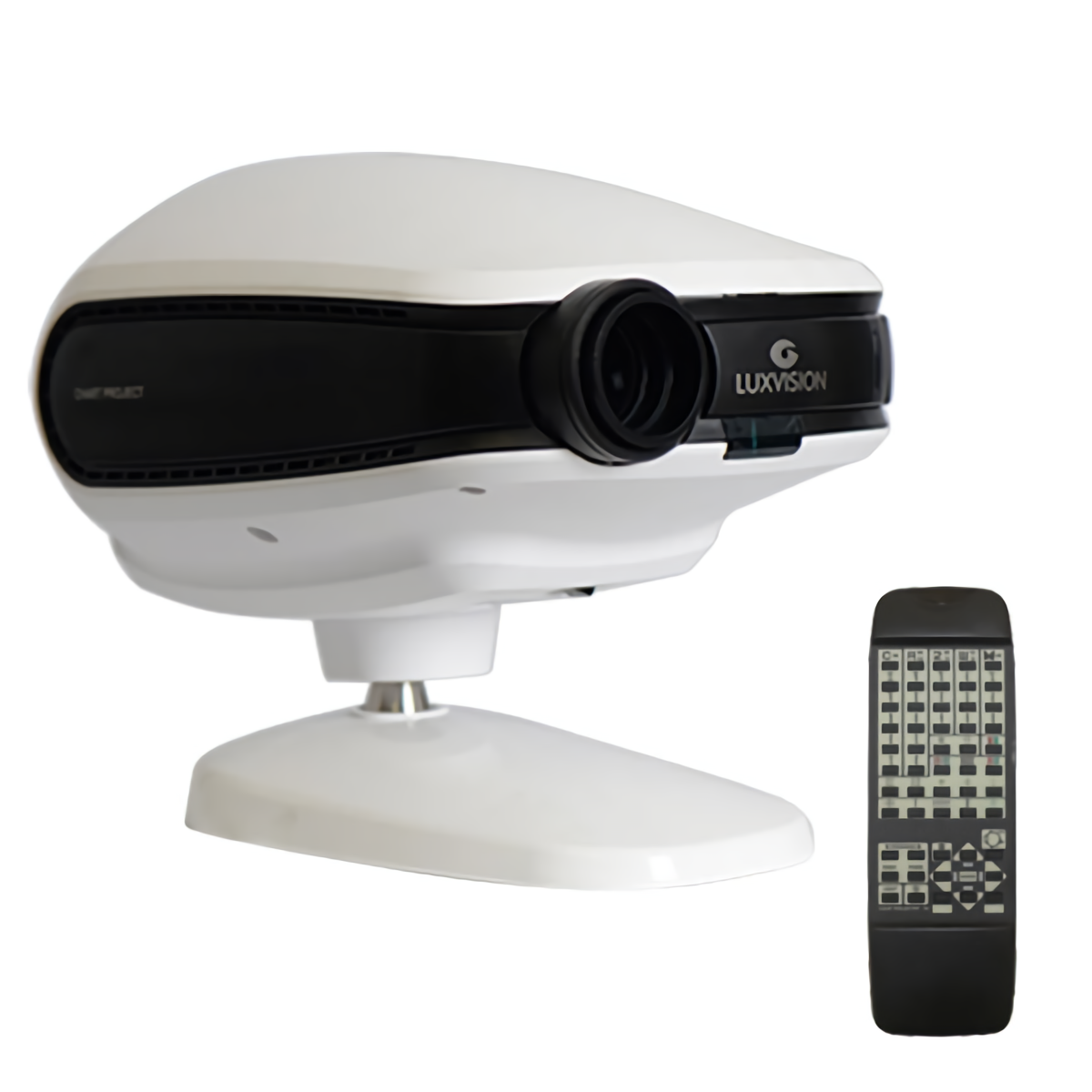

Versatile programmable remote control

The programmable remote control allows randomly selecting any of the 41 test charts or creating two custom sequences. Efficient refraction is as simple as pressing a button.

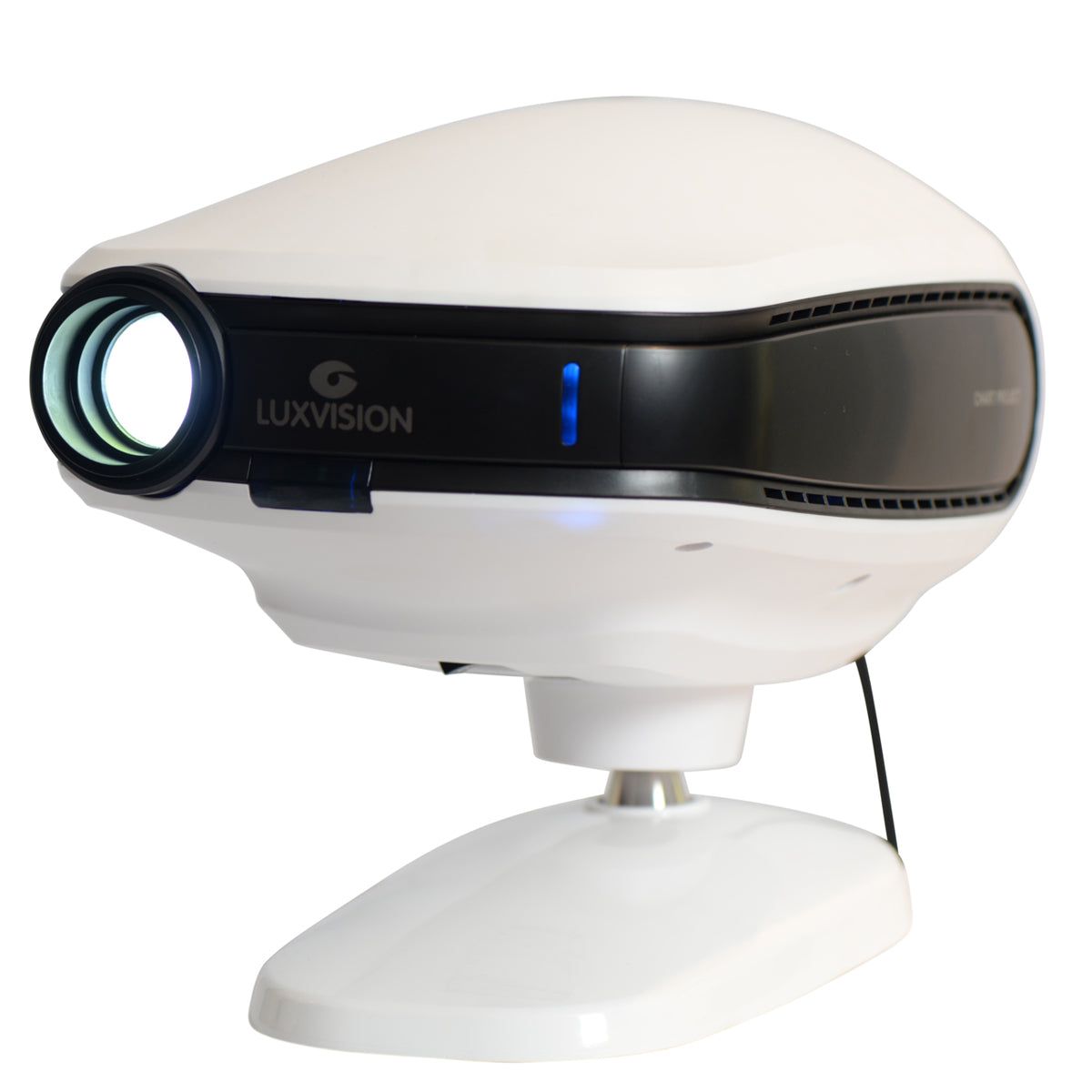

Long-life LED illumination

Semi-permanent LED light source that delivers greater brightness and superior clarity compared to conventional bulbs. Provides sharper images and eliminates the need for frequent replacements.

Filters and 34 masks included

Includes red/green filters and polarizers for specialized testing. The 34 masks allow isolating horizontal lines, vertical lines, or individual characters according to clinical need.

Digital network integration capability

Connects with digital refractor, lensmeter, and autorefractor to form an integrated digital practice. Enables complete visual examinations from preliminary testing through to the final prescription.

Numerous Customizable Charts and Sequences

The LCP-7800 incorporates 41 examination charts that can be selected randomly or integrated into two user-defined custom sequences. This flexibility allows the workflow to be adapted to the professional’s preferences and streamlines visual assessments.

Masking and Integrated Filters

The system includes 34 masks that allow isolating horizontal lines, vertical lines, or individual characters for specific testing. It also features Red/Green and Polarized filters, ideal for binocular balance testing, stereoscopic vision, and other specialized evaluations.

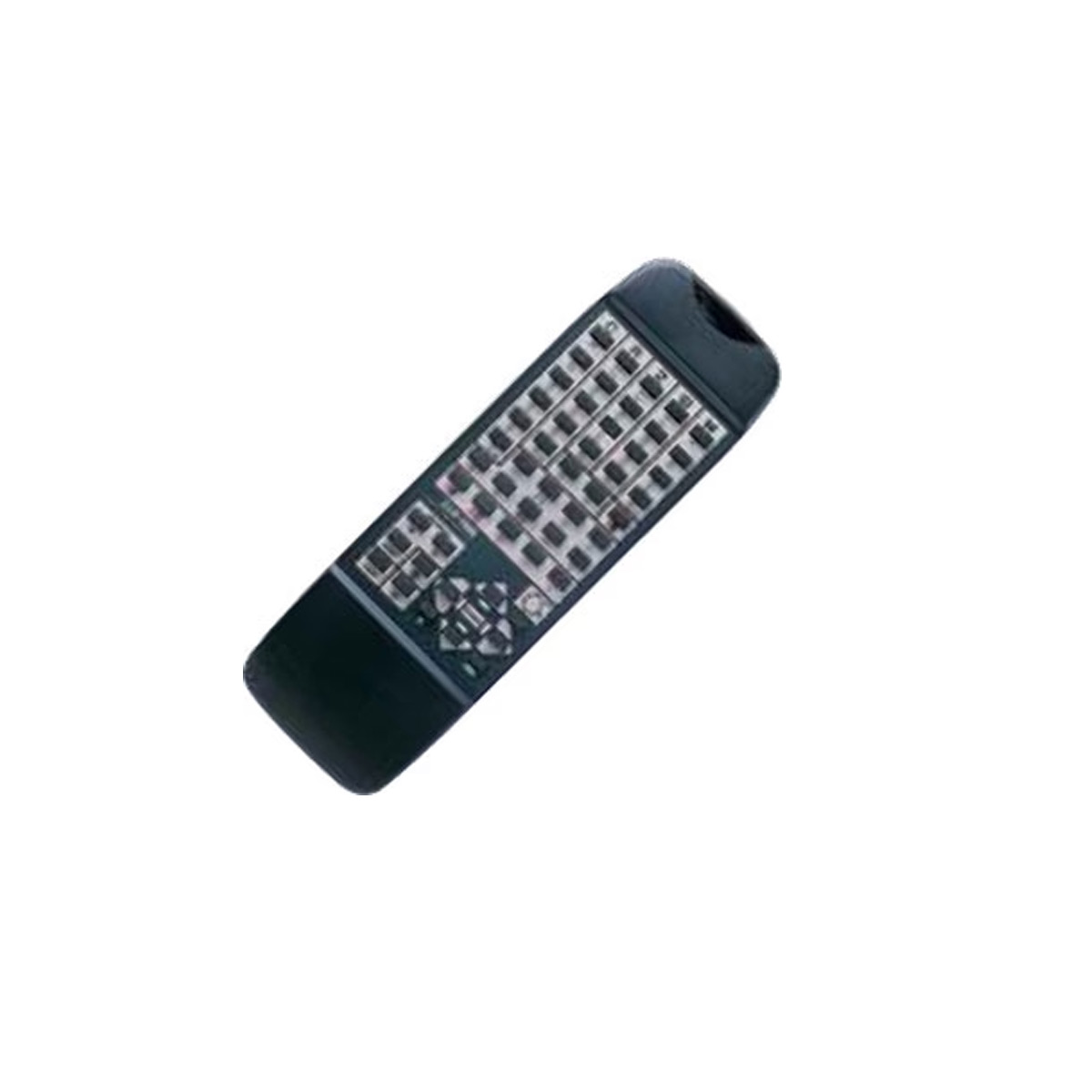

Programmable Remote Control

Thanks to its ergonomic and fully programmable remote control, the professional can quickly access all the device’s functions. Chart and test selection is performed in a fast and intuitive manner, improving efficiency during the visual examination.

Long-Lasting LED Light Source

The 4W LED illumination provides brighter, sharper, and more uniform images than conventional projectors with traditional lamps. Furthermore, its semi-permanent lifespan significantly reduces maintenance and replacement costs.

Integration for a Digital Practice

The LCP-7800 can connect with other digital diagnostic instruments, such as refractors, lensmeters, and autorefractors/keratometers, enabling a fully digital workflow from pre-examination to final prescription.

Specifications

Charts

41 charts 34 masks, Red/Green filters and Polarization
Projection Distance

2.5~8m (Optional: 8m screen)
Average Chart Rotation Speed

0.15 sec
Projection Magnification

30x at 5m
Energy Saving

Automatic Shutdown (10min)
Program

2 programs with a maximum of 30 charts each
Tilt Angle

15 °
Power Supply

100-120V@50Hz 200-240V@60Hz
Power Consumption

Max 0.6A
Lamp

LED 4W
Dimension

10.63(W) x 7.16(D) x 9.05(H) in (270(W) x 182(D) x 230(H) mm)
Weight

7.70lb / 3.5kg

Luxvision Chart Projector LCP-7800

Versatile programmable remote control

Long-life LED illumination

Filters and 34 masks included

Digital network integration capability

Integration for a Digital Practice

Specifications

Charts

Projection Distance

Average Chart Rotation Speed

Projection Magnification

Energy Saving

Program

Tilt Angle

Power Supply

Power Consumption

Lamp

Dimension

Weight

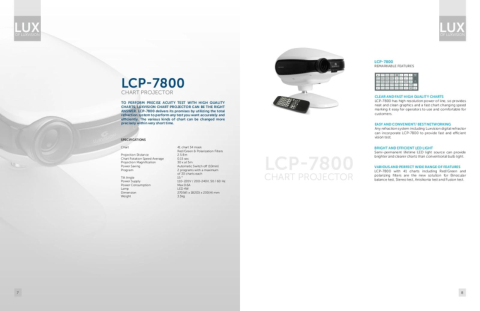

Manuals & Catalogs
