The TFK-10 62-70 5pc Set is suitable for eye examinations in optical shops, hospitals, and any location where vision testing is performed. The TFK-10 62-70 5pc Set is easy to use, lightweight, and best of all, cost-effective.
The TFK-10 62-70 5pc Set is suitable for eye examinations in optical shops, hospitals, and any location where vision testing is performed. The TFK-10 62-70 5pc Set is easy to use, lightweight, and best of all, cost-effective.
Adjustable PV range across 10 specifications from 52mm to 70mm, accommodating different interpupillary measurements for each patient to ensure precise examinations.
Axial calibration on each disc from 165° to 25° with graduation lines every 5°. Allows exact axis positioning for astigmatism correction.
The lenses rotate fully around the optical axis within the frame, facilitating rapid adjustments during the refractive examination without interruptions.

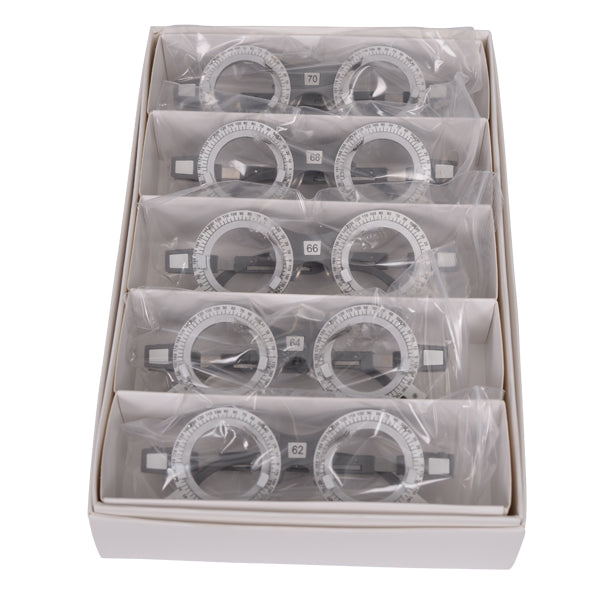

Lightweight and cost-effective design ideal for optical shops and hospitals. Includes 5 complete pieces for performing eye examinations in a practical and efficient manner.
Features of the TFK-10 62-70 Set (5 pieces):
▪ Adjustable PD range (10 specifications): 52 mm, 54 mm, 58 mm, 60 mm, 62 mm, 64 mm, 66 mm, 68 mm, 70 mm.

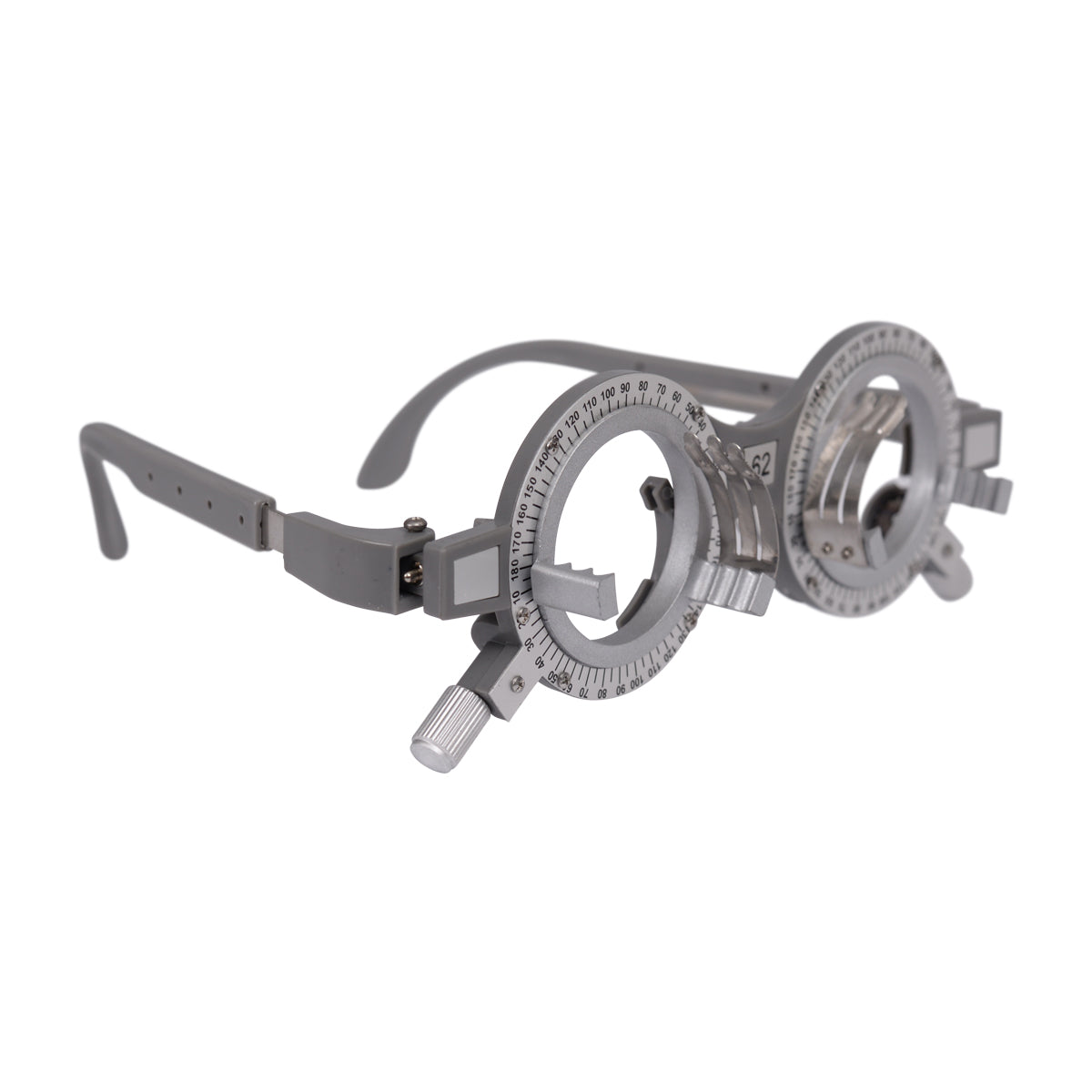

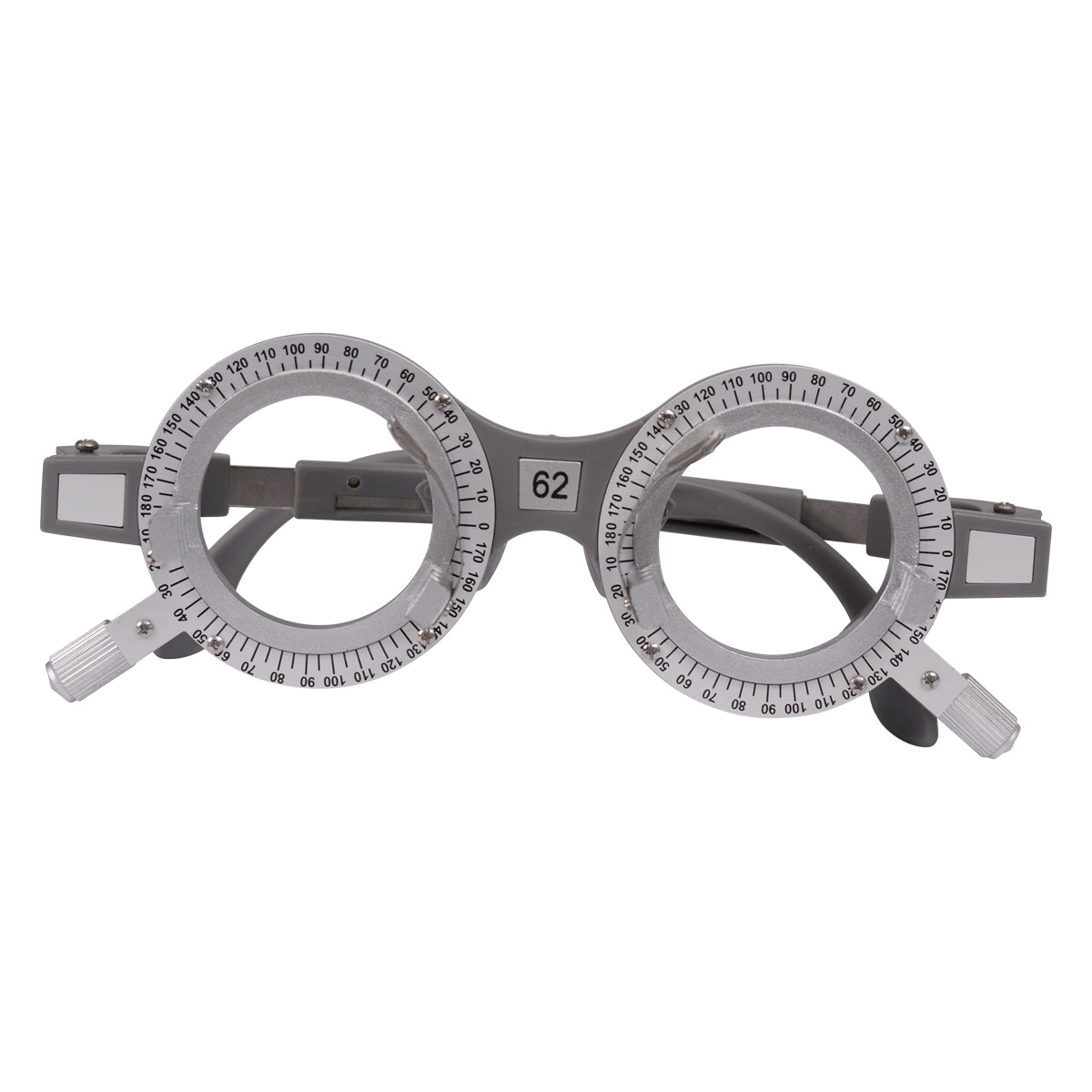

▪ Axial calibration on each disc: axis graduation line from 165° ~ 0° ~ 180° ~ 25°, running counterclockwise along the frame axis graduation line, with an interval of 5° between lines.
▪ The lens rotates around the optical axis within the frame: 360°.

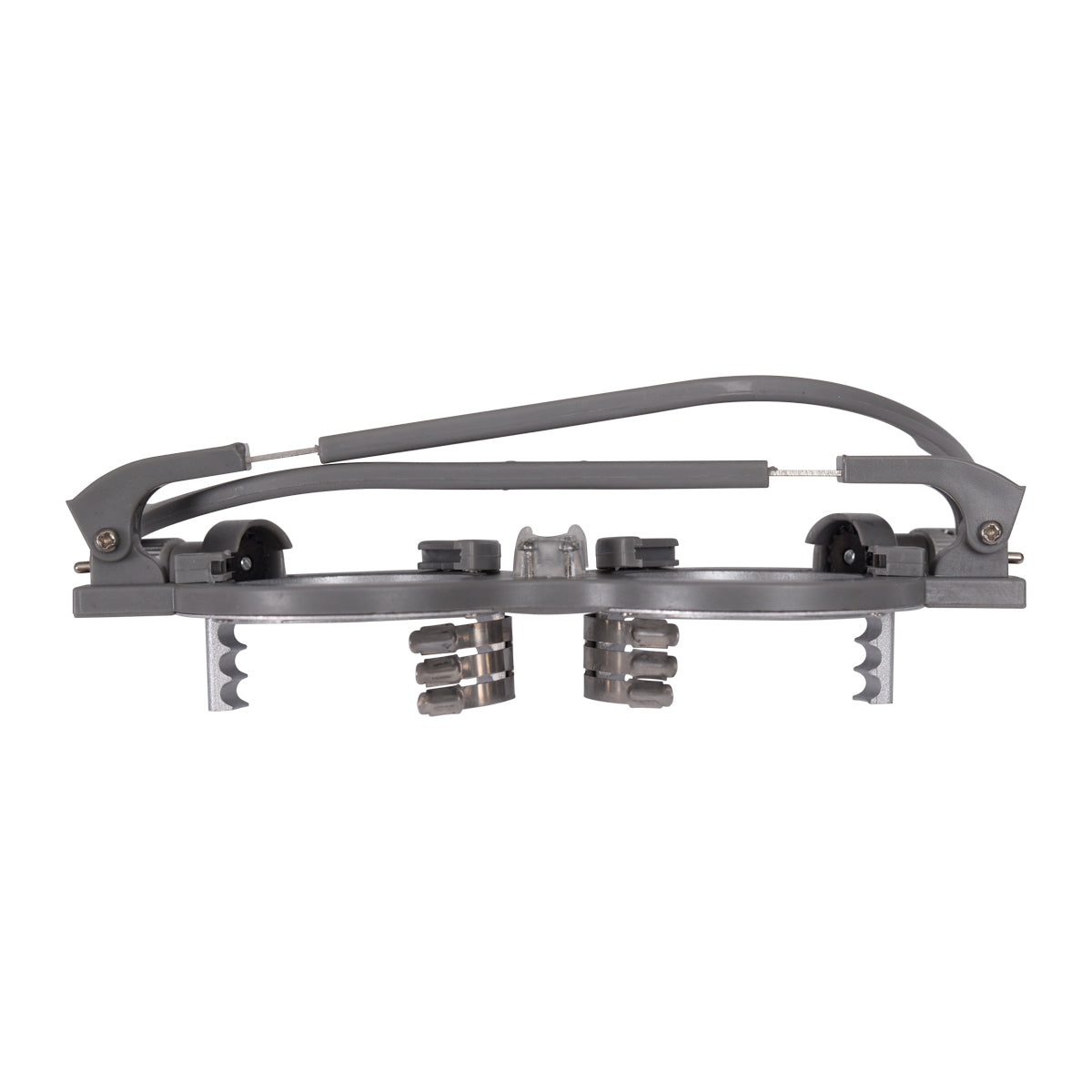

▪ Adjustment range for the length of the left or right temple of the frame: 90 mm ~ 99 mm; the length of each trial frame specification increases by 1 mm increments.
52mm, 54mm, 58mm, 60mm, 62mm, 64mm, 66mm, 68mm, 70mm
165º ~ 0º ~ 180º ~ 25º axis graduation line runs counterclockwise along the lens frame axis graduation line, with a graduation line interval of 5º
360º
90mm ~ 99mm, the trial frame specification length increases by 1mm successively
