Huvitz Visual Acuity Chart HDC-7000

The HDC-7000 delivers high performance and multifunctional features. As the latest advancement in LCD chart systems, the HDC-7000 provides maximum versatility and adaptability. Its high-quality performance and multifunctional visual acuity testing software make the HDC-7000 stand out.

These high-resolution charts and images are compatible with a wide variety of LCD displays available on the market and work seamlessly with the easy-to-use Huvitz digital refraction systems: HDR-7000, HDR-9000, and CDR-3100.

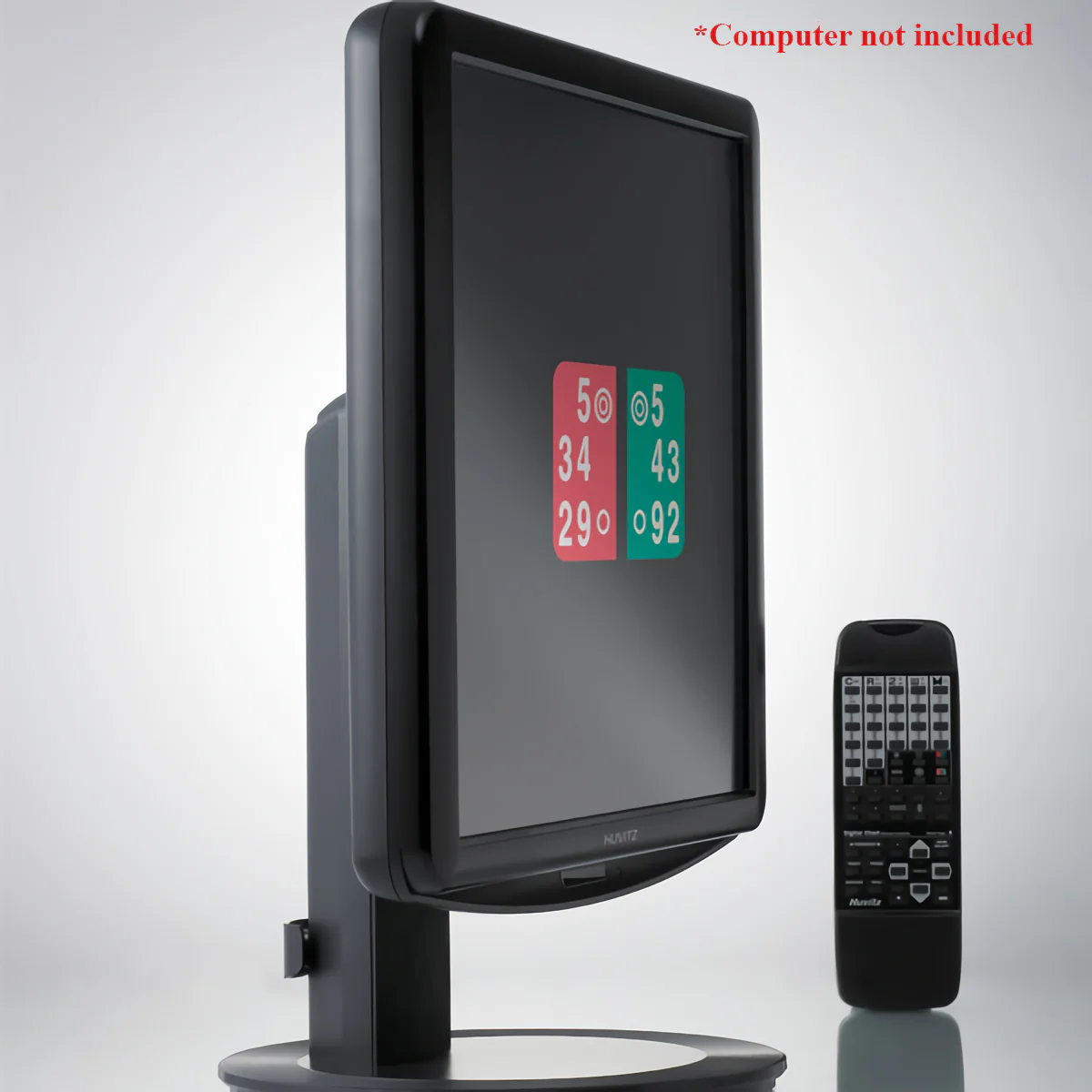

Computer shown in images not included.

Talk to a specialist

Larger LCD screen than previous models

The HDC-7000 offers a design alternative with improved visualization. This versatile solution is compatible with 17″, 19″, 20″, 23″, 24″, 25″, 30″, 31″, and 32″ LCD monitors.

Excellent options across multiple charts

The 41 standard charts include binocular balance, aniseikonia, stereopsis, and binocular fusion tests.

Smart charts with random display function

The random display function prevents patients from memorizing chart content and therefore does not affect the prescription.

Chart programming function

For added convenience, the most frequently used charts can be programmed. In fact, the entire examination can be performed using only a single button on the remote control.

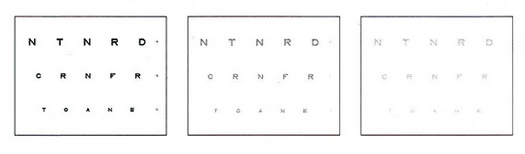

Chart Contrast Adjustment
Thanks to built-in contrast adjustment alternatives, the HDC-7000 enables you to pinpoint the most accurate prescription.

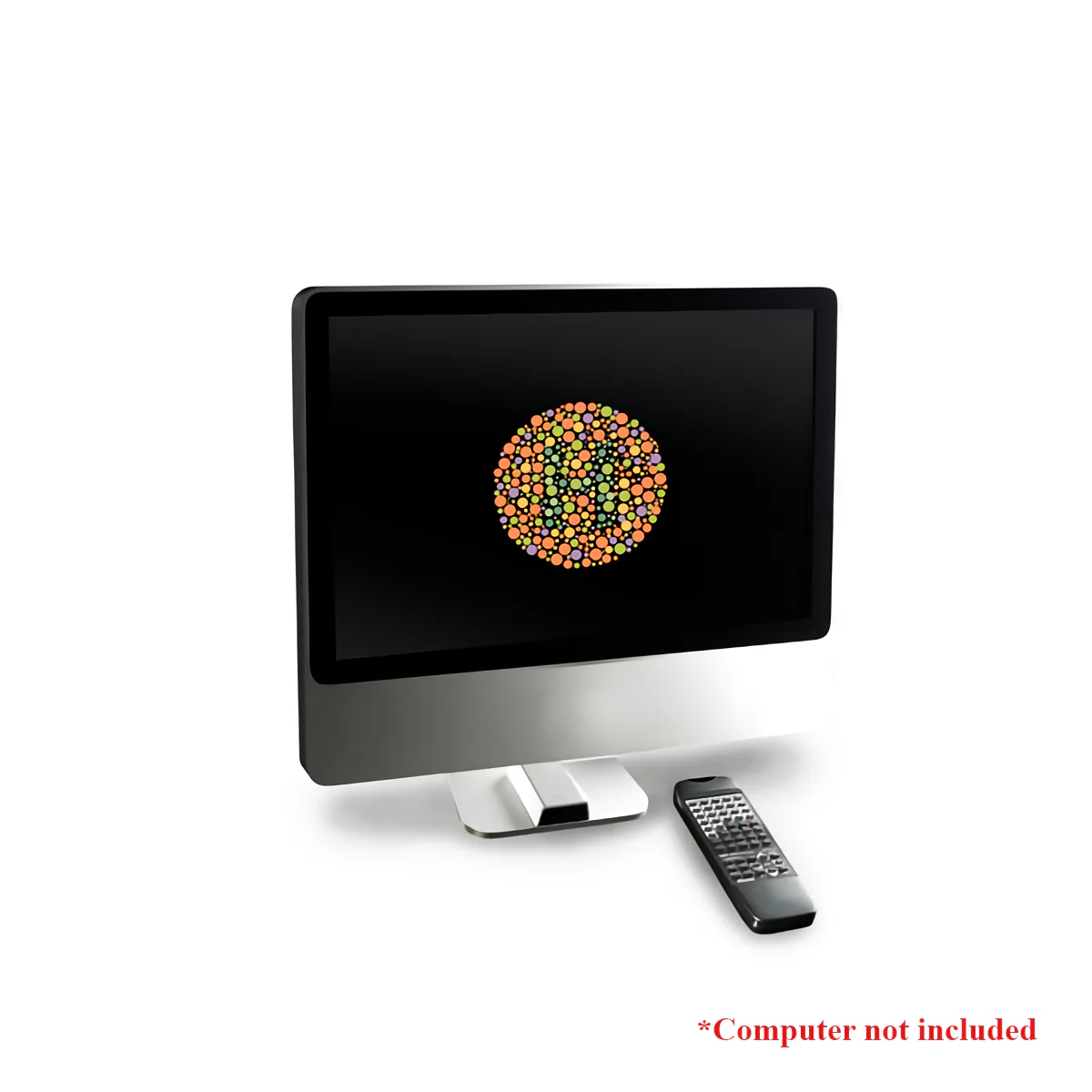

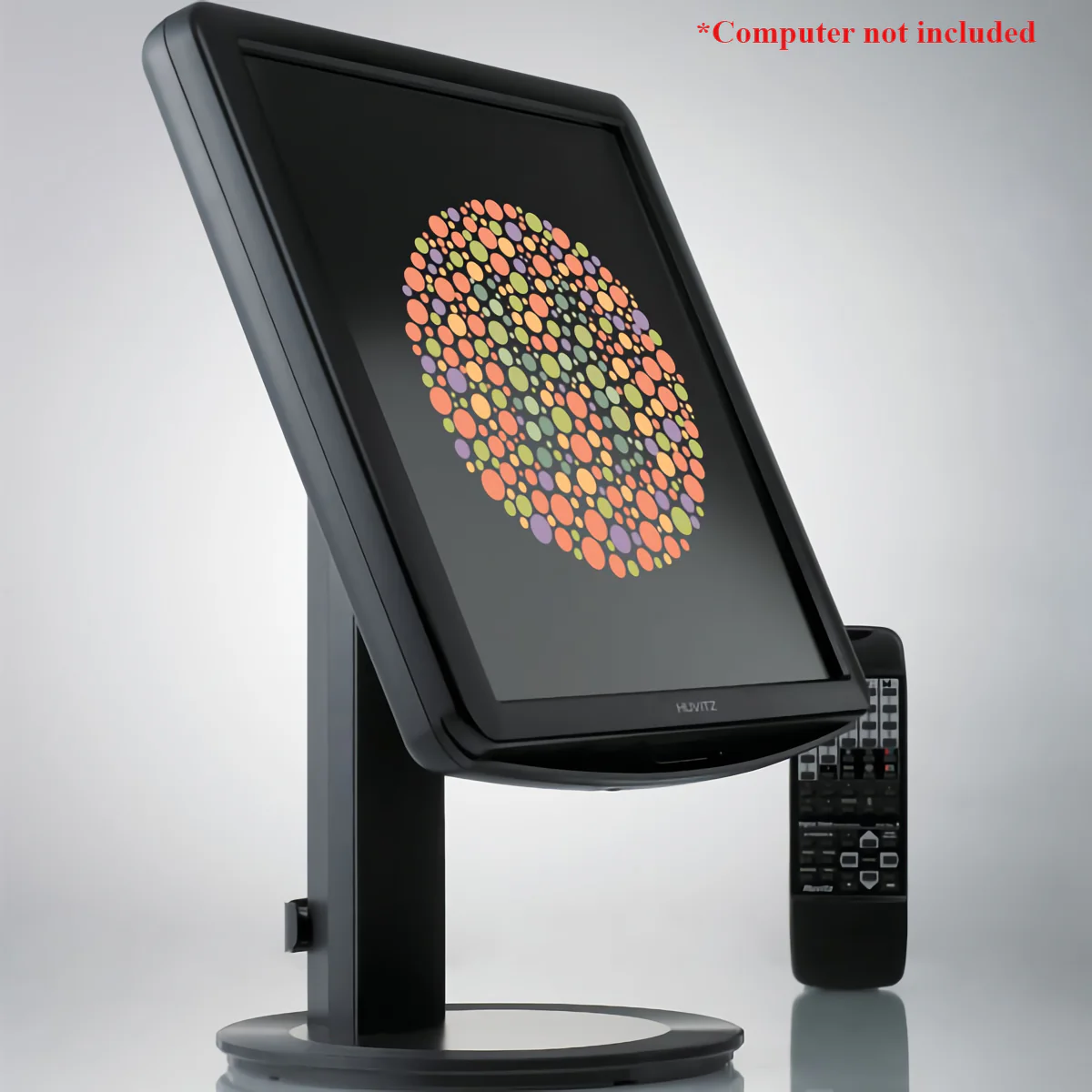

Image Gallery

Also available are color blindness charts and images designed for patient education. You can even create your own galleries by adding images through a simple “copy and paste” function.

Huvitz Compatibility

El HDC-7000 is compatible with the Huvitz digital refraction systems HDR-7000 and CDR-3100, which are easy to use. A simple connection allows you to start using the chart immediately.

More Precise Distance Adjustment

The HDC-7000 offers precise distance settings, allowing you to maintain the current layout and configuration of your equipment.
(8~20 ft in 0.5 ft increments / 2.5~6 m in 0.1 m increments)

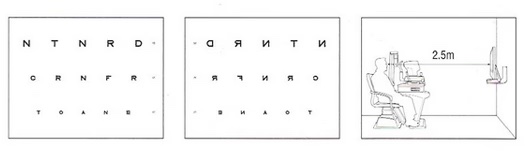

The HDC-7000 is Compatible with Small Spaces

The HDC-7000 enables use in small rooms thanks to the mirror display function.

Chart Versatility

The high-resolution charts and images of the Huvitz HDC-7000 are compatible with a wide variety of LCD screens available on the market.

Greater Adaptability with Red/Green Color Adjustment

Each LCD monitor has its own display settings. The HDC-7000 offers a red/green color adjustment function to provide more vivid and extremely clear colors, helping to achieve a more accurate prescription.

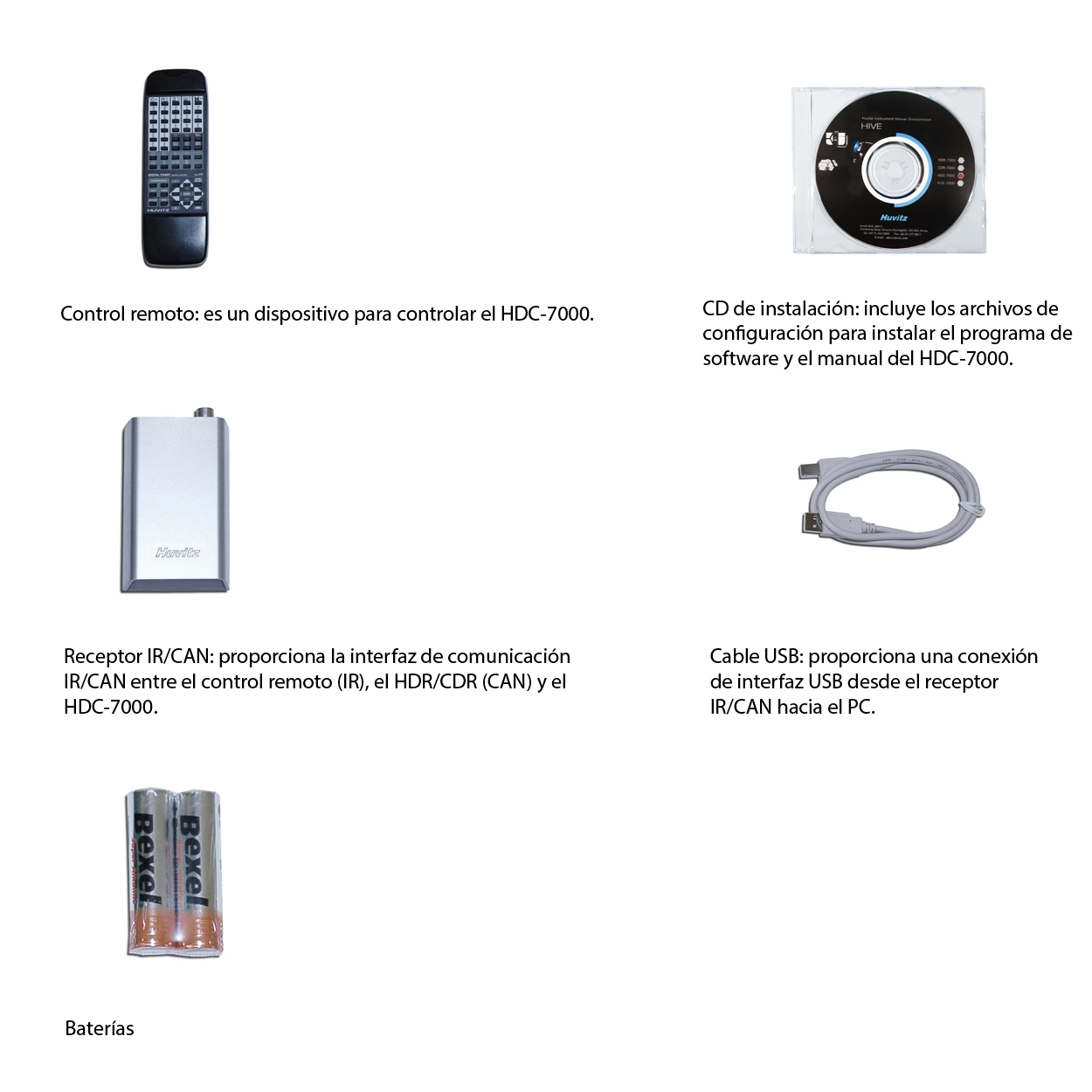

The product includes only: IR receiver, remote control, and software.

Specifications

Mask

Line (Horizontal) / Column (Vertical) / Single Optotype
Control

Controlled via remote control with infrared communication
Red / Green Chart

Adjustable color depth
Test Distance

From 2.5 to 6 m (0.1 m increments) / from 8 to 20 feet (0.5 feet increments)
LCD Compatibility

17", 19", 20", 23" and 24"
Operating System

Windows 2000 / Windows XP / Windows Vista
Data Transmission

Connected to PC [USB] Connected to HDR/CDR [CAN]
Chart Type

3 types in decimal or fractional system in meters or feet
Total File Size on Disk

100MB
Remote Control

2.56 in / 65 mm (W.) × 7.68 in / 195 mm (L.) × 0.79 in / 20 mm (H.) 0.35 lb / 0.16 kg (Standard option)
Receiver

2.01 in / 51 mm (W.) × 3.15 in / 80 mm (L.) × 0.83 in / 21 mm (H.) 0.10 lb / 0.04 kg (Standard option)
Power Supply

5V, 100mA, 0.5W
Wall Mount

9.45 in / 240 mm (W.) × 1.004 in / 25.5 mm (D.) × 9.05 in / 230 mm (H.) 6.38 lb / 2.9 kg Custom for iMac (Optional)
Designs and specifications are subject to change without prior notice for improvement purposes.
