Huvitz Slit Lamp HS-7000

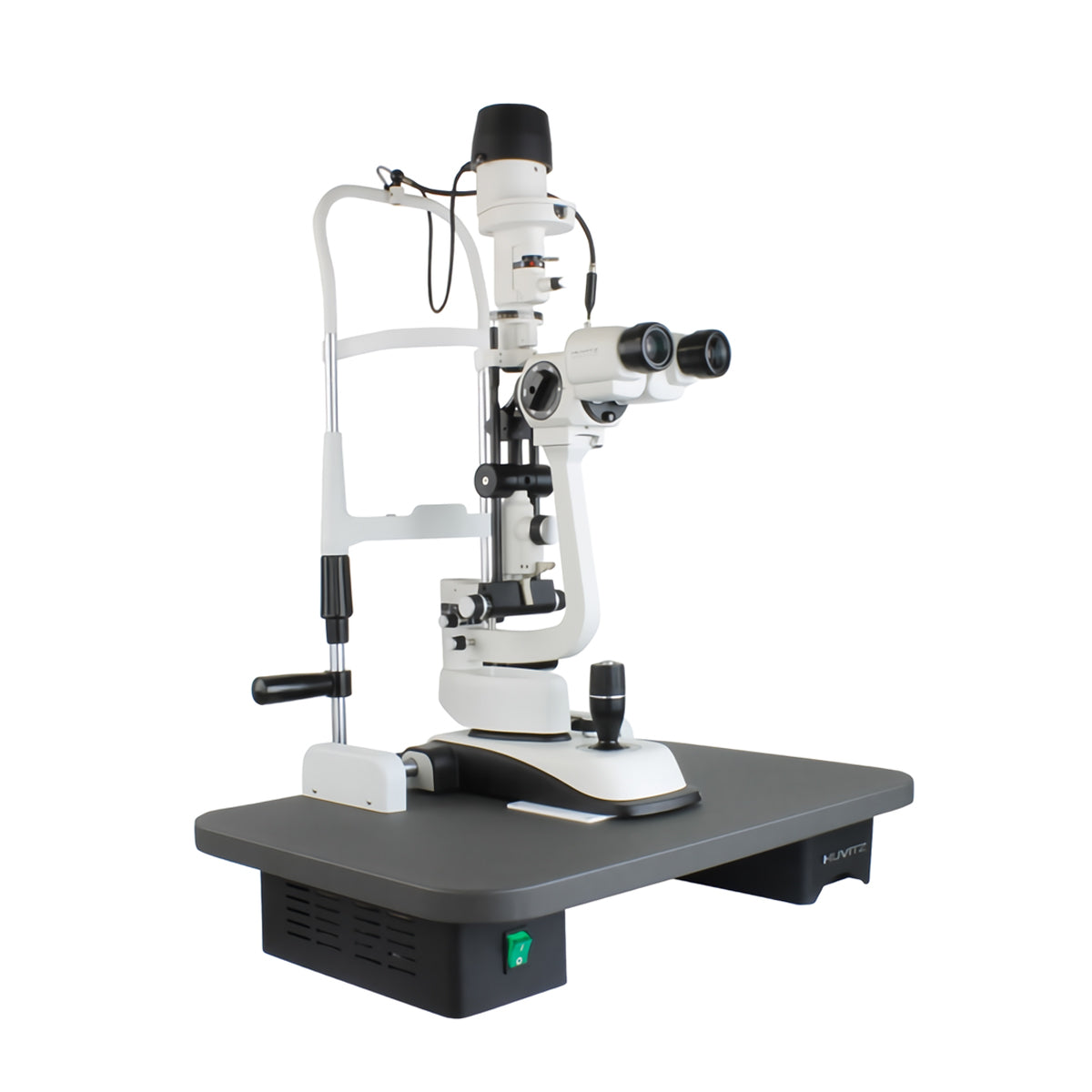

The HS-7000 Slit Lamp Microscope offers a high-end optical system, chosen by experienced industry professionals for precise, comfortable, and reliable visualization during ocular examination. It features Haag-Streit-style tower illumination, a Galilean convergent binocular optical system, and a 5-step drum magnification system: 6x, 10x, 16x, 25x, and 40x, providing great versatility for different clinical needs. Its wide field of view, 12.5x eyepieces, and optional 10x eyepieces allow for clear and detailed observation. In addition, it incorporates continuous slit height from 0.3 mm to 14 mm, continuous slit width from 0 mm to 14 mm, continuous slit rotation from 0° to 180°, and five degrees of inclination for greater diagnostic flexibility. It also includes five integrated filters, among them a yellow filter, an omnidirectional joystick with a trigger, and a durable, high-quality design. With the HS-7000, see the difference in precision, performance, and clinical comfort.

Microscope

Huvitz invites you to compare their slit lamps with those of the competition to discover the difference in clarity, aberration, and overall quality. The company’s high-end slit lamps offer excellent zoom ratios and an outstanding field of view (FOV).

Magnification Control System

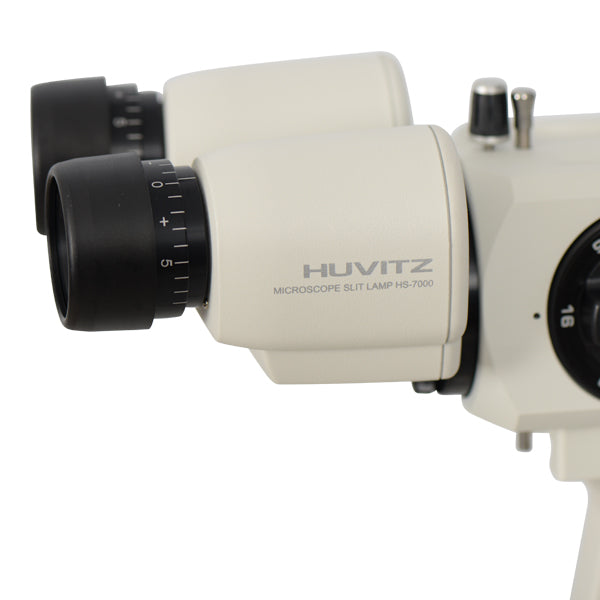

The exclusive optical design system by Huvitz eliminates image distortion at all magnification levels, enabling more precise diagnosis. A five-position drum magnification changer provides easy access to magnification levels ranging from 6x to 40x. Operators will enjoy enhanced views thanks to the additional versatility achieved by switching between 12.5x and 10x eyepieces (optional).

Illumination

This Haag-Streit style tower slit lamp uses a high-brightness 12-volt, 30-watt halogen lamp to provide the sharpest images and videos possible. Available with LED or halogen light source This slit lamp is now offered at your choice with LED or halogen. LED illumination source technology provides a sharper, brighter, and more homogeneous slit than conventional illumination. The shorter wavelength of the LED light spectrum ensures that you will be able to see all structures in greater detail. LED also offers cost and energy savings: you will enjoy a considerable reduction in bulb replacement.

Filters

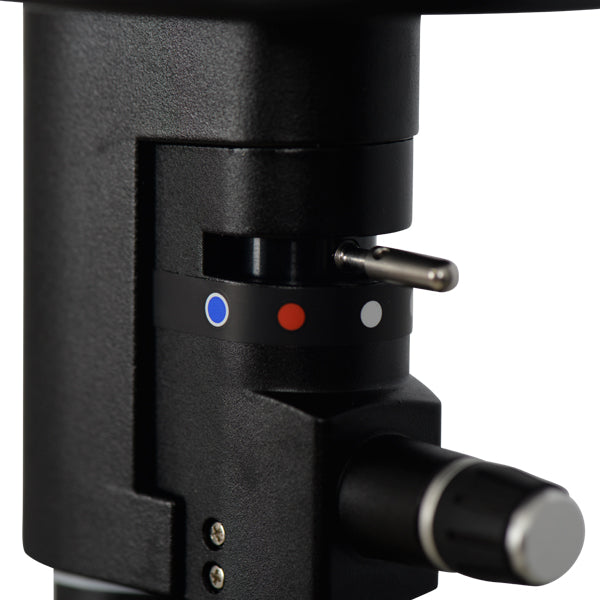

Five filters integrated into the illumination path can be easily inserted using the selection lever. Options include a heat absorption filter that contributes to patient comfort during prolonged examinations, a Red-Free filter that enhances structural contrast, a cobalt blue filter for use in fluorescein evaluations, a grey filter, and a yellow filter to absorb blue light and improve contrast.

Integrated Control

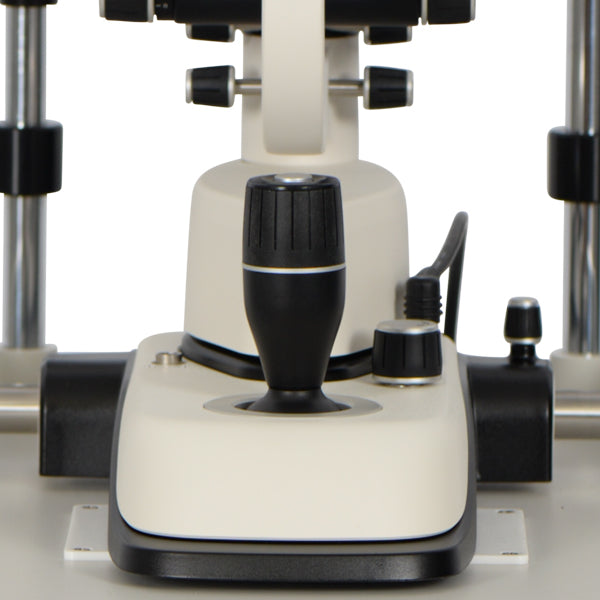

The omnidirectional-style joystick is simple to control. An integrated trigger button allows convenient capture of images and videos. When the slit lamp is connected to imaging devices, images and videos can be stored simultaneously.

Ergonomic Design Illumination Control

The illumination lever is conveniently located next to the joystick. The brightness control switch can be set to High or Normal, further facilitating diagnostic procedures. Quality Testing From design to production, the Huvitz name is one you can trust. All Huvitz slit lamps are manufactured to be durable, even under extreme conditions. Joints and moving parts undergo tens of thousands of repeated operations to ensure a long service life.

Smooth, Easy, and Precise Movement

The simple joystick handling and controls contribute to making diagnostic procedures even easier. Every movement with the HS-7000 is designed to be smooth and precise.
