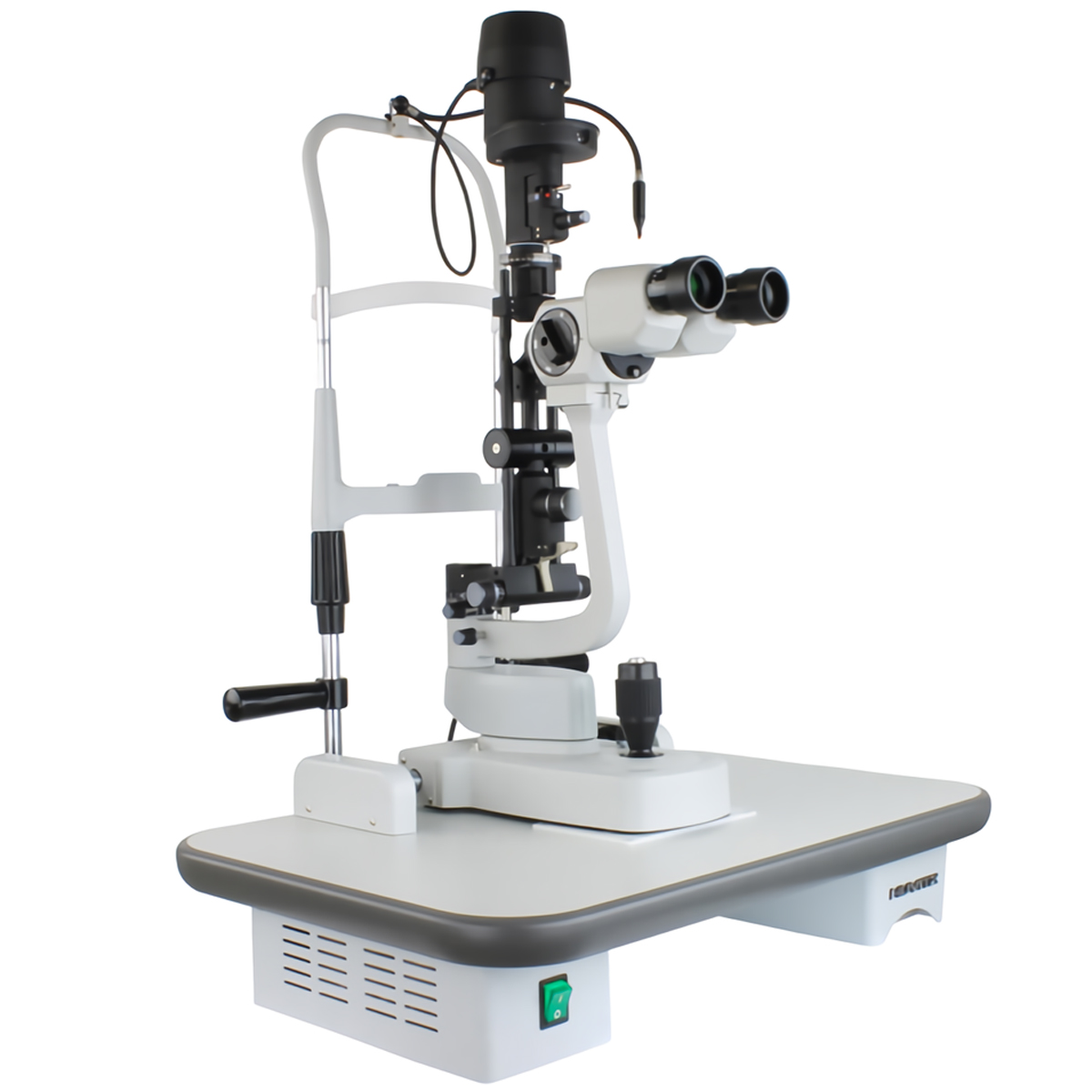

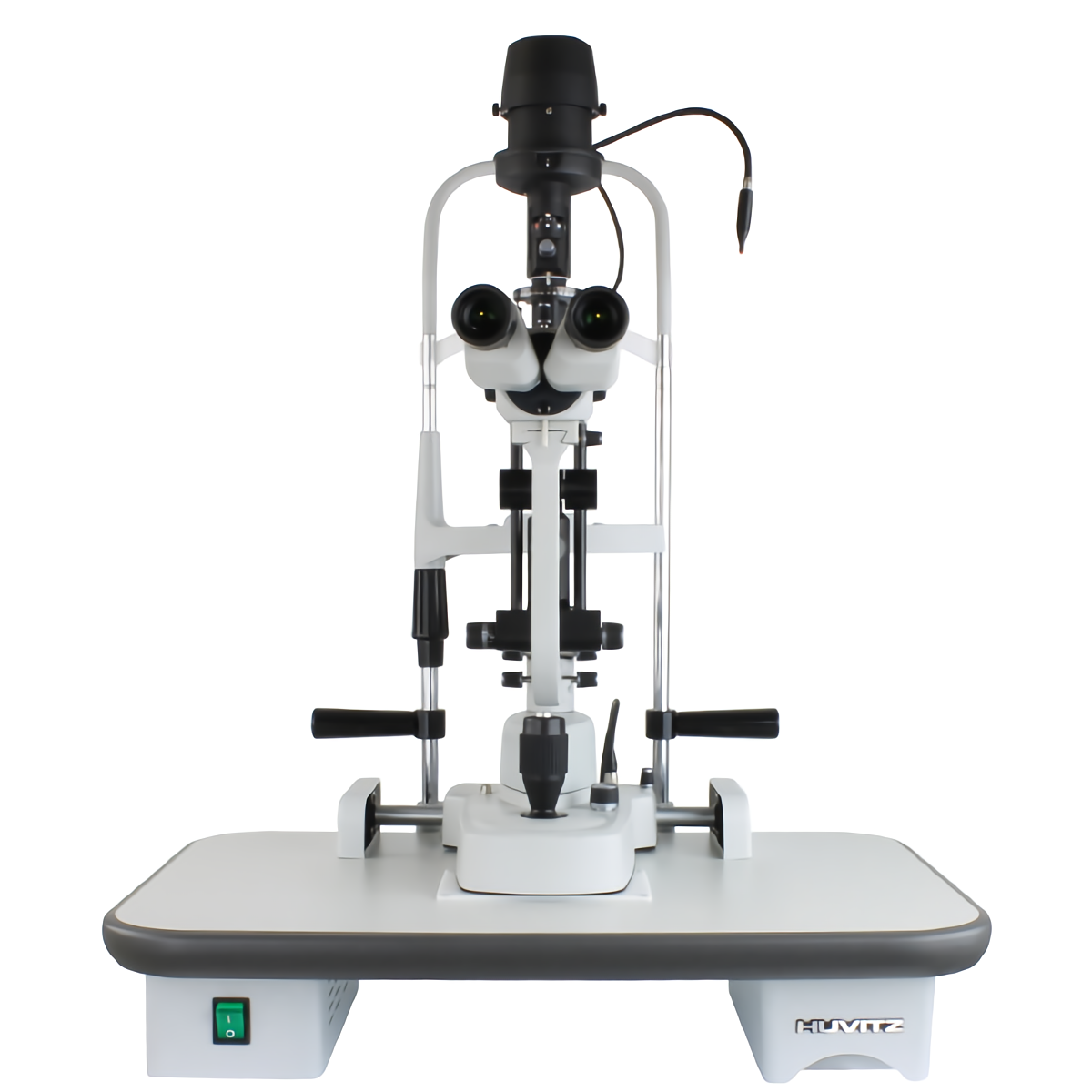

Huvitz Slit Lamp HS-5000 5X

The Huvitz HS-5000 5x Slit Lamp Microscope delivers greater precision, a wide field of view, and a crystal-clear image in every examination.

Huvitz, a leading slit lamp manufacturer and world-class optics designer, presents the HS-5000 5X Slit Lamp. This Haag-Streit style model with Tower Illumination features a Convergent Galilean Binocular Optical System and a five-position drum magnification selector, providing a wide field of view and sharp, clear images at all times. The omnidirectional joystick with a capture button and five integrated filters are among the many “extras” you will appreciate when choosing this slit lamp of superior design and quality.

ℹ Available with Halogen and LED Illumination.

Talk to a specialist

Advanced High-Precision Optics

The high-performance optical system delivers sharp, detailed images, enabling precise analysis of anterior ocular structures.

Stable and Adjustable LED Illumination

The LED light source ensures uniform illumination with precise slit control, enhancing visualization across different clinical examinations.

Versatile Magnification with Five Levels

The 5X magnification system provides different levels of zoom, enabling greater precision in detailed ophthalmic evaluation.

Smooth Control with Precise Adjustment

The ergonomic joystick enables stable movements and fine adjustments, facilitating positioning and increasing examination efficiency.

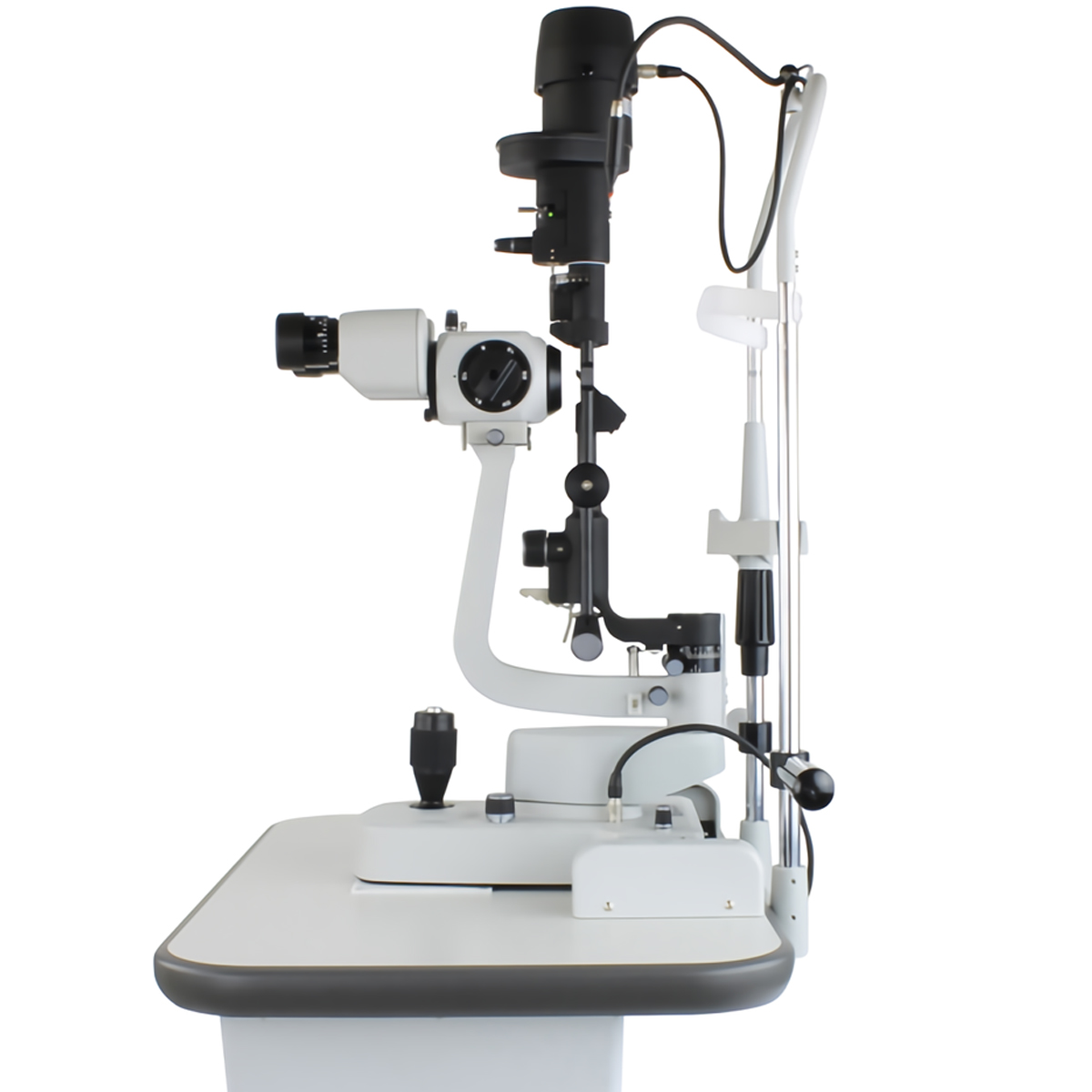

Design

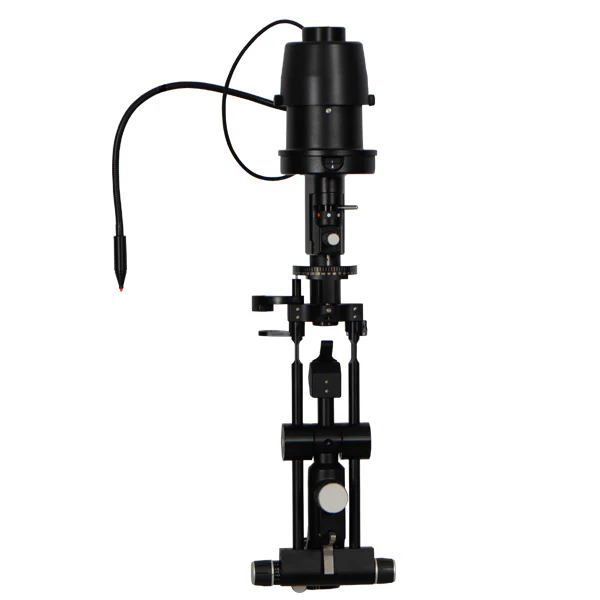

The HS-5000 5X features a Tower Illumination System in the Haag-Streit style positioned above the observation system, which allows decoupling the illumination column in the vertical meridian.

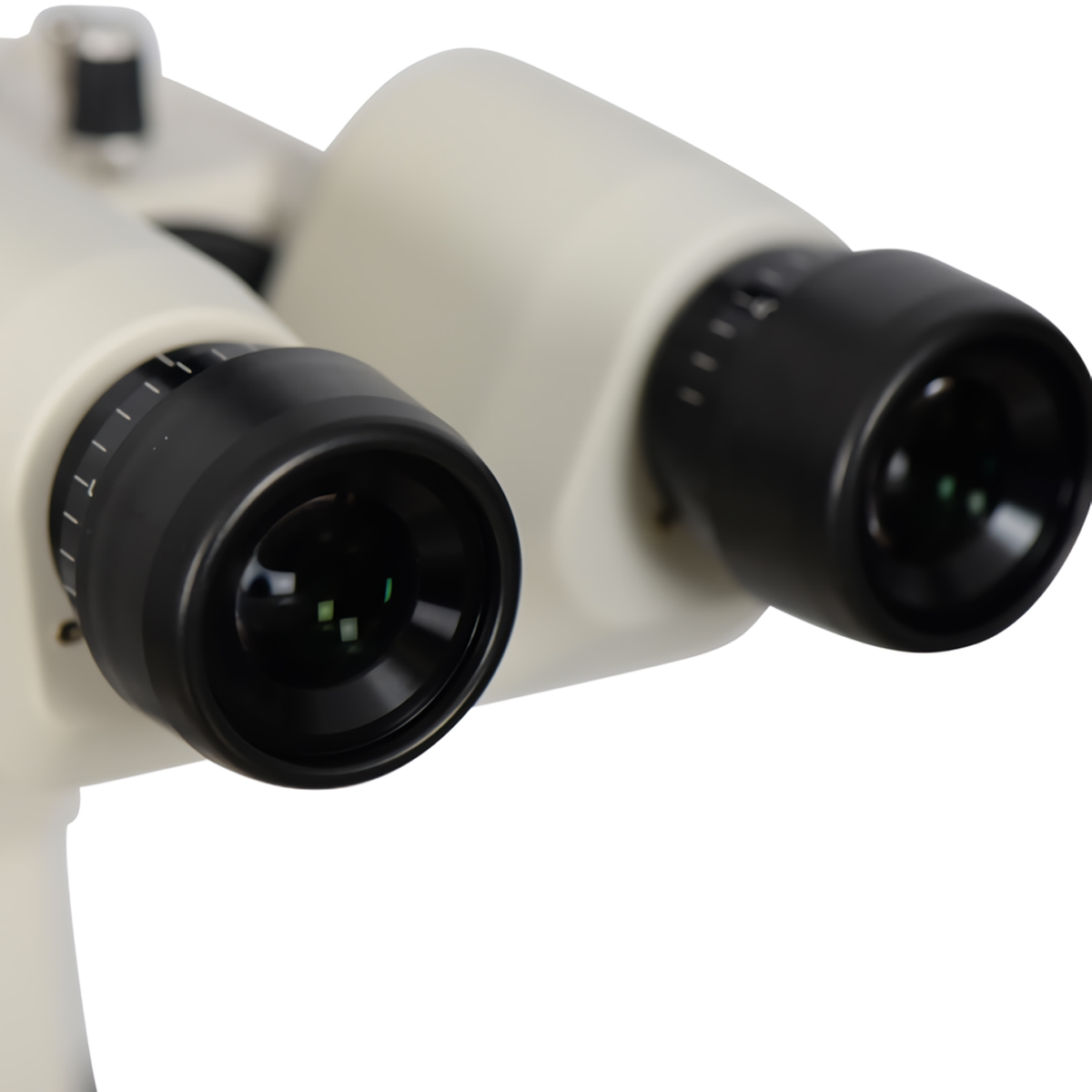

Microscope

The HS-5000 5X features a convergent Galilean binocular optical system that delivers sharp images and a wide field of view. The operator can select total magnifications equivalent to 6x (Ø38.5 mm), 10x (Ø22.2 mm), 16x (Ø15.2 mm), 25x (Ø10.5 mm) and 40x (Ø6.7 mm).

Magnification Control System

The exclusive Huvitz optical system eliminates image distortion at all magnification levels, enabling more precise diagnoses. The five-position drum magnification selector provides easy access to the 6x to 40x range with the 12.5x eyepiece.

Illumination

The high-luminance halogen lamp or LED lamp provides impressive clarity in this slit lamp with Haag-Streit style Tower Illumination.

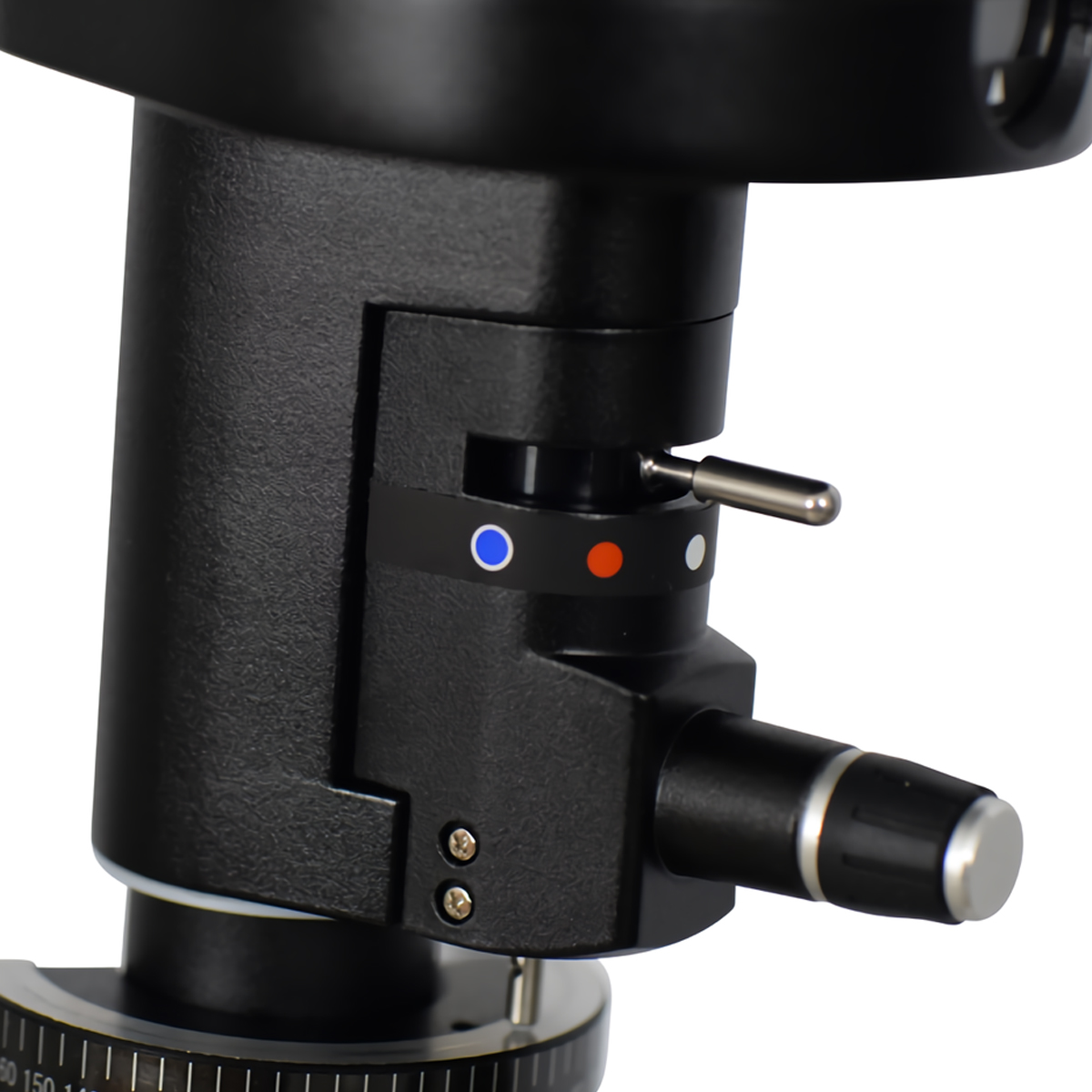

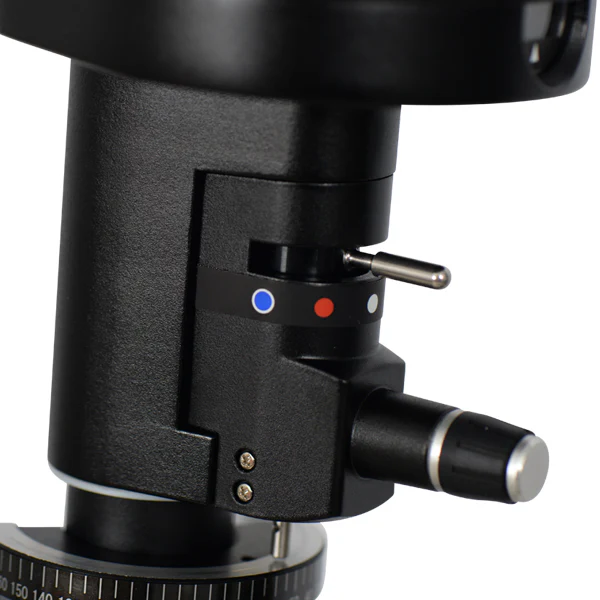

Five Filters, Including Yellow

Five filters integrated into the illumination path can be easily inserted using the selection lever. Options include: heat absorption filter for patient comfort during prolonged examinations; red-free filter to enhance structural contrast; cobalt blue filter for fluorescein evaluation; grey filter; and yellow filter to absorb blue light and increase contrast.

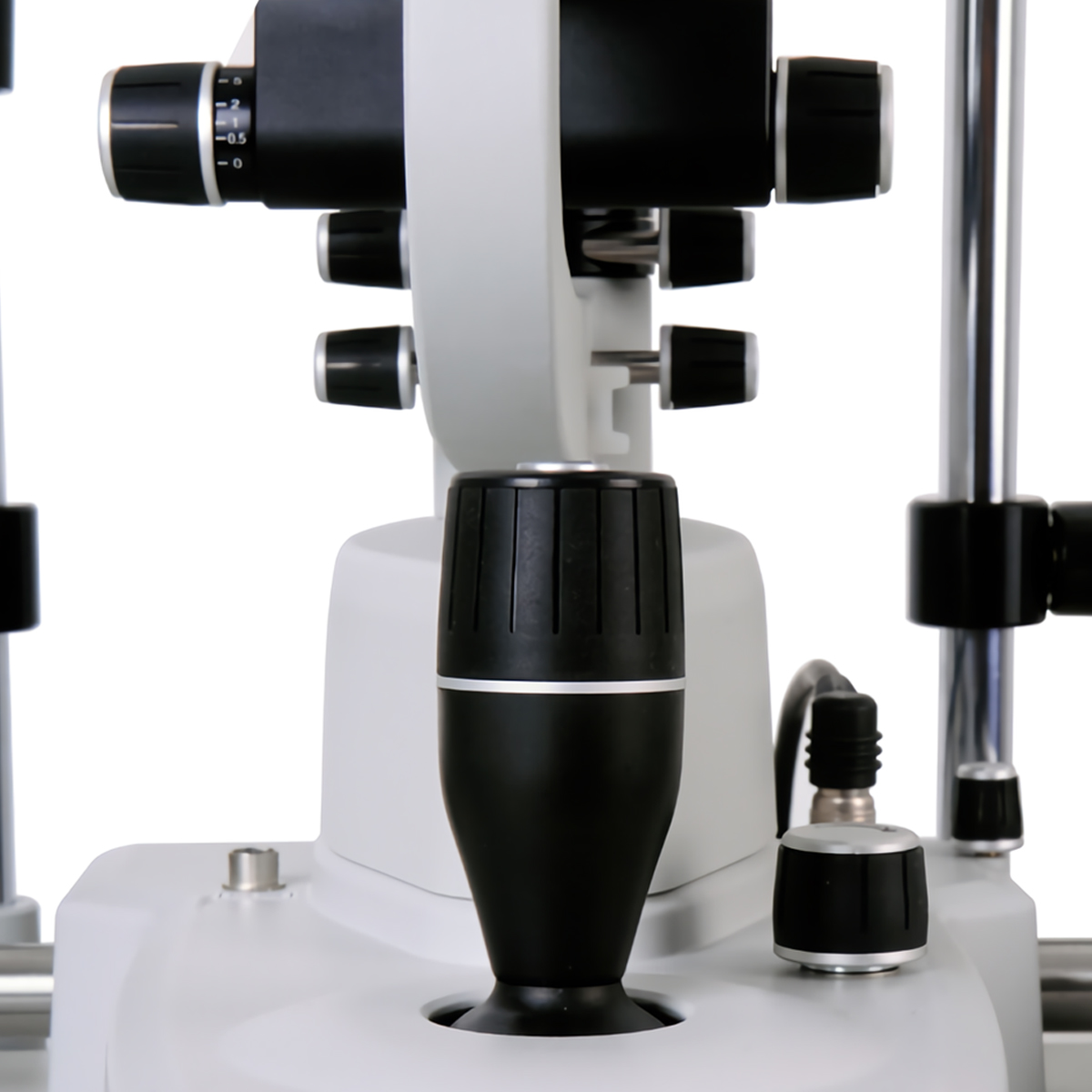

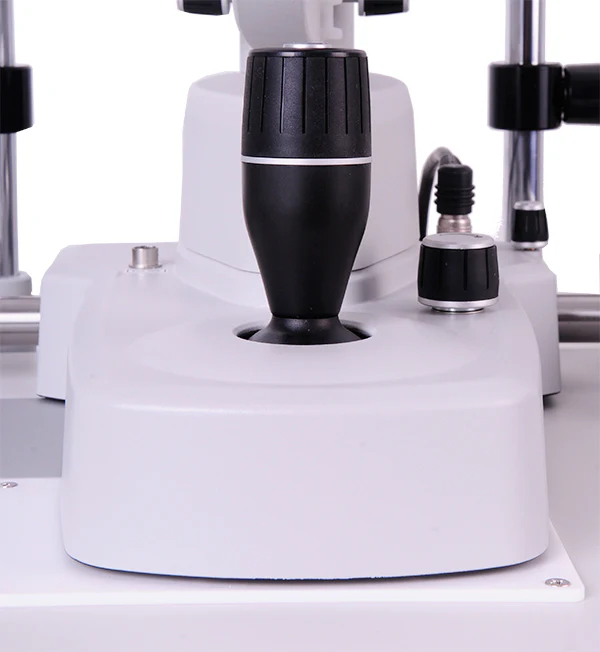

Integrated Control

The omnidirectional joystick is easy to operate. An integrated trigger button allows convenient capture of images and videos. When connected to imaging devices, the slit lamp enables simultaneous storage of images and videos.

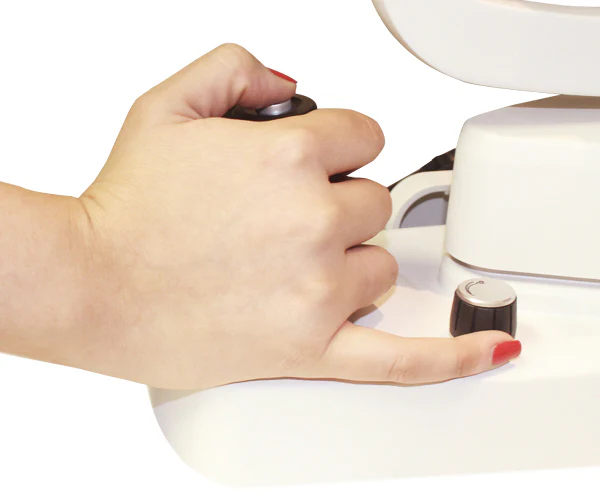

Ergonomic Illumination Control

The illumination lever is conveniently positioned next to the joystick. The brightness selector can be adjusted to High or Normal, making diagnostic procedures even simpler.

Huvitz’s high quality standards ensure confidence at every stage, from design to production. All Huvitz slit lamps are developed to deliver maximum durability, even under extreme conditions, with seals and moving parts tested across tens of thousands of repetitive operations to guarantee a long service life.

The smooth and precise operation of the joystick and controls makes diagnostic procedures even simpler and more efficient. Every movement of the HS-5000 5X was designed to provide precision and fluidity. In addition, all Huvitz slit lamps hold international quality assurance certification.

Specifications

Slit Length (mm)

0.3 ~ 14
Slit Length (mm)

0 ~ 14 continuous
Slit Projection

1x
Aperture Diaphragms

0.02 / 0.04 / 0.11 / 0.19 / 0.4 / 0.47 in (0.3 / 1 / 3 / 5 / 9 / 12 mm)
Filters

Cobalt Blue, Red-Free, Gray, Heat Absorption and Yellow
Slit Rotation

0° ~ 180° continuous
PATIENT EYE / PRISM
Angle of Incidence

0°, 5°, 10°, 15°, 20°
Working Distance from the Surface

3.15 inches (80 mm)
MICROSCOPE
Microscope

5 steps
Type

Convergent Galilean Binocular
Magnification

5-Position Rotating Drum
Eyepieces

12.5x
Total Magnifications

6x, 10x, 16x, 25x, 40x
Real Field of View (mm)

38.5, 22.2, 15.2, 10.5, 6.7
Interpupillary Adjustment

2.16 in ~ 3.15 in (55 mm ~ 80 mm)
BASE
Vertical Movement

1.10 inches (28mm)
Longitudinal Movement

3.07 inches (78 mm)
Lateral Movement

4 inches (98 mm)
Fine Base Adjustment

0.4 inches (10 mm)
Power Supply

Voltage-Free 100 ~ 240V AC
Voltage Frequency

50/60Hz
Power Consumption

70VA
Instrument Voltage

12V DC
Halogen Lamp

12V 30W
Fixation Point Lamp

3.4V 20mA
OPTION: PC, Table Designs and details may be modified without prior notice for improvement purposes

Huvitz Slit Lamp HS-5000 5X

Advanced High-Precision Optics

Stable and Adjustable LED Illumination

Versatile Magnification with Five Levels

Smooth Control with Precise Adjustment

Specifications

Slit Length (mm)

Slit Length (mm)

Slit Projection

Aperture Diaphragms

Filters

Slit Rotation

PATIENT EYE / PRISM

Angle of Incidence

Working Distance from the Surface

MICROSCOPE

Microscope

Type

Magnification

Eyepieces

Total Magnifications

Real Field of View (mm)

Interpupillary Adjustment

BASE

Vertical Movement

Longitudinal Movement

Lateral Movement

Fine Base Adjustment

Power Supply

Voltage Frequency

Power Consumption

Instrument Voltage

Halogen Lamp

Fixation Point Lamp

OPTION: PC, Table Designs and details may be modified without prior notice for improvement purposes

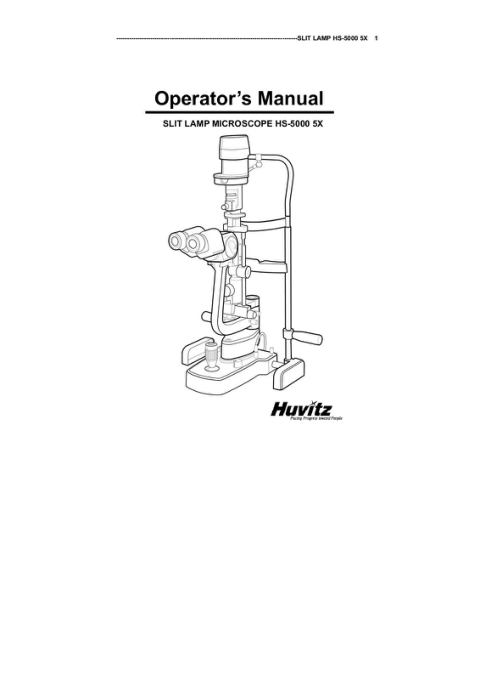

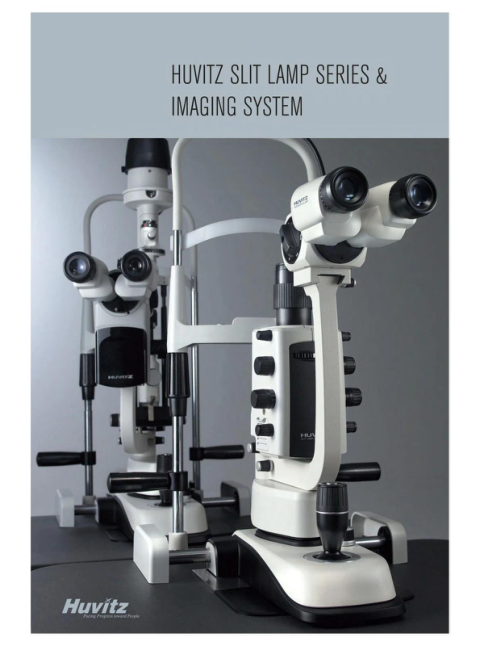

Manuals & Catalogs
