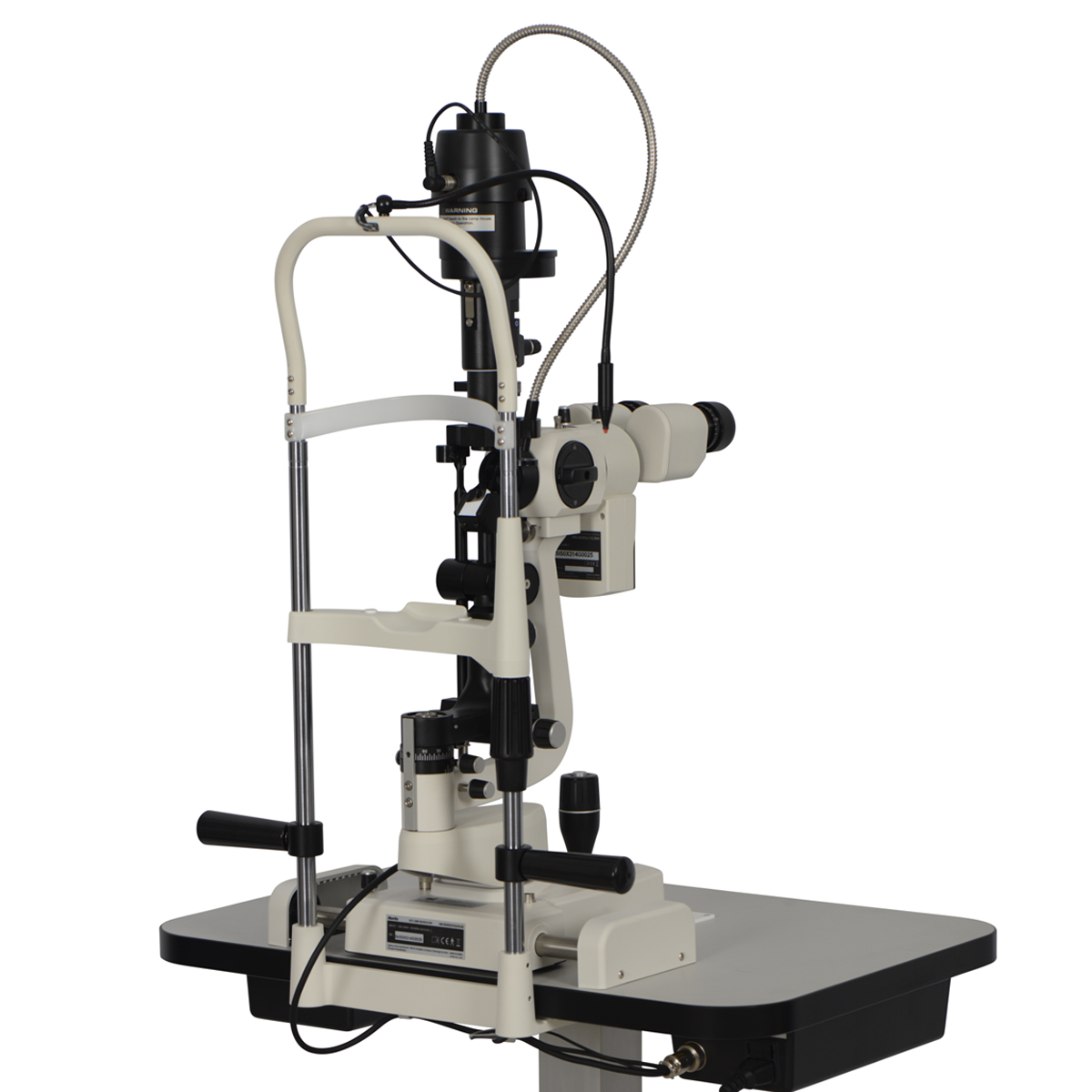

Huvitz Slit Lamp HIS-5000 3X

“See the difference…”

Intuitive and easy-to-use information management and processing.

The illumination system provides an extremely bright and vivid view

This Haag-Streit tower-style slit lamp is equipped with either LED or a 12-volt, 30-watt high-luminance halogen lamp to provide the sharpest image possible.

Magnification Control System for multiple observations

The Huvitz optical system, exclusively designed, eliminates image distortion at all magnification levels, allowing for more precise diagnosis. The three-position drum provides easy access to magnifications ranging from 10x to 25x.

Fastest and Most Stable Digital Camera

The HIS-5000 3X delivers high-resolution images using the IEEE 1394 interface, which transfers image data faster and more stably compared to the common USB interface method.

Easy-to-Use Microscope

The HIS-5000 3X features a Galilean convergent binocular optical system that provides vivid images and a wide field of view. Operators can select magnifications of 10x (∅22.2mm), 16x (∅15.2mm) and 25x (∅10.5mm).

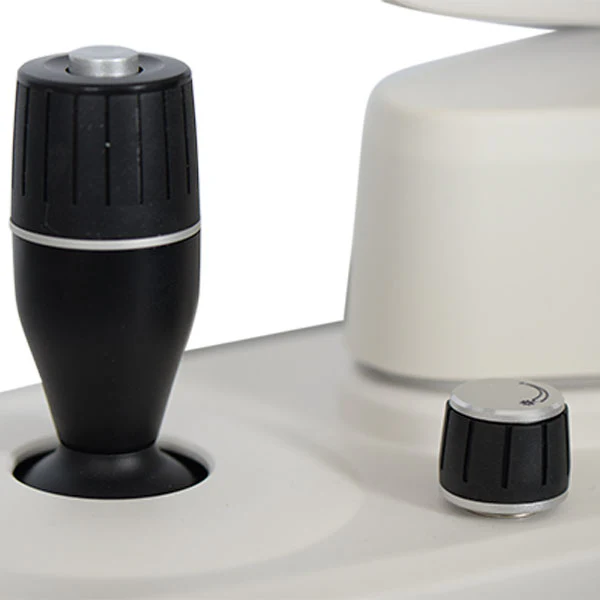

Integrated Joystick Control

The omnidirectional joystick is easy to operate. An integrated button allows images and videos to be captured conveniently. When connected to imaging devices, images and videos can be stored simultaneously.

Illumination Control with Ergonomic Design

The illumination lever is conveniently located near the joystick. The brightness switch can be adjusted to High or Normal, further facilitating diagnostic procedures.

Five Integrated Filters, Including Yellow

Five integrated filters can be easily inserted into the illumination path using the selection lever. Options include: heat absorption filter for greater patient comfort, red-free filter to enhance contrast, cobalt blue filter for fluorescein, grey filter, and yellow filter to absorb blue light and increase contrast.

Intelligent Patient Information Management

The MS Access database-based system allows easy searching and management of previous and current data for all patients.

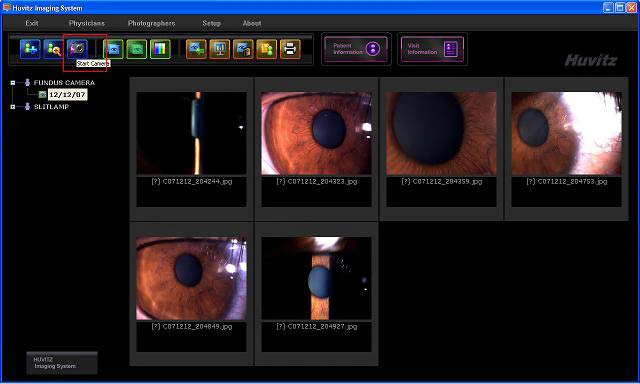

Intuitive Interface
A tree interface helps users access information quickly, without complicated multiple clicks.

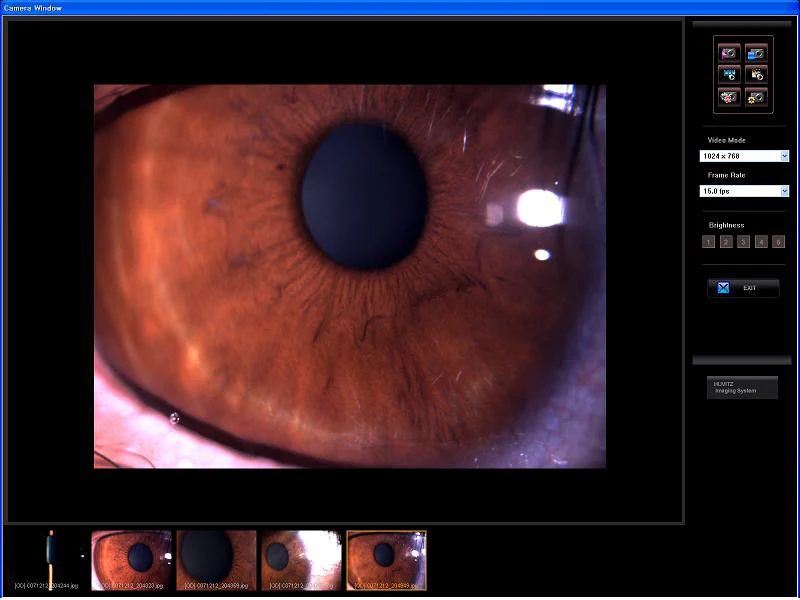

Fast Real-Time Image Capture

The high-performance progressive scan CCD camera displays captured images in real time.

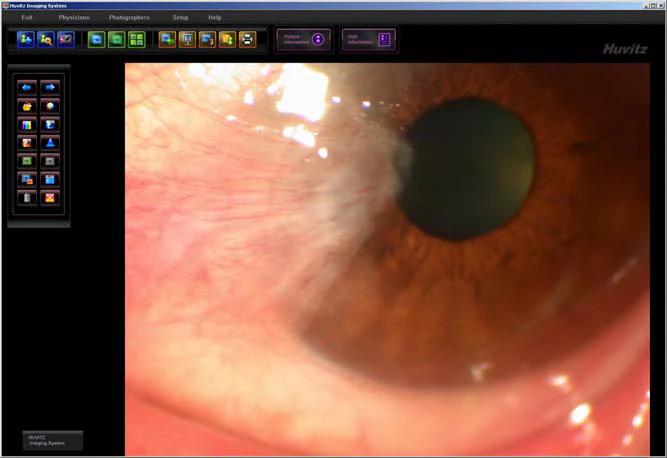

Advanced Image Processing

The HIS-5000 3X is compatible with JPG, TIFF, RAW and many other image formats. Operators can access them from the Live Tool graphic library and adjust brightness, contrast, color channels, saturation, inversion, sharpness, red-free, among other functions.

Diagnose, Consult, Generate Reports and Share

[Compare]
Users can apply various effects to images. Selected images can be enlarged, reduced and rotated for precise comparison and diagnosis.

[Overlay]
Comparing images captured at different time points allows for the detection of progressions.

[Presentation Slides/Slideshow]
All images can be selected for use in presentations and slides.

[Reference]
Easily locate multiple images of the same observation for future reference.

[Automatic Report Generation]
Automatically export patient reports in MS Word format.

[Print]

Quick one-click image printing.

The price does not include the computer shown in the images. The product includes only: Slit Lamp, camera, fiber optic background illumination, and software.
