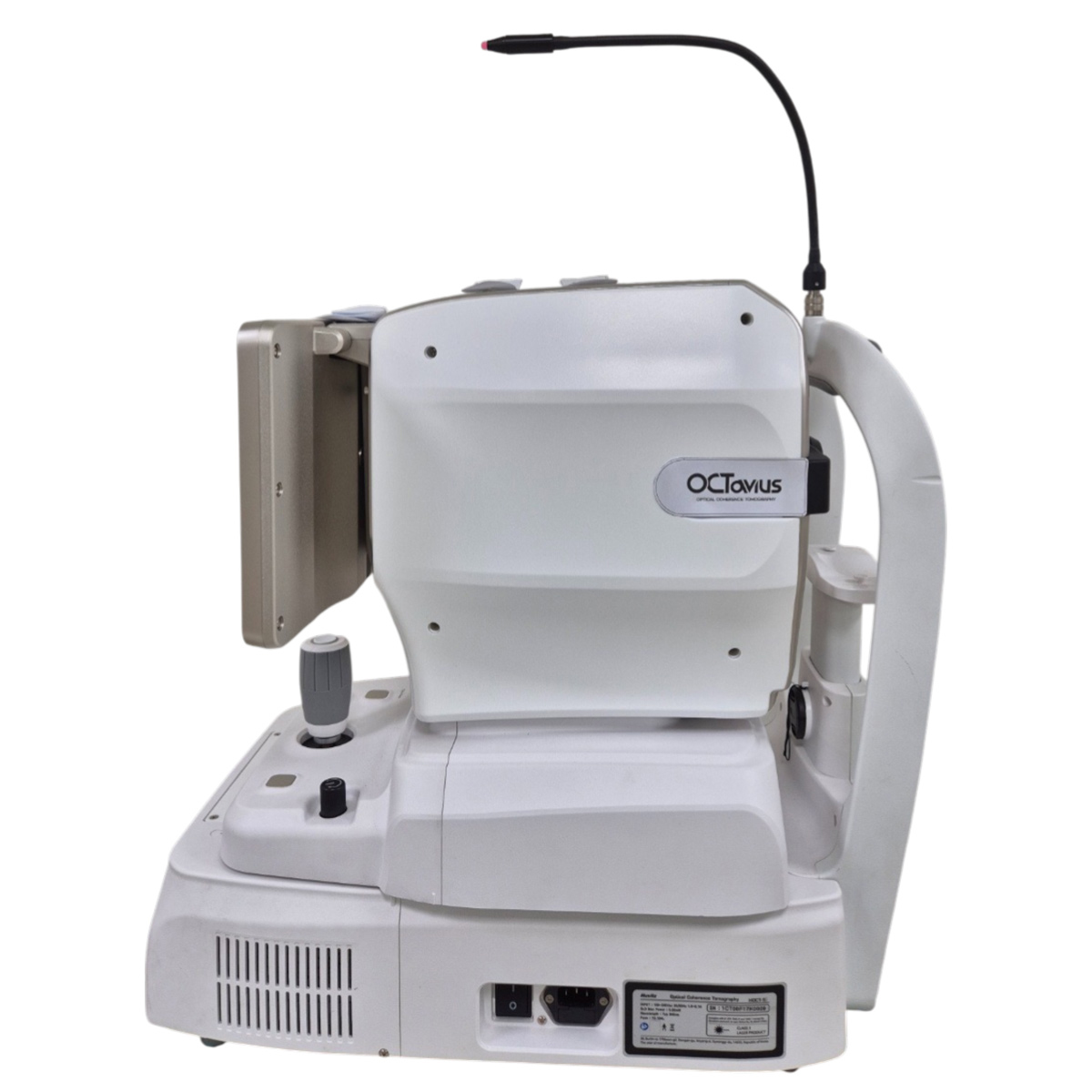

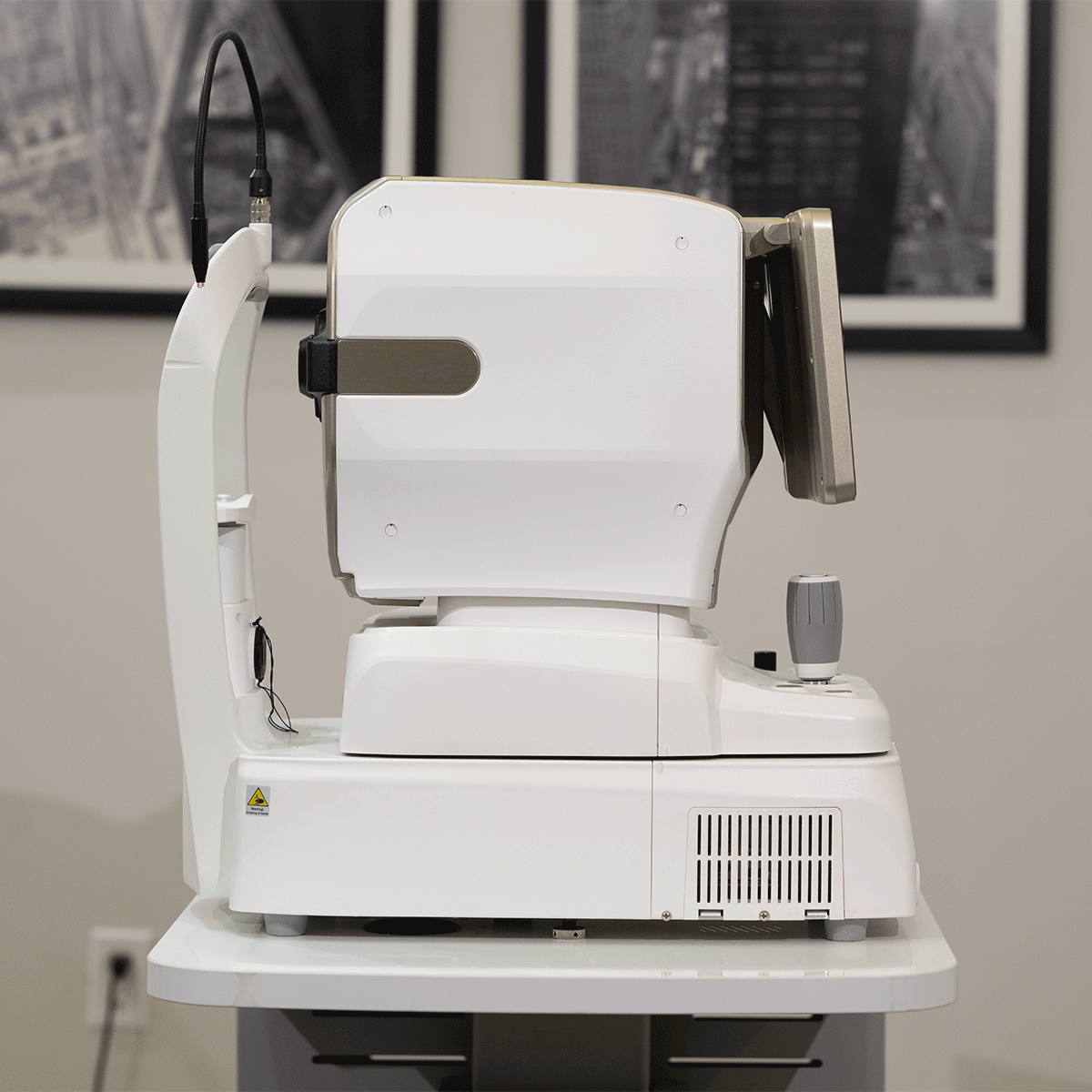

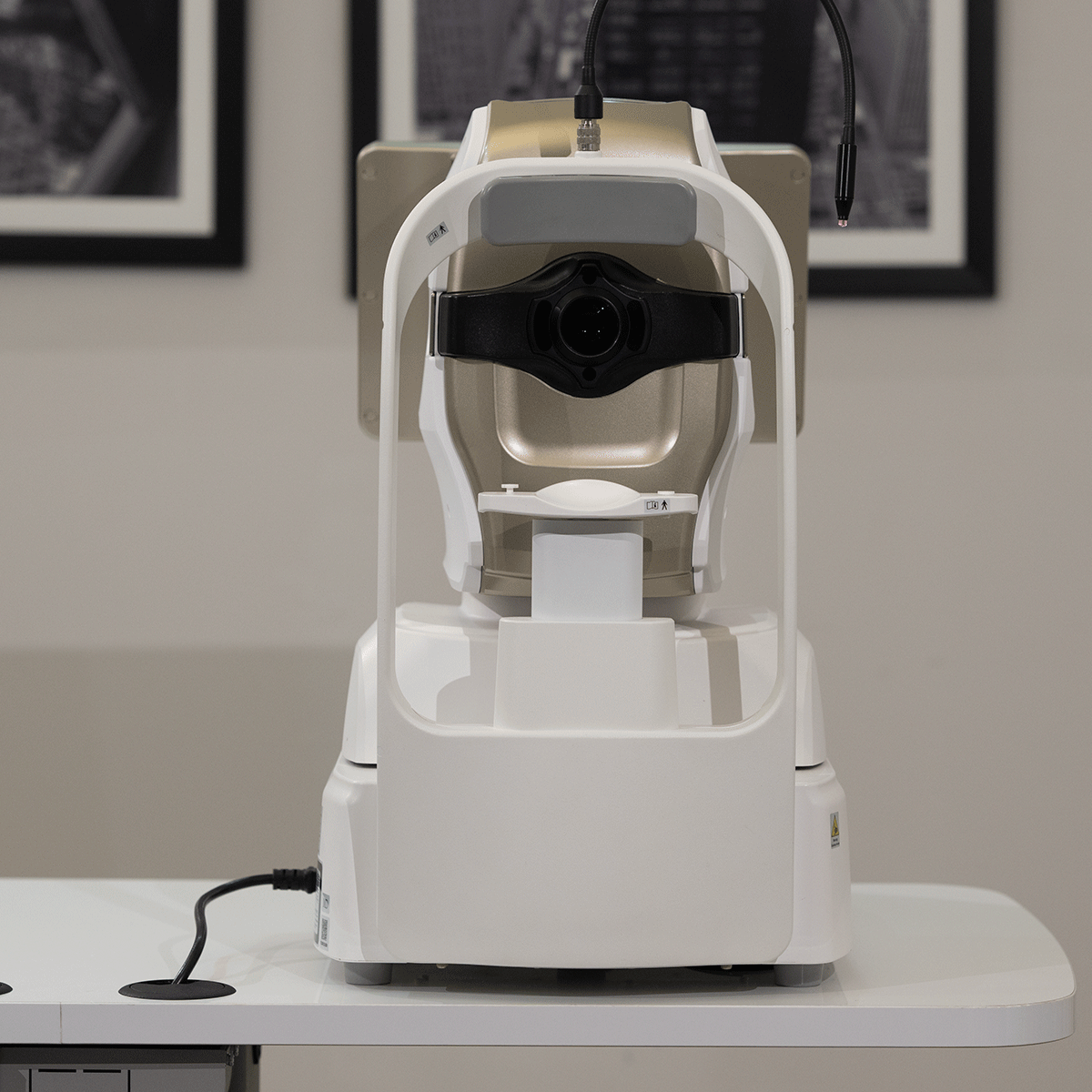

Huvitz Optical Coherence Tomographer HOCT-1(80)

3D OCT • Angiography • Biometry • Topography

The HOCT-1 (80) integrates four essential diagnostic functions into a single compact platform, offering smooth operation and precise data that professionals can rely on. This system increases diagnostic confidence, optimizes workflow efficiency, and saves valuable space in the examination room, providing a powerful small-footprint solution for modern ophthalmology clinics.

Compact design with integrated Intel® technology

The HOCT-1 (80) features an integrated computer equipped with a 13th-generation Intel® i3 processor and a high-speed SSD unit, eliminating the need for an external PC and reducing installation space. Its truly compact footprint design makes it ideal for modern clinics. This integrated system delivers 35% faster processing, twice the speed in boot-up and image saving, and greater reliability. The SSD ensures superior data durability and stability, while the integrated architecture provides a more organized and efficient work environment, with smooth performance for optimized clinical operations.

With an increased A-scan speed from 68,000 to 80,000 A-scans/sec (+17%), the HOCT-1 (80) reduces patient waiting times and lowers scan repetition rates by capturing stabilized, high-resolution 3D volumes even in the presence of micro-movements and blinking. Its ultrafast 80k engine delivers sharp, artifact-free images that are easy to obtain for new users, and visualizes retinal layers with high definition for reliable pathology assessment, including layer thickness and macular differentiation.

High-Resolution Retinal and Choroidal Imaging

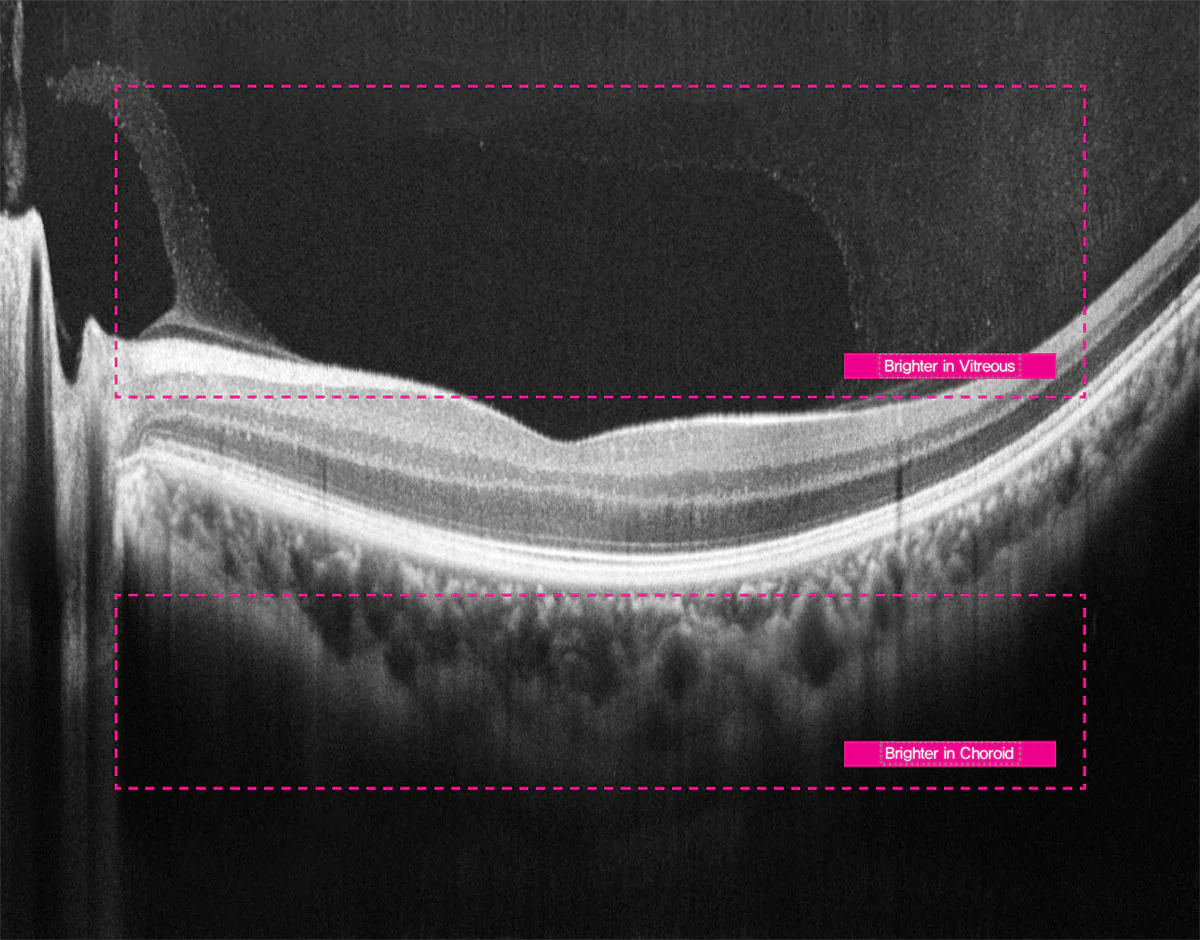

Capture the retina and choroid with unparalleled precision through high-resolution scans. The HOCT-1 (80) features fast and stable scanning technology that provides clear visualization of delicate retinal and choroidal structures, making it highly effective in diagnosing critical conditions such as retinal detachment and vitreous opacities. In ECI (Enhanced Choroidal Imaging) mode, depth signals are inverted to maximize contrast within the choroidal layer, ensuring superior diagnostic clarity.

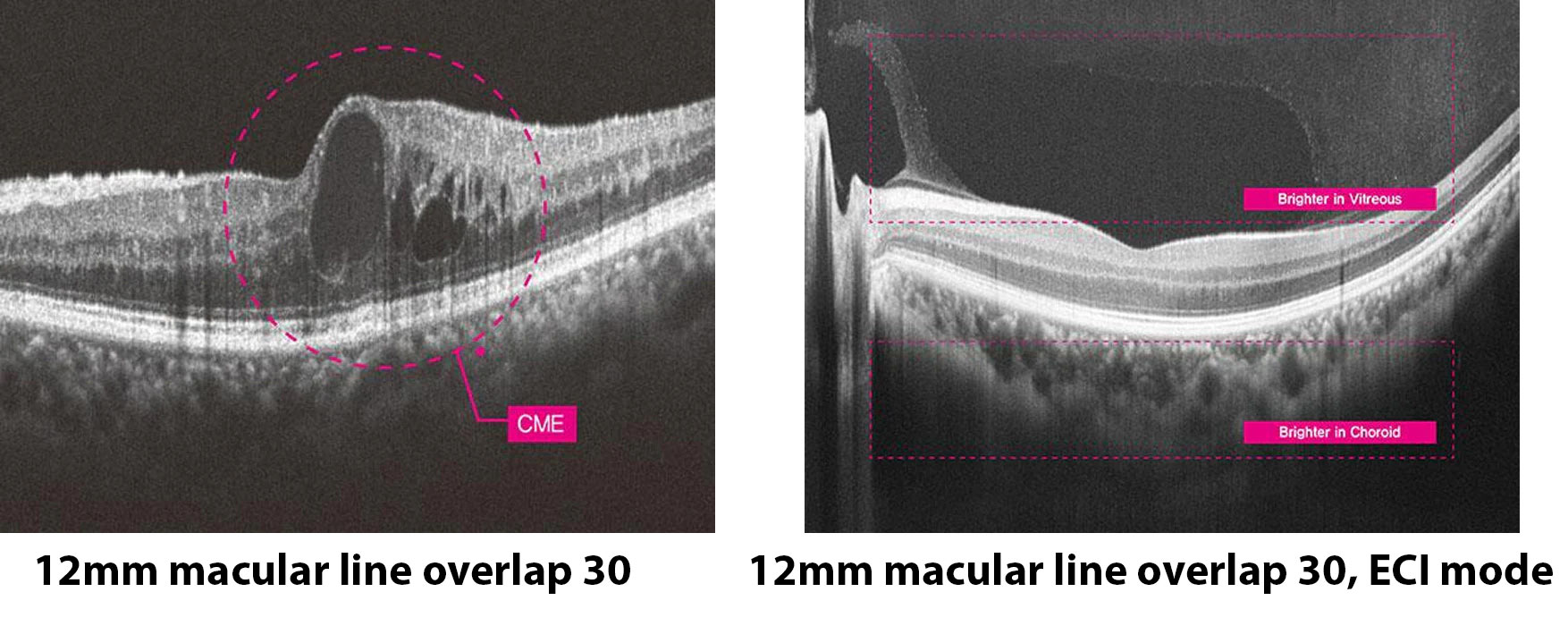

Image: ECI mode, 12 mm macular line with an overlap of 30.

Precise Capture of Microstructural Changes

With exceptional clarity, the system detects subtle morphological anomalies such as cystoid macular edema (CME), dome-shaped elevations, and early detachments of the RPE layer. This precision enables early and accurate assessment of lesion structure and progression, supporting timely diagnosis and effective treatment planning.

The Angio Enhancement package for the HOCT-1 (80) increases performance and reliability by combining location-sensitive scan speed improvements with real-time retinal tracking via a 30 fps IR camera. Image quality is optimized through vascular signal contrast across slabs and foveal reflex suppression, along with post-acquisition B-scan registration, which restores disrupted vessels.

CNV visualization benefits from an advanced despeckling system that highlights only true neovascular structures. Robust noise controls eliminate motion artifacts, reduce horizontal banding, and remove ghosting, while the PAR (Projection Artifact Removal) function clears superficial vessel shadows and enhances outer retinal definition. Finally, refined retinal layer segmentation delivers more accurate OCTA analyses, increasing diagnostic confidence.

Real-Time Retinal Tracking

The HOCT-1 (80) offers precise visualization of the retinal microvasculature through real-time retinal tracking with a 30 fps IR camera that corrects eye movements during acquisition. By reducing motion blur and suppressing banding artifacts, it preserves vascular continuity and sharp capillary edges, producing stable and accurate OCTA images even with slight fixation movements or blinks — enabling clearer data capture with fewer retakes.

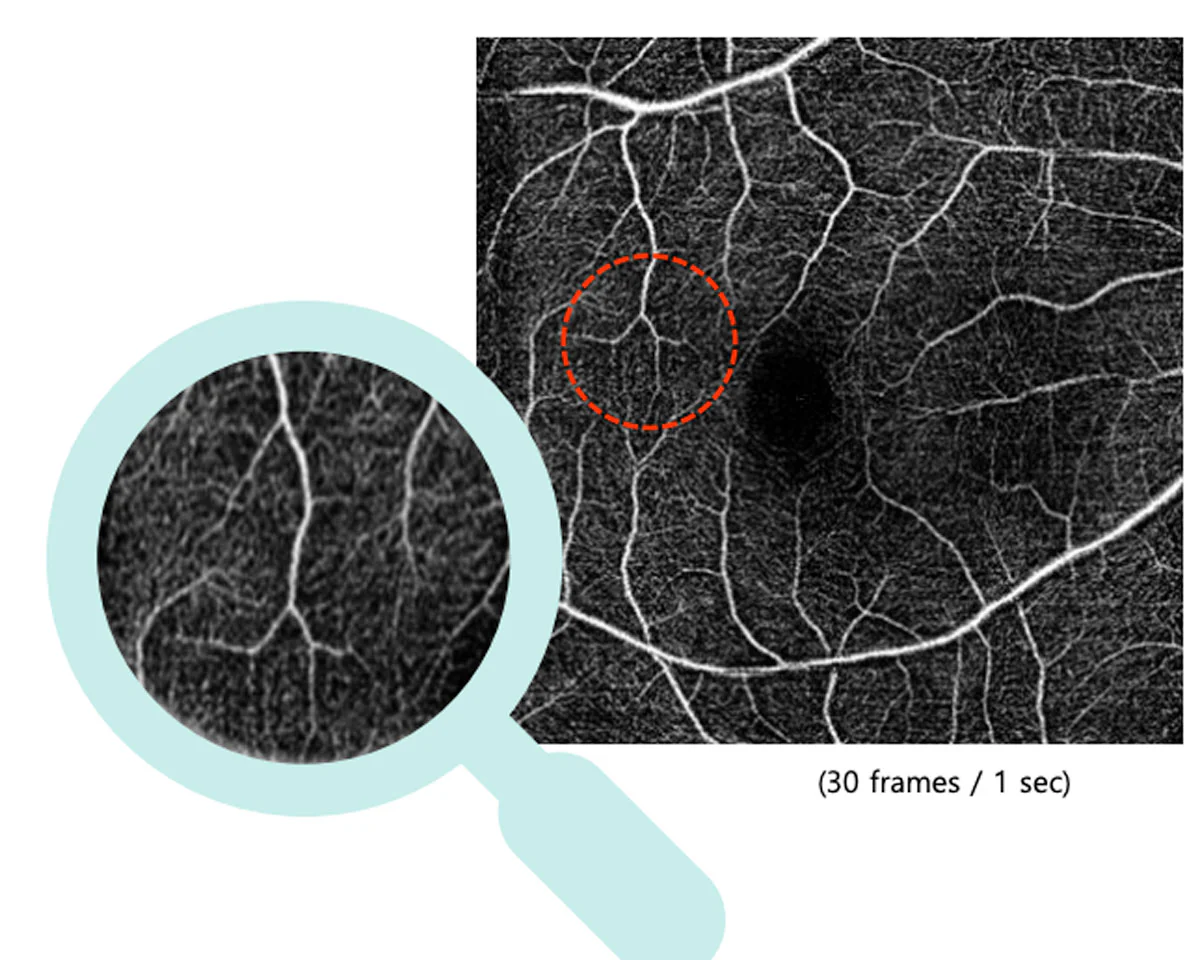

Image: 30 frames / sec

Higher Signal Contrast in CNV

The HOCT-1 (80) improves the visibility of choroidal neovascularization (CNV) in the outer retina by optimizing signal processing within the selected OCTA slab, suppressing foveal specular reflections and reducing noise. The result is higher contrast between vessels and background, with preservation of microvascular continuity, a cleaner representation of fine capillaries, and more reliable delineation of CNV networks, improving detection, edge assessment, and comparison in follow-up.

Motion Artifact Removal

The HOCT-1 (80) minimizes motion-related artifacts in OCTA by correcting micro eye movements during acquisition and applying a dedicated “fringe noise” reduction algorithm that suppresses horizontal banding. The result is cleaner slabs with preserved vascular continuity, sharper capillary edges, and reduced background noise, delivering more readable images and reducing the need for repeated scans.

Projection Artifact Removal (PAR)

The HOCT-1 (80) uses PAR to suppress shadow-like projections from the superficial vascular plexus that contaminate deeper OCTA slabs. By eliminating these projection artifacts, the system preserves true flow signals in the outer retina, enhances vasculo-fundic contrast, and maintains microvascular continuity. The result is a cleaner and more accurate visualization of structures such as NVC, with sharper edges and fewer false positives, leading to more precise interpretation and more reliable follow-up quantification.

Enhanced Retinal Layer Segmentation (RPEDC)

The HOCT-1 (80) offers more precise layer segmentation, with special improvements in the RPE/Bruch’s membrane complex. Its refined algorithm reliably tracks the RPEDC boundary even in irregular morphologies, reducing manual corrections and increasing reproducibility. By clearly separating the outer retinal layers, it enables better visualization of sub-RPE structures, enhanced detection and delineation of drusen/PED, and more reliable thickness and en face maps. The result is consistent layer selection and greater diagnostic confidence in the assessment of subtle RPEDC changes over time.

OCT Topography simultaneously captures the anterior and posterior surfaces of the cornea, generating a detailed 3D analysis with 16 types of corneal maps for precise evaluation of thickness, curvature, and elevation.

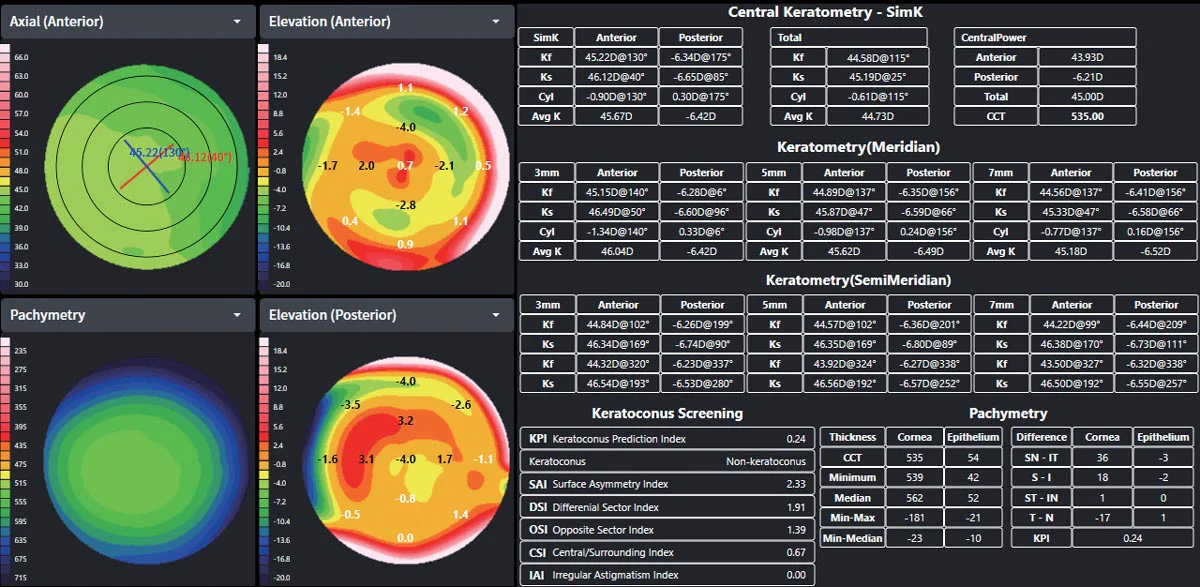

Maps and Numerical Data on a Single Screen

On a single screen, the user can visualize four maps — Axial, Anterior Elevation, Posterior Elevation, and Pachymetry — while analyzing important parameters such as SimK, Meridian, Keratoconus Index, and epithelial thickness. In addition, it is possible to switch between maps or adjust the display layout as needed, enabling flexible use tailored to different diagnostic scenarios.

Simplified clinical workflow

Analysis screens can be printed or sent to a PACS server in DICOM format, facilitating the storage and exchange of results. When printing, the background can be changed to white to improve report readability. Integration with the EHR and hospital PACS further streamlines the clinical workflow.

Complementing Topography, Optical Biometry visualizes the entire axial length — from the cornea to the macula — in high-resolution 2D images, offering far more detail than conventional ultrasound. Together, these technologies provide the detailed data needed for personalized intraocular lens (IOL) selection and safe surgical planning.

Fast, Precise, and Highly Reliable Measurements

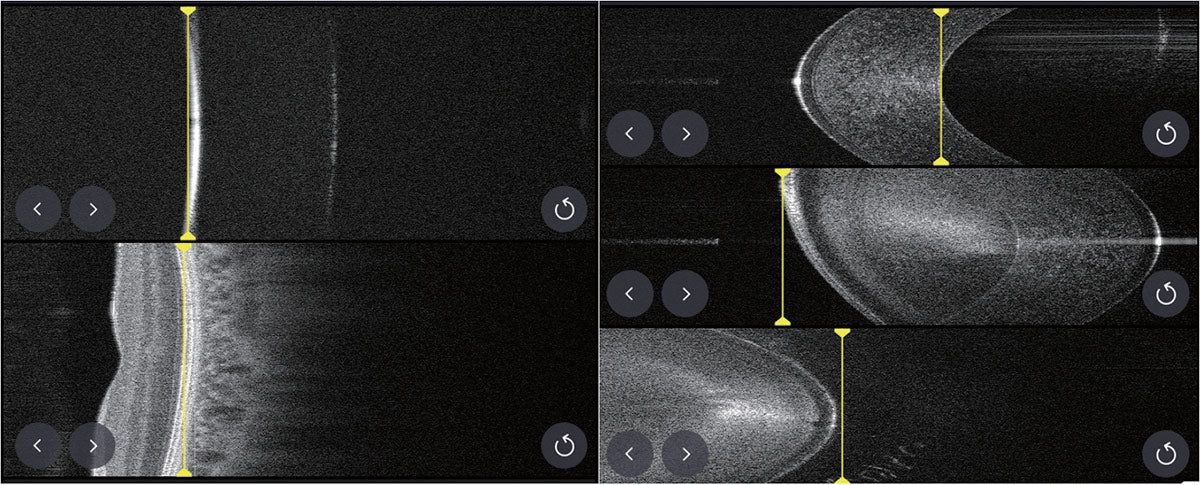

With Burst Mode, the system performs rapid consecutive measurements — three times for axial length and five times for central corneal thickness (CCT), anterior chamber depth (ACD), and lens thickness (LT) — ensuring high consistency and accuracy. Low-quality readings caused by blinking or minor movement are automatically filtered out, ensuring reliable IOL calculations.

Comprehensive overview: from precise measurements to IOL recommendations.

The biometric analysis screen offers a comprehensive three-dimensional view of ocular structures with AL, LT, Radial, and Full Anterior Segment perspectives. Measurement parameters such as axial length (AL) and lens thickness (LT) can be selectively reviewed, with the option to manually adjust the boundary of each layer for maximum precision, even in complex anatomies. By integrating AL, PCC, PCA, EC, and K values based on corneal topography, the system automatically generates ideal IOL recommendations tailored to each patient, supporting precise and efficient surgical planning.

OCT Topography simultaneously captures the anterior and posterior corneal surfaces, producing a detailed 3D analysis with 16 map types to accurately assess thickness, curvature, and elevation. Complementarily, Optical Biometry visualizes the complete axial length, from the cornea to the macula, in high-resolution 2D, offering greater detail than conventional ultrasound. Together, they provide the granular data necessary for precise IOL selection and safe surgical planning.

Full Anterior Segment Visualization

A single scan captures the entire anterior segment — from the cornea to the lens — with clear visualization of the iris and anterior chamber. Parameters such as WTW (white-to-white) and ACT (anterior chamber thickness) are measured automatically, enabling objective comparisons and accurate assessments.

Clinical Insight

Useful for the early detection of anterior chamber angle abnormalities and for pre- and postoperative monitoring in refractive procedures and IOL implants.

Visualization of the Ciliary Muscle and Crystalline Lens
With the Wide Single-Line Scan function, the anterior structure of the ciliary muscle and crystalline lens is clearly visualized in a single scan. This enables rapid assessment of changes in ciliary muscle function, as well as the position and shape of the crystalline lens, making it ideal for pre- and postoperative comparisons. It also supports detailed functional analyses of the anterior segment across various clinical applications, including presbyopia correction and IOL implantation.

Clinical Perspective: Rapid assessment of ciliary muscle function and changes in crystalline lens position for pre- and postoperative comparison.

Corneal Analysis

With the Anterior Segment Module, high-resolution sectional images of the cornea are captured to precisely measure thickness, curvature, and anterior and posterior structures. These measurements can be visualized and analyzed in 2D and 3D formats, providing comprehensive data for accurate clinical evaluations.

Radial Analysis

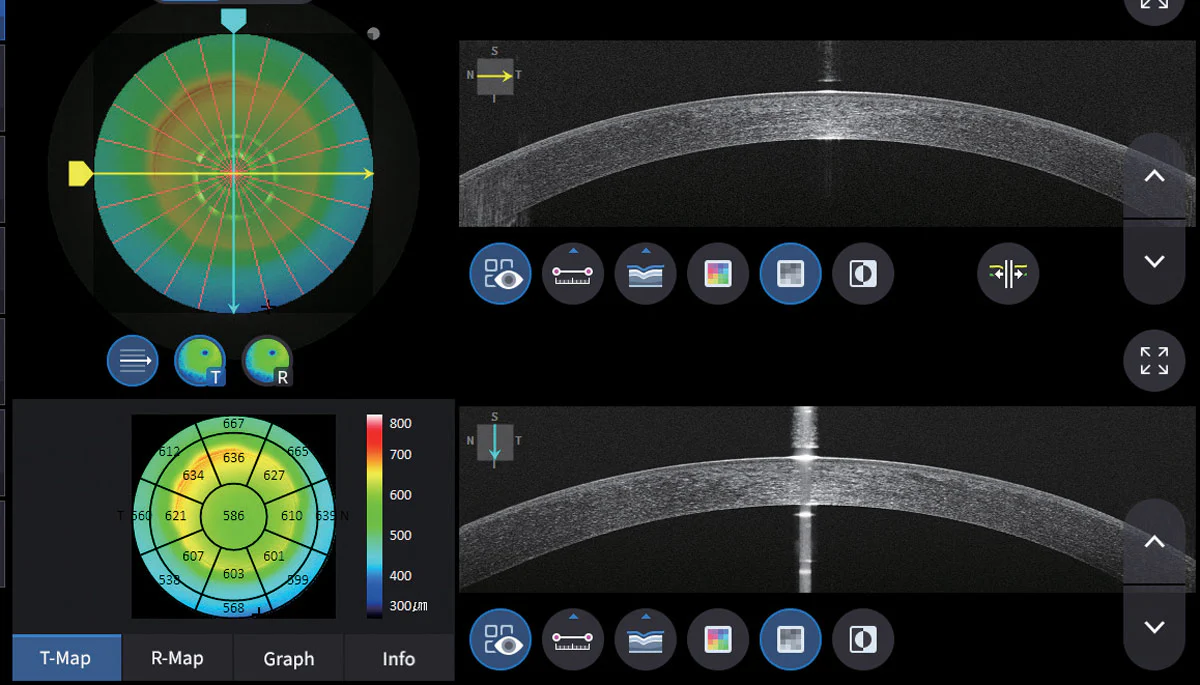

Through the Corneal Thickness Map, the overall thickness distribution and the location of the thinnest point can be identified with precision. This detailed visualization of corneal topography aids in the early detection and evaluation of anomalies such as keratoconus.

Anterior Chamber Angle Analysis

Through cross-sectional images of the anterior segment, the system precisely measures the anterior chamber angle (ACA) between the cornea and the iris. This enables an accurate assessment of whether the angle is open or closed, supporting reliable diagnosis and monitoring of angle-related conditions.

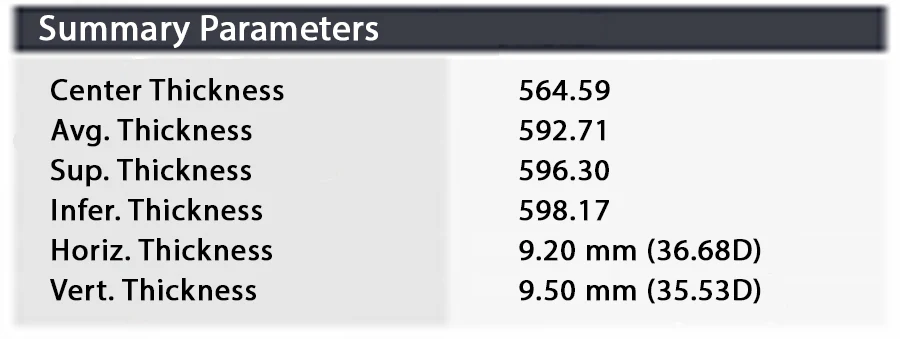

More Reliable Maps – Parameters with Greater Precision

The HOCT-1 (80) generates more consistent and reliable maps, improving the accuracy of key corneal parameters, including central thickness , mean thickness , and curvature measurements . These precise values are essential for advanced diagnosis and personalized patient care.
