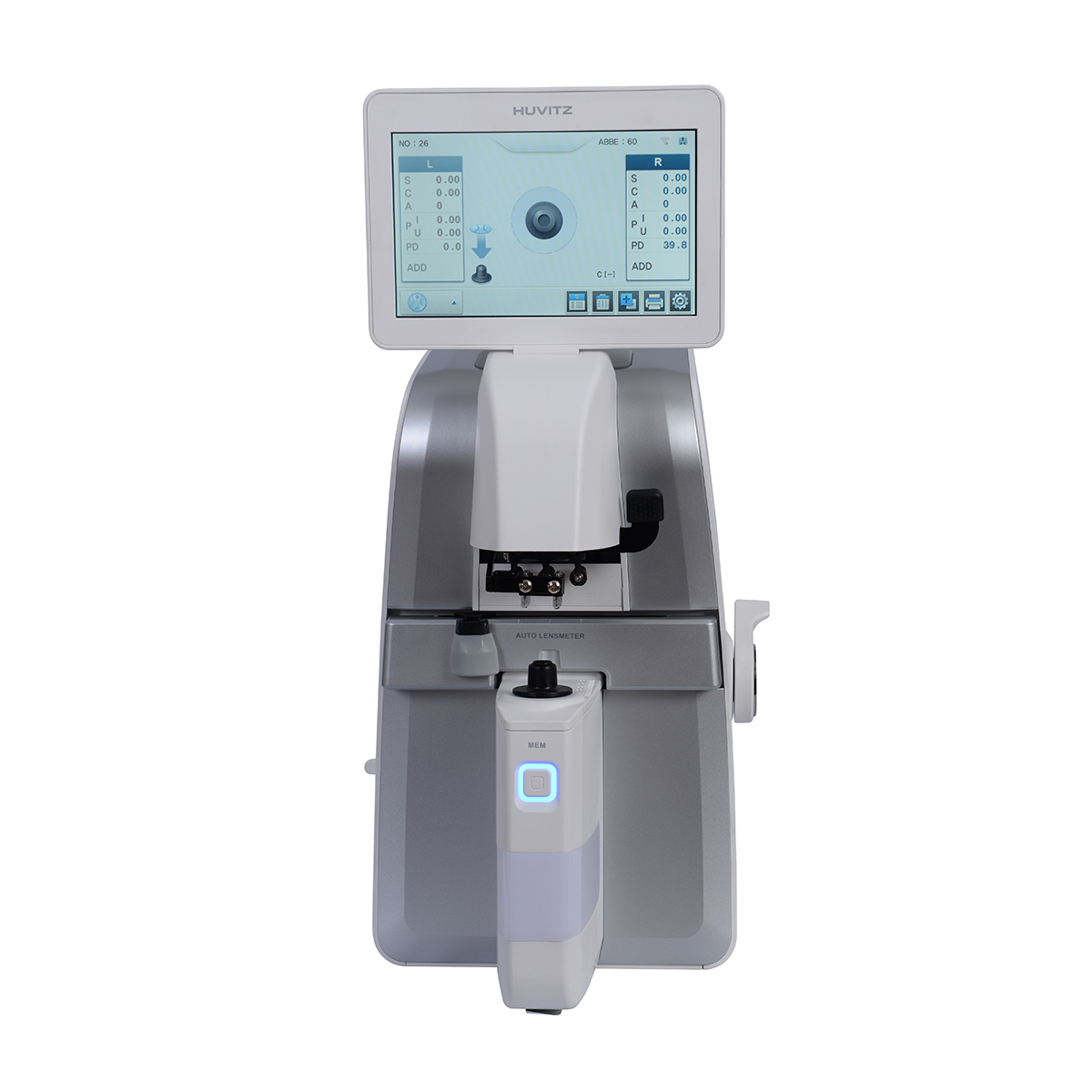

Huvitz Digital Lensmeter HLM-9000

The **HLM-9000** invites you to experience the superiority of its wavefront analysis technology with a Hartmann sensor and automatic lens recognition.
Its elegant curved design conveys a sense of stability and sophistication. With the HLM-9000, you will experience a level of satisfaction never seen before.

Unique in its category, the Huvitz HLM-9000 Automatic Lensmeter measures the harmful effects of LED screens through its Blue Light Hazard Measurement function.

Increase the overall efficiency of your practice and enhance the complete work experience with the HLM-9000, using Hartmann Sensor Wavefront Analysis Technology to maximize precision in multifocal and high-curvature lenses.

Talk to a specialist

Digital Measurement with High Precision

The HLM-9000 delivers fast and extremely accurate measurements for various types of ophthalmic lenses, ensuring reliability and efficiency throughout the optical process.

Automatic Lens Recognition

Its intelligent system automatically identifies monofocal, bifocal, and progressive lenses, streamlining workflow and reducing operational errors.

Modern and Intuitive Touchscreen Display

The large touchscreen display provides easy navigation, clear visualization of measurements, and a more comfortable and efficient user experience.

Compatible with Various Lens Types

Compatible with conventional, progressive, prismatic, and contact lenses, making the equipment a versatile solution for different optical applications.

Hartmann Wavefront Analysis Technology

The implementation of Hartmann wavefront analysis technology, with a greater number of measurement points, maximizes measurement precision, even in multifocal and high-curvature lenses.

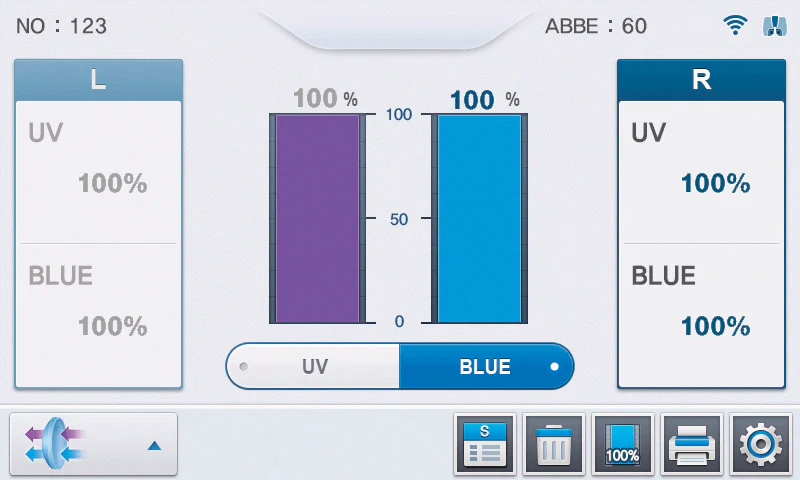

Blue Light Risk Measurement

With the increasing use of smartphones, LCD monitors and various electronic devices, the risk of blue light emitted by LED screens is recognized as one of the harmful radiations.
The HLM-9000 measures blue light transmittance in blue light filter lenses.

UV Measurement

Simple operation and clear visualization of UV transmittance facilitate understanding of the UV protection level in single vision lenses and sunglasses.

Multifocal lens measurement

Automatic recognition of multifocal lenses facilitates measurement through on-screen guidance; it also allows easy measurement of sunglasses and multifocal lenses with prism.

Enhanced Precision with Green Light Beam

The green light beam (545 nm), which is practically equivalent to the Fraunhofer e-line (546.1 nm) from ISO standards, provides greater measurement precision compared to conventional infrared light.

Automatic lens recognition

Monofocal, progressive, and other lens types are automatically recognized, and the device switches to the corresponding measurement mode.

Contact lens measurement kit

Allows measurement of rigid and soft contact lenses.
(Template for soft lenses: optional)

7″ color LCD screen

The wide screen, with a 178˚ viewing angle, minimizes fatigue and maximizes efficiency.

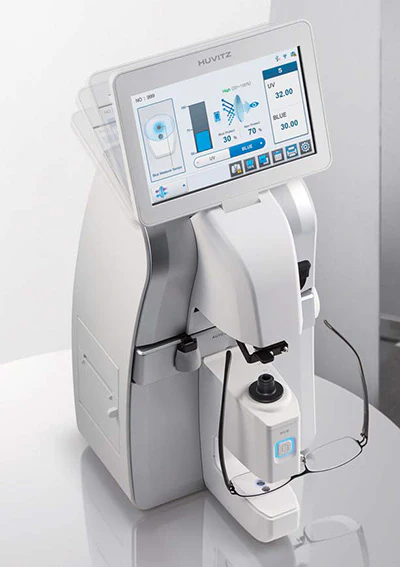

Wide tilt angle

The clear and bright display can be viewed from any direction thanks to its wide tilt angle.

Intuitive prism direction

The movement directions of the actual lens and the on-screen image are the same, avoiding any confusion during measurement.

Wireless Communication

Wi-Fi connectivity enables seamless data transmission with the HRK-9000A and HDR-9000 models, regardless of the working environment.

Classic wired communication via RS-232 is also available for data transmission with earlier models.

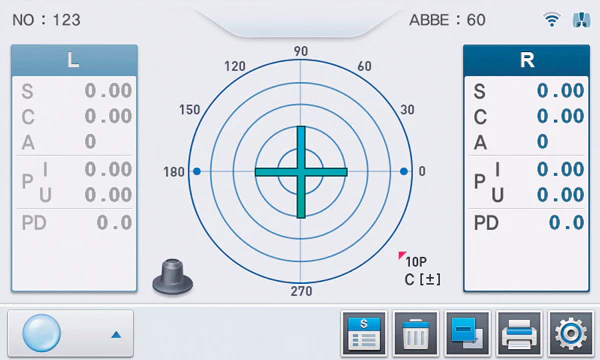

Simple and Intuitive GUI

The graphical interface, easy to understand at a glance, offers simple and user-friendly operation, allowing anyone to perform measurements easily without the need for specialized knowledge.

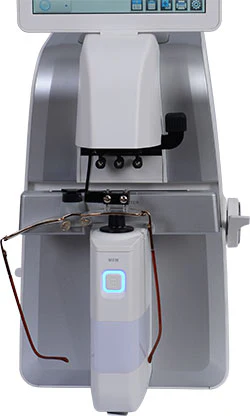

The minimized space between the PD bar and the nasal support allows for precise measurement of small bifocal or multifocal lenses across the entire lens surface.

Printer with automatic cutter

This fast and silent printer, with automatic cutting function, presents all data to the client quickly. The paper roll replacement is performed with a single touch.

Additional Storage

The additional upper compartment allows storing small accessories, preventing dust from entering thanks to its rubber material cover.

System Network Integration



Specifications

Manuals & Catalogs

Catalogs

Huvitz Digital Lensmeter HLM-9000

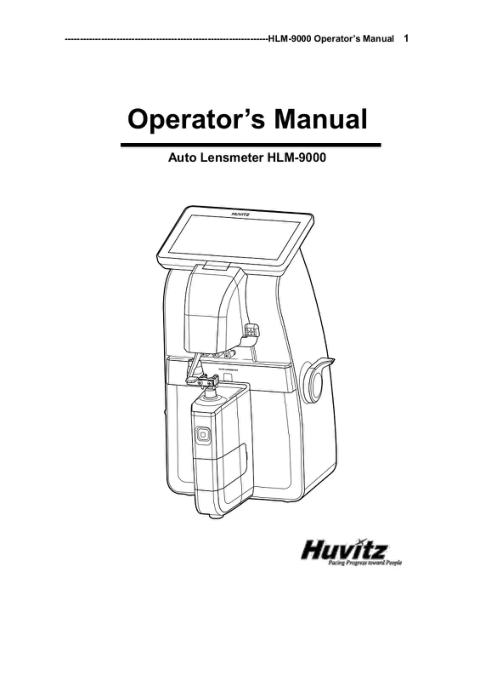

Manuals

Huvitz Digital Lensmeter HLM-9000
