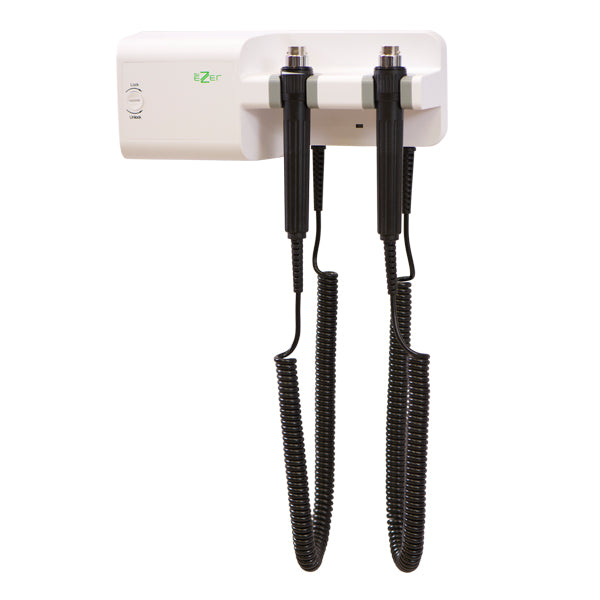

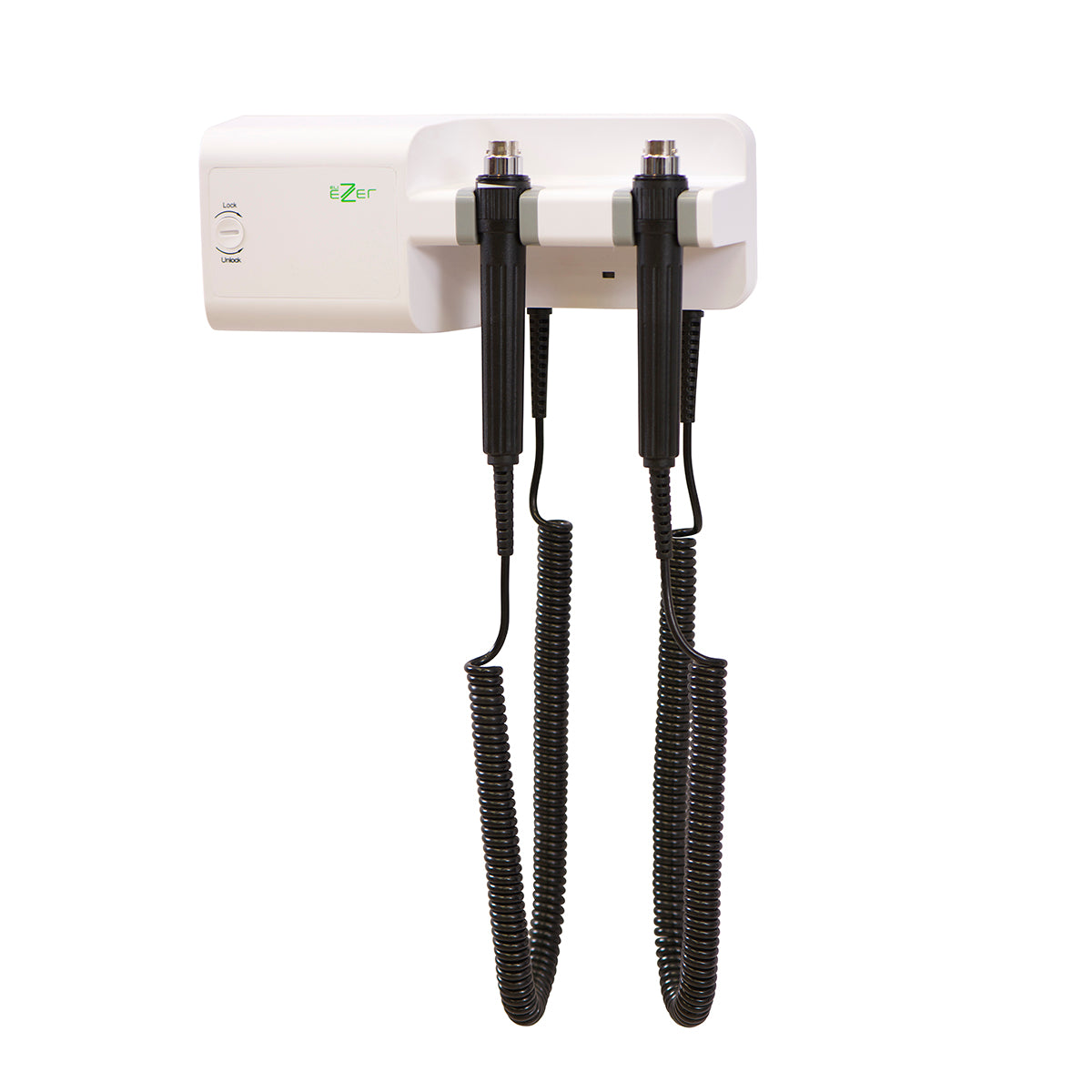

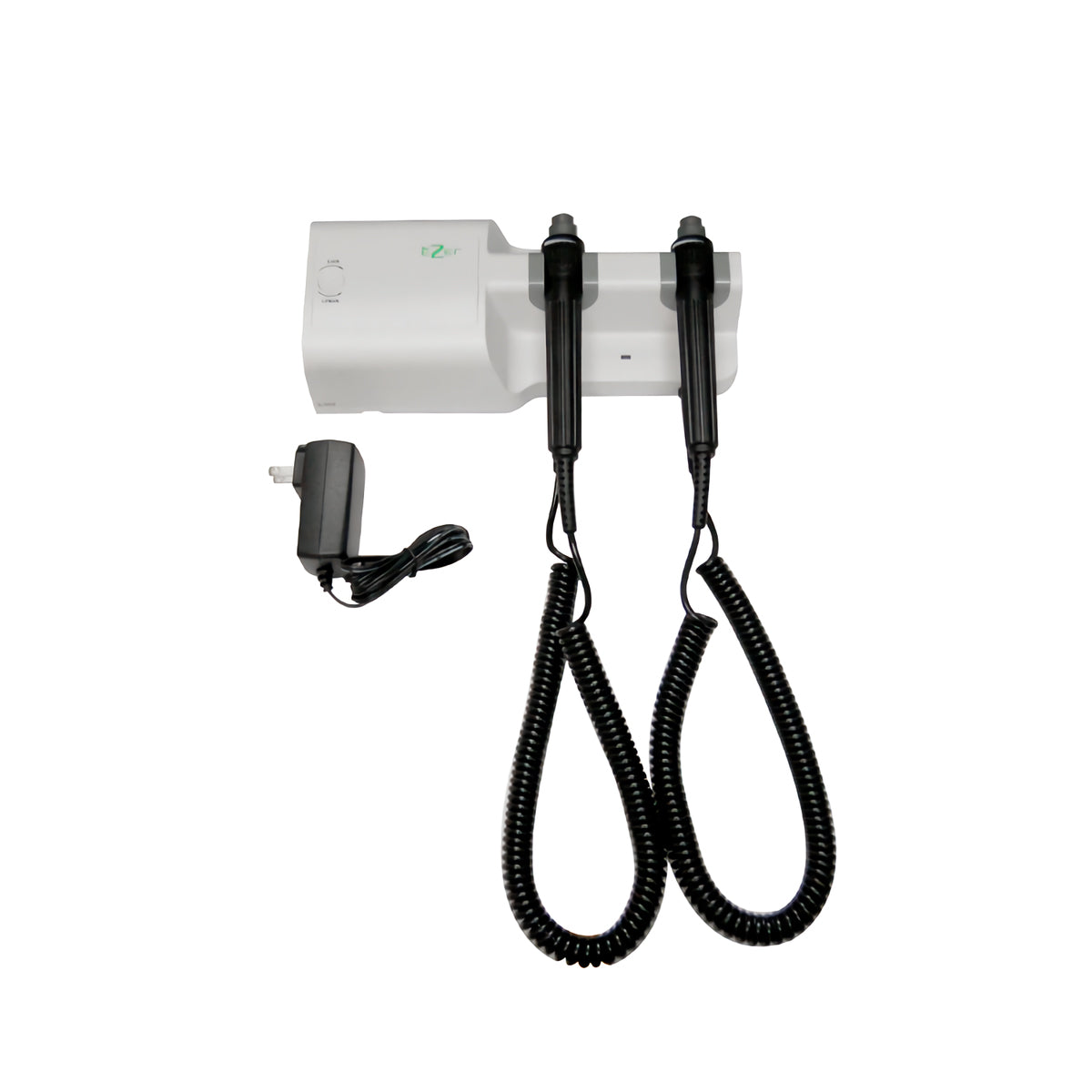

Ezer Wall Unit Transformer EZ-WTC-5200 DC

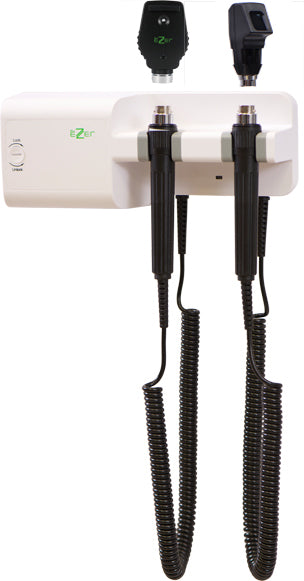

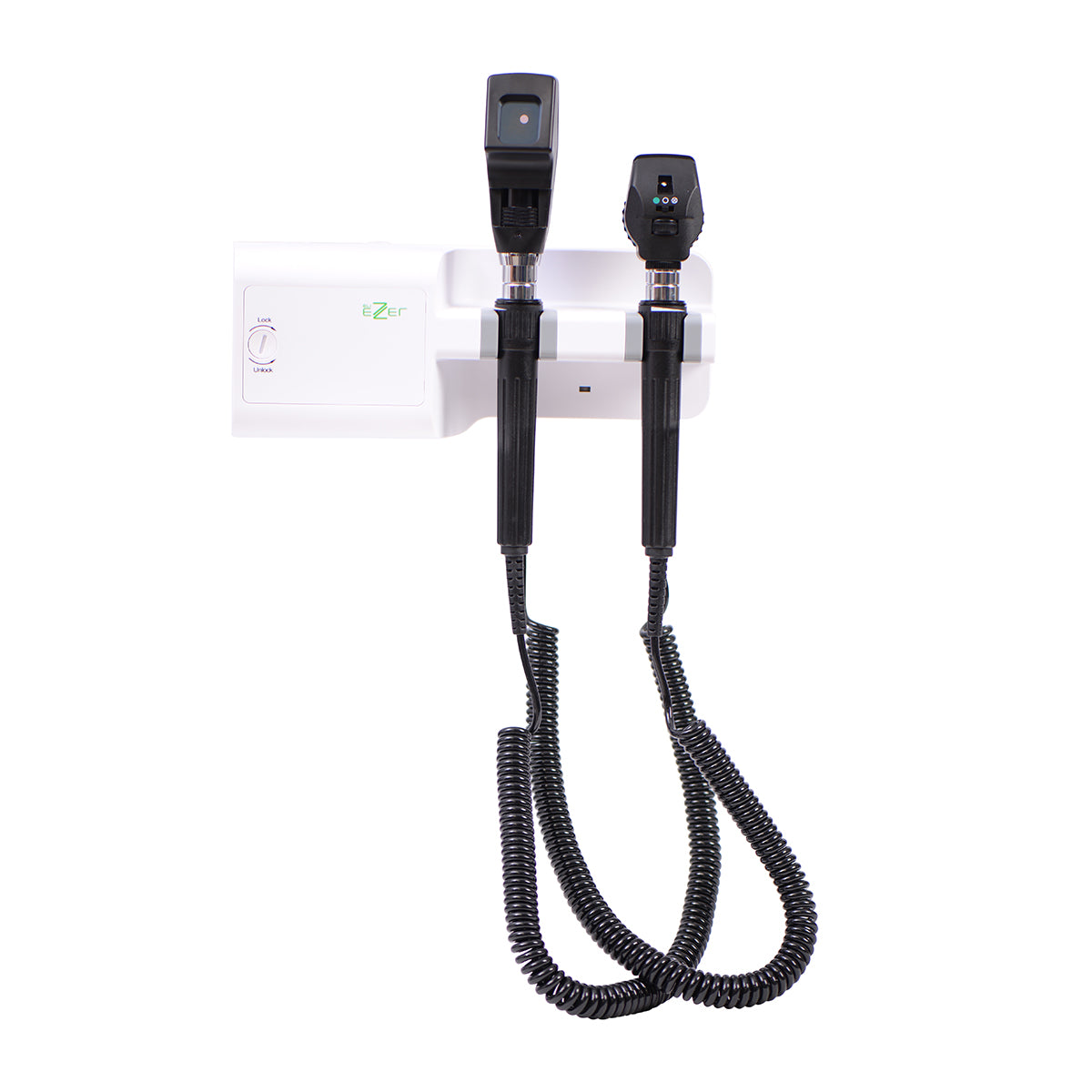

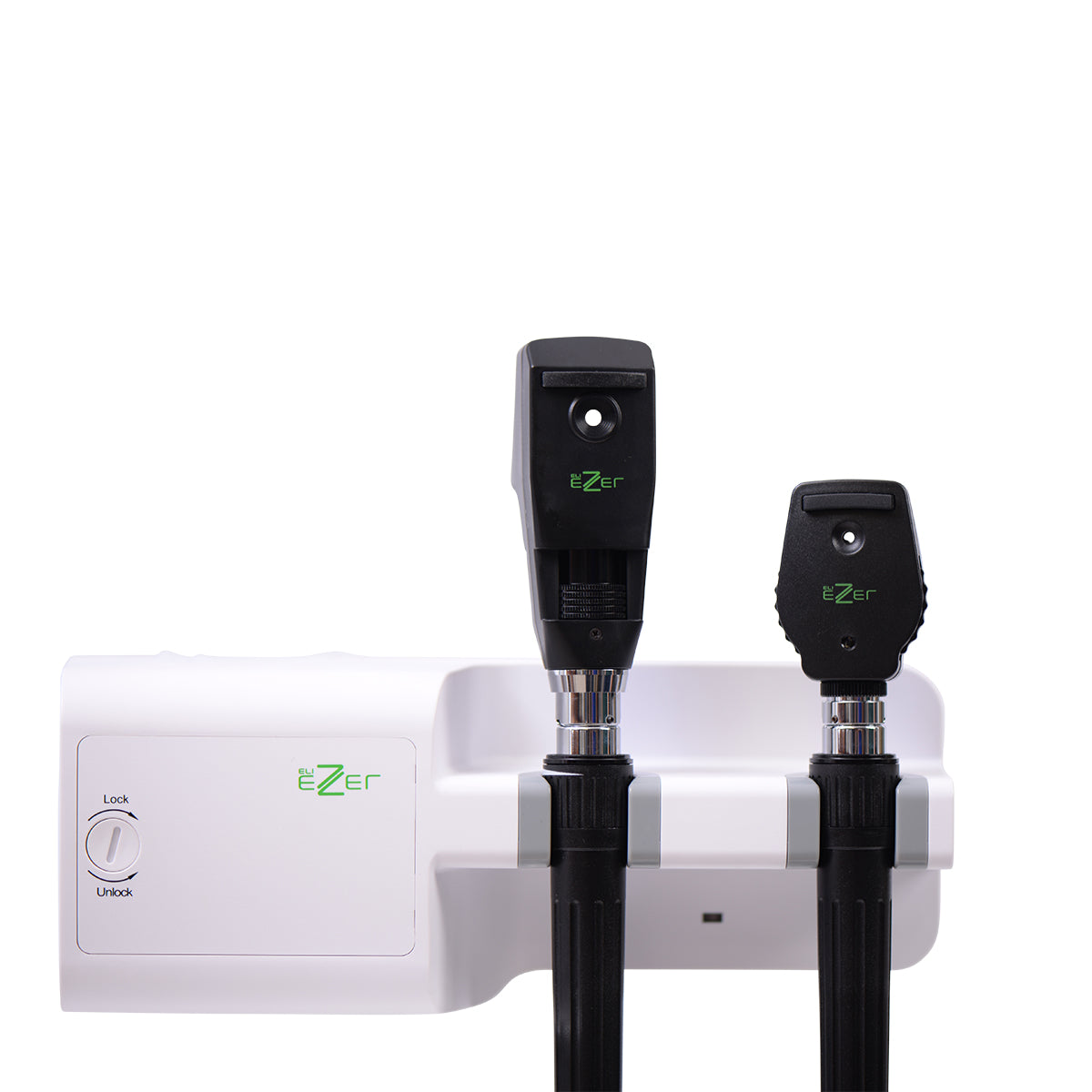

The Ezer EZ-WTC-5200 Diagnostic Wall Unit Transformer with DC battery C and AC power supply provides safe and reliable energy for all your most important diagnostic tools, including ophthalmoscope, retinoscope, and otoscope units. This Ezer wall-mount transformer is the perfect choice for your clinic or office, especially when combined with other high-quality Ezer products. This advanced power supply can power ophthalmoscope, retinoscope, and otoscope units. (NOTE: Ophthalmoscope, retinoscope, otoscope, and other heads are sold separately)

Talk to a specialist

Dual AC and battery power supply

Works with alternating current or 3 type C batteries, ensuring continuous operation during power outages and allowing flexible installation on walls away from electrical outlets or on mobile rolling stands.

Automatic power on/off sensors

Both handles feature sensors that automatically activate and deactivate the lamps when removed or placed back, providing energy savings, extended bulb lifespan, and reduced cross-contamination without contact with switches.

Safe AC to DC Conversion

The transformer converts alternating current into clean, reliable direct current, providing safe, high-quality power supply for delicate diagnostic instruments such as ophthalmoscopes, retinoscopes, and otoscopes.

Coiled cables with maximum reach and flexibility

Both handles include specially designed coiled cables that provide maximum stretch and flexibility, allowing you to reach any corner of the examination room with complete comfort.

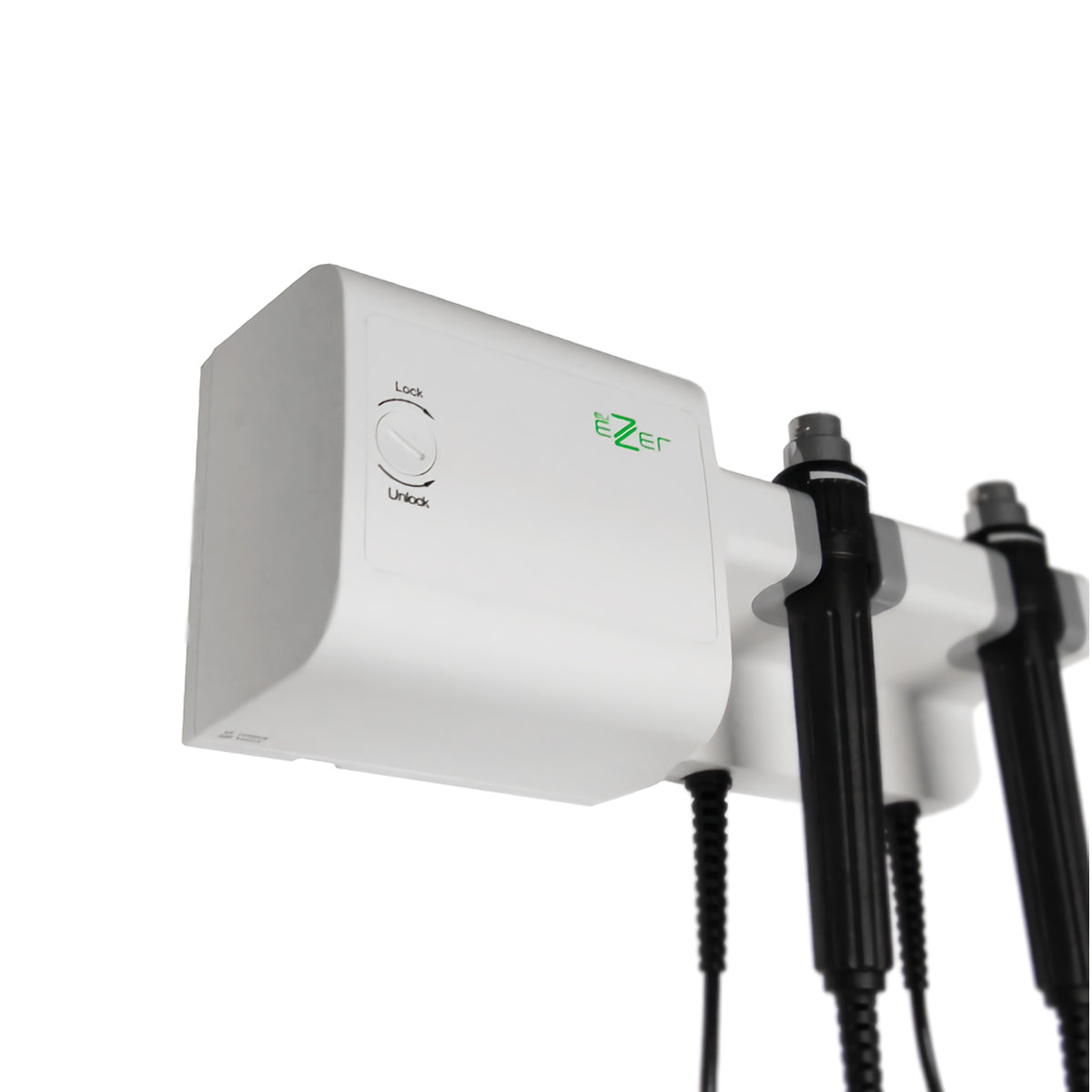

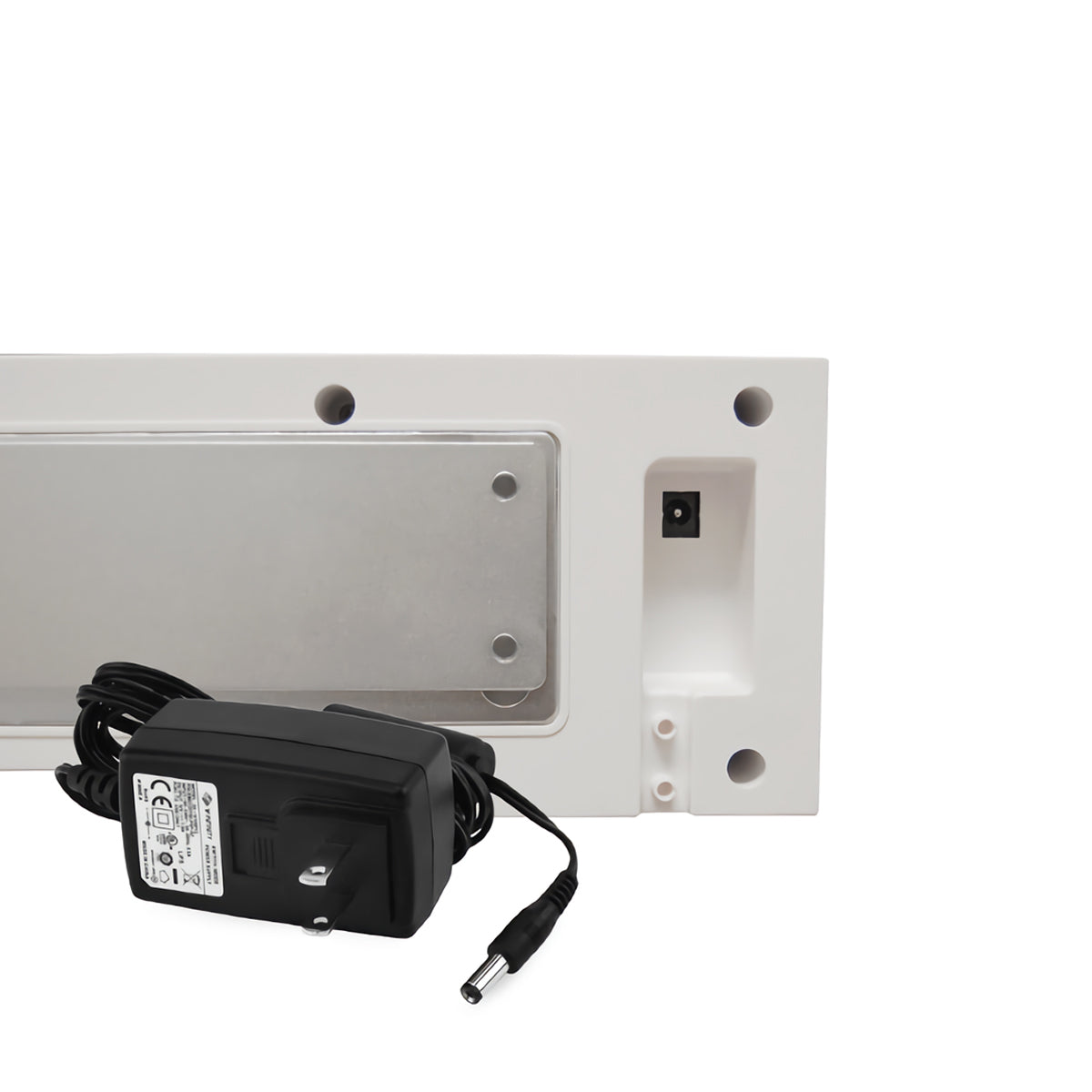

The Ezer EZ-WTC-5200 offers a safe method for supplying high-quality power to your most important diagnostic tools. The unit mounts conveniently on the wall, with a long power cable that can reach almost any point in your office and plugs into a standard power outlet. The transformer converts the alternating current (AC) from the wall unit into a reliable and clean direct current (DC), which can be used to power your most delicate medical instruments.

Includes two handles with integrated output ports, which can be used to connect other Ezer diagnostic equipment or any compatible medical device (LED head). Each handle has been manufactured with a specially designed spiral power cable that offers maximum extension and flexibility, allowing you to reach every corner of the room with your equipment.

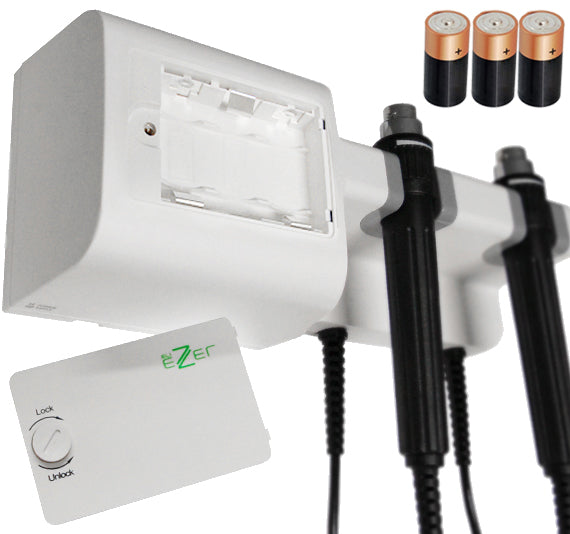

This diagnostic unit can also be powered by 3 type C batteries, which allows it to:

▪ operate normally during a power outage;
▪ be mounted on walls away from AC power outlets;
▪ or be mounted on standard medical wheeled stands, for great flexibility and convenience.

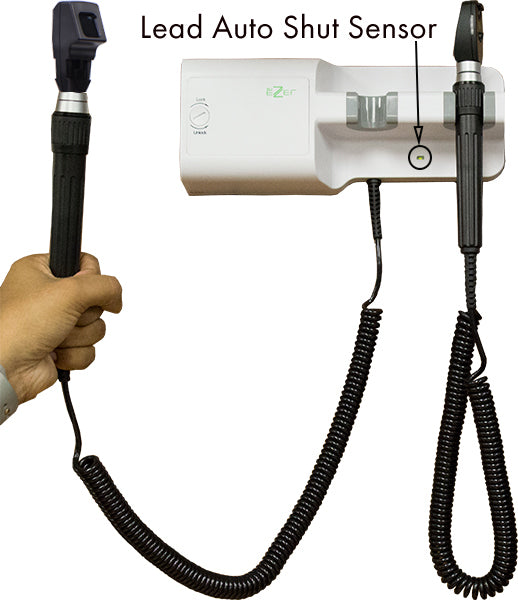

The unit features automatic on/off sensors on both handles, which automatically turn the bulbs on and off when the handles are removed from or placed back on the unit. This translates into greater convenience for the professional, energy savings, and extended bulb life. Additionally, it helps reduce cross-contamination by eliminating the need to touch a power switch.

Don’t wait any longer! The flexibility, power, and reliability of this Ezer EZ-WTC-5200 DC Diagnostic Wall Unit Transformer, with C batteries and AC power supply, make it the perfect choice for your office or practice.

Specifications

Electrical Specifications
Nominal Input Voltage

5VDC for adapter 4.5VDC for three LR14 alkaline batteries (size 'C')
Output

2x3.5 V / 200 mA
Operating Mode

Intermittent: on-time must not exceed 5 min with off-time no less than 2 min
Electrical Safety

Compliant with EN60601-1 / EN60601-1-2 Protection: Internal electrical power supply Class II IPX0
Environmental Requirements
Operation

Operation
Ambient Temperature

+10 °C - +35 °C
Relative Humidity

30% - 75%
Relative Humidity

700 hPa - 1060 hPa
Shipping

Common Shipping
Storage
Temperature

-40 °C - +55 °C
Relative Humidity

10% - 90%
Air Pressure

500 hPa - 1060 hPa

Ezer Wall Unit Transformer EZ-WTC-5200 DC

Dual AC and battery power supply

Automatic power on/off sensors

Safe AC to DC Conversion

Coiled cables with maximum reach and flexibility

Specifications

Electrical Specifications

Nominal Input Voltage

Output

Operating Mode

Electrical Safety

Environmental Requirements

Operation

Ambient Temperature

Relative Humidity

Relative Humidity

Shipping

Storage

Temperature

Relative Humidity

Air Pressure

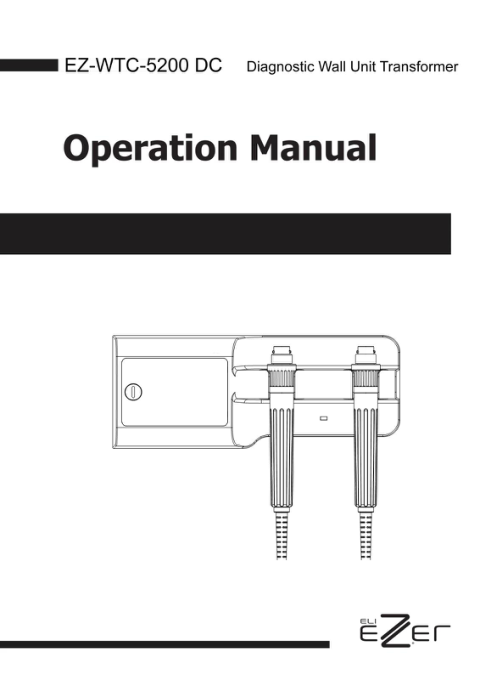

Manuals & Catalogs
