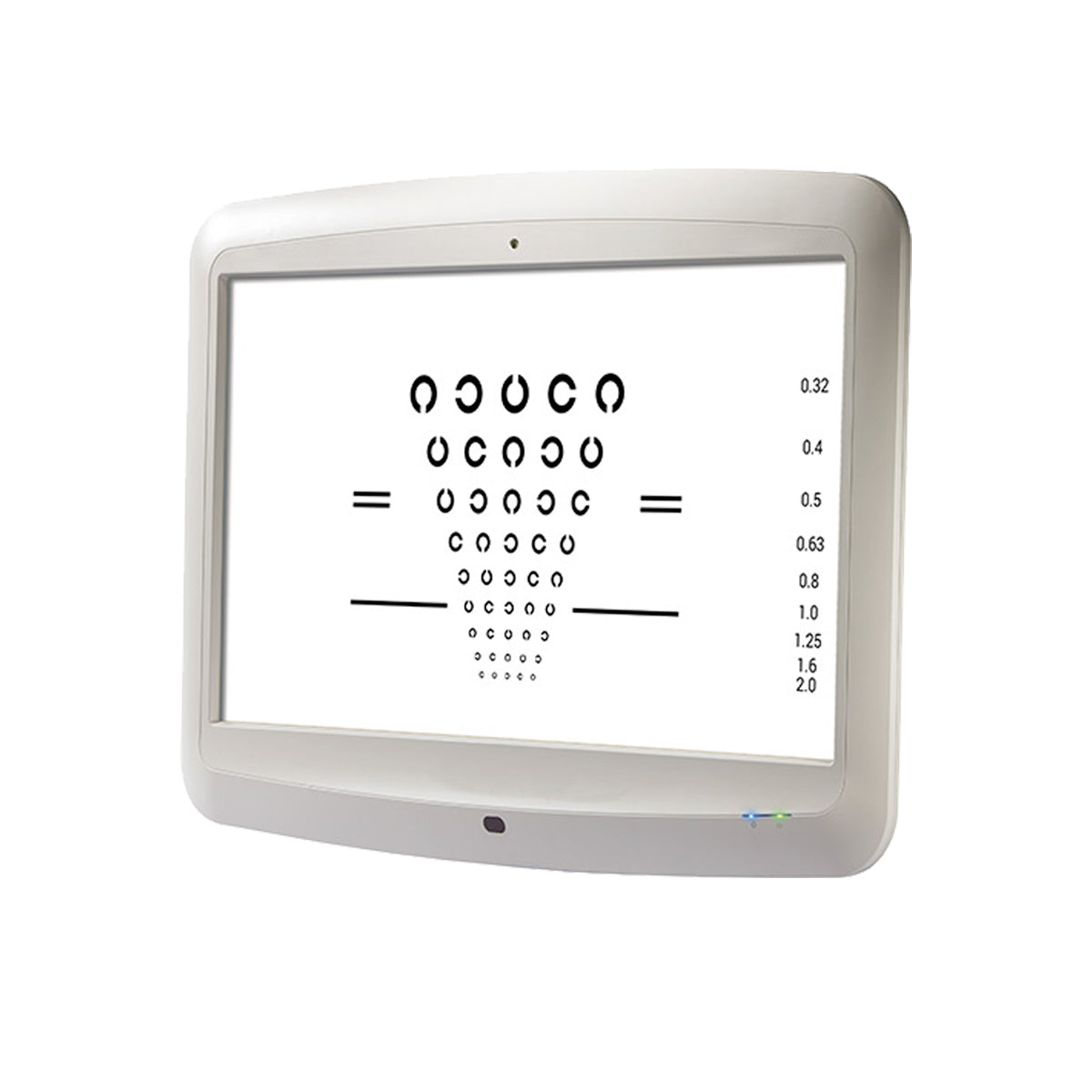

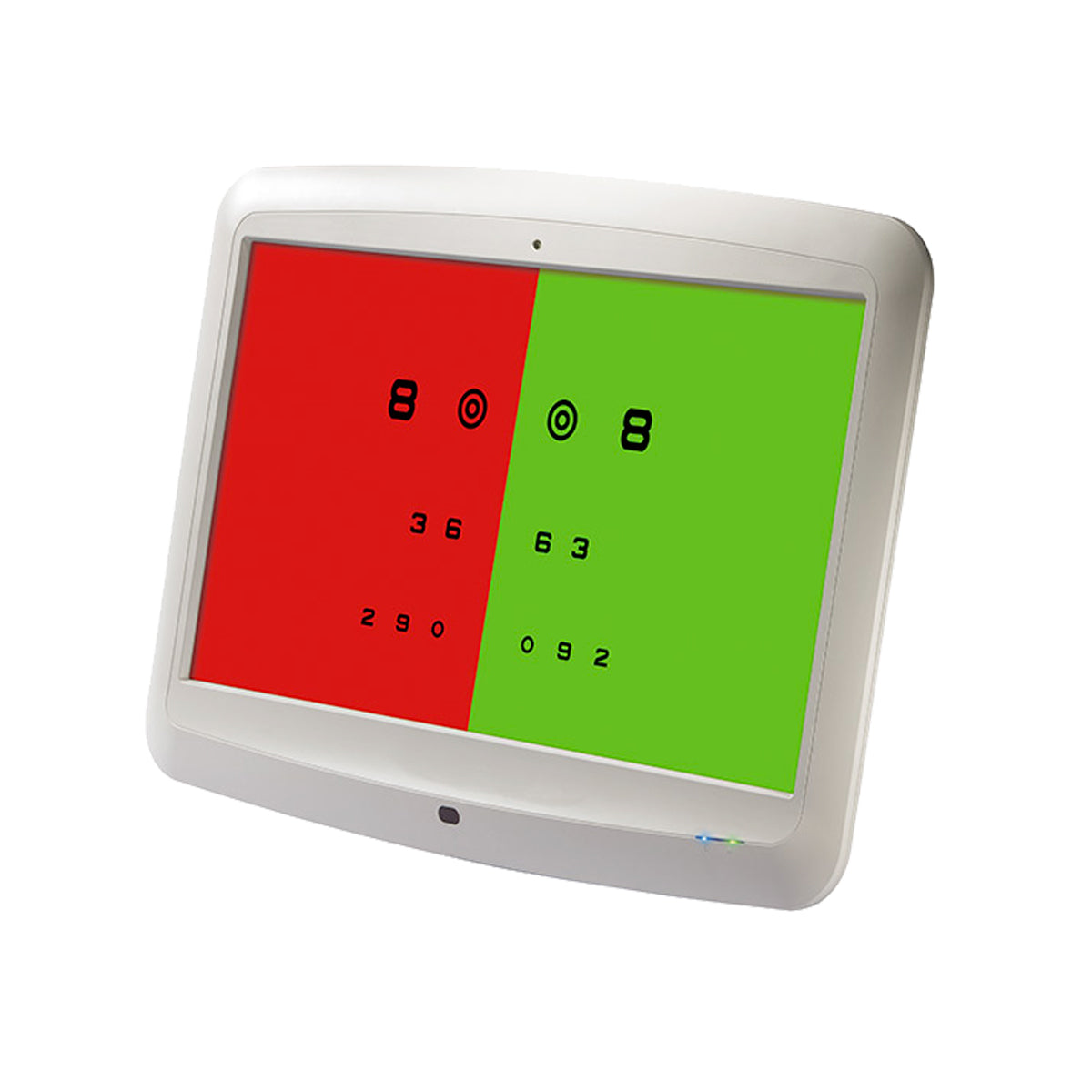

The EZER EDC-BH P LCD Acuity Chart is a dedicated refraction device that provides precise and accurate visual acuities. The slim design facilitates wall installation and the modern 24-inch LCD monitor enhances the examination experience.
The EZER EDC-BH P LCD Acuity Chart is a dedicated refraction device that provides precise and accurate visual acuities. The slim design facilitates wall installation and the modern 24-inch LCD monitor enhances the examination experience.
Modern high-resolution LCD monitor (1920x1080) featuring a 16.7M-color TFT panel at 250cd/m², delivering sharp, precise images for reliable diagnostics. Its slim design facilitates wall mounting and enhances the overall aesthetics of the examination room.
Includes more than 7 chart types: astigmatism (fan and block), ETDRS with letters and numbers, Amsler for macular degeneration, color vision test, and reverse mode for post-LASIK and cataract patients. Enables comprehensive and precise examinations in optometry.
Configurable testing distance from 1.0m to 6.0m in 0.1m increments, with a visual range of 0.05 to 2.0. Provides full flexibility to adapt to different office spaces and diagnostic needs.
Intercommunication system via RS-232 (wired) and Bluetooth (wireless), compatible with the EDR-H phoropter. Includes customizable programs, Full HD video playback from USB, 96-step R/G adjustment, and configurable promotional screens.
OPTOMETRY

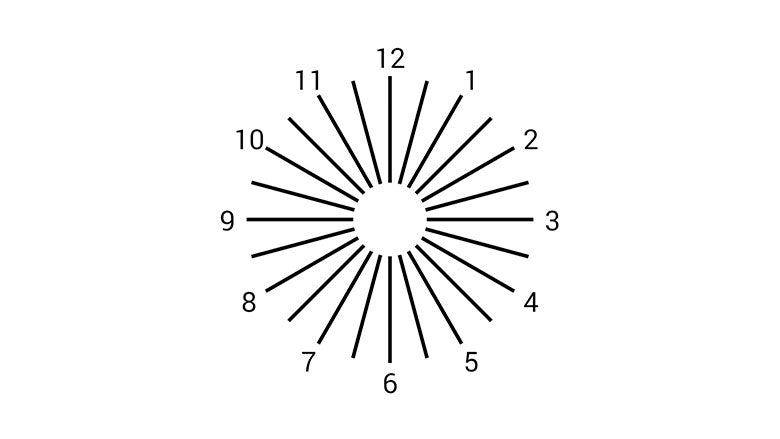

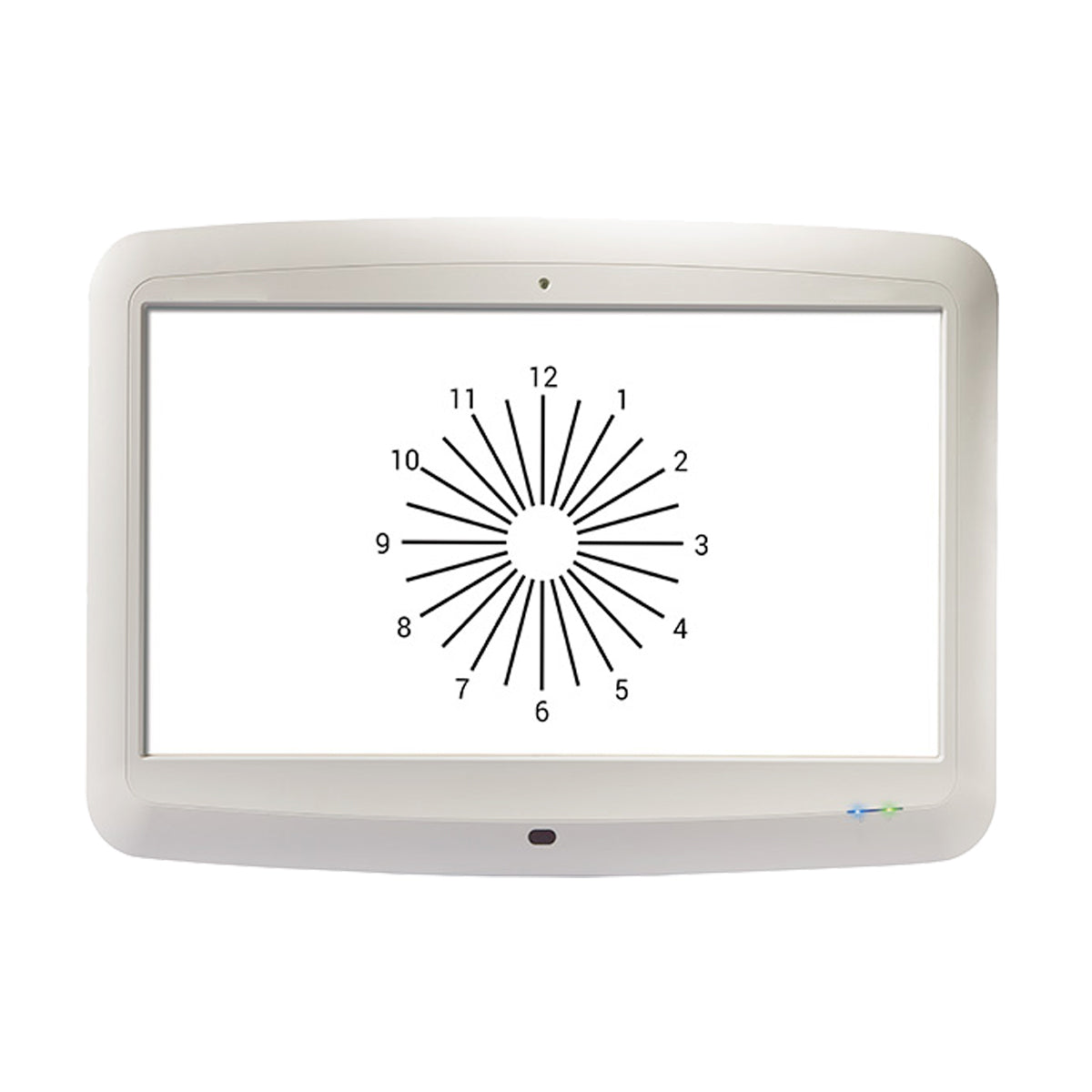

Diversified Astigmatism Test Chart
Expanded diagnostic environments with multiple charts (7 types).
OPTOMETRY

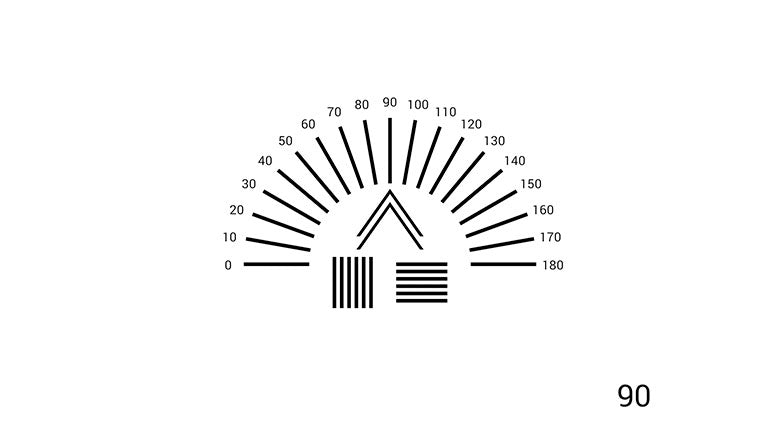

Fan and Block Charts for Astigmatism
The incorporation of fan and block charts into the general astigmatism testing functions allows for a more precise evaluation of astigmatism.
OPTOMETRY
Reverse mode for LASIK surgery and cataract patients
OPTOMETRY

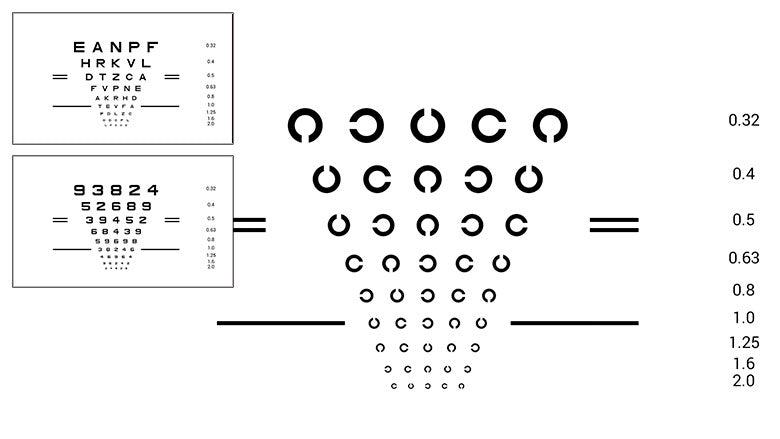

Diversified ETDRS Test Chart The newly added letter- and number-based charts provide a wide range of diagnostic environments.
OPTOMETRY

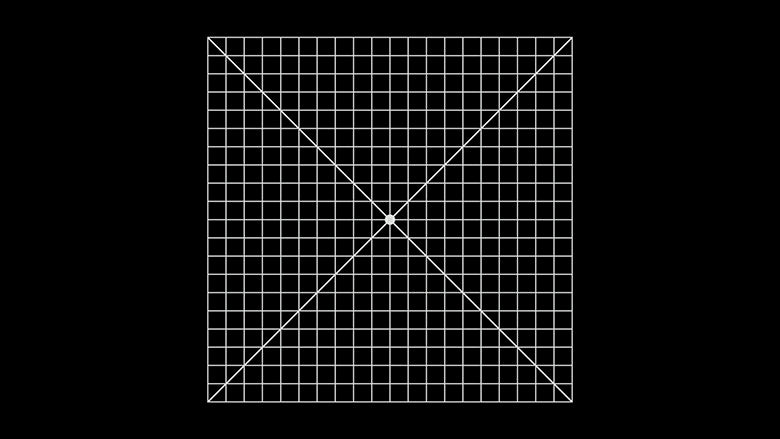

Amsler Grid Vision Test Chart for Macular Degeneration
Enhanced Maddox Rod Test
Integrated Fixation Target Lamp for the Maddox test provides 10 brightness levels.
Full-HD Video Playback
High-resolution animated video playback helps capture the attention of children or babies who are easily distracted, enabling an intensive examination. Play full HD video from a USB drive and control it via remote control.

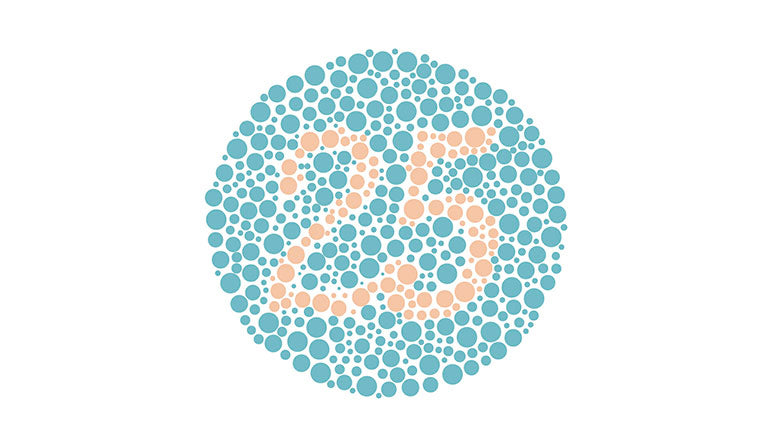

Multicolor Color Blindness Test Table
CONVENIENCE
Smart LCD Full HD Optotype System
– 24-inch high-resolution (Polaroid) optotype – Full-HD TFT-LCD panel (1980X1080) / 16.7M Colors 250cd/㎡
Wide Range of Tests
The high-resolution LCD screen allows a wide range of tests from 0.05 ~ 2.0
Adjustable Test Distance
The test distance is adjustable from 1.0m ~ 6.0m in increments of 0.1m
INTELLIGENT Intercommunication
Compatible with RS-232 interface (Wired) and Bluetooth (Wireless) for compatibility with EDR-H.
Basic Test / User-Modifiable Program
Provides the basic Program A and Program B offering programming of up to 40 steps.

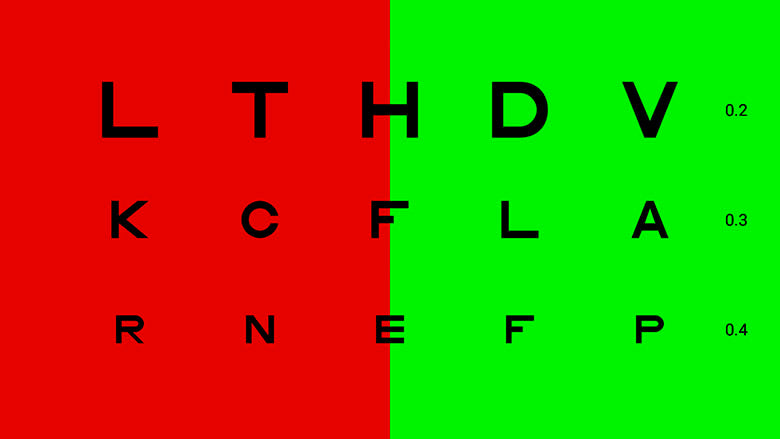

Enhanced R/G Filter Adjustment
An extended R/G adjustment range of up to 96 steps allows the optometrist to optimize the display to perfectly suit the environment and perform reliable binocular vision tests.
Promotional Videos on Playback
During energy-saving mode, the LCD backlight turns off to minimize power consumption, and promotional videos for clinics and optical shops can be played on an LCD screen.
Easy-to-Use Functions
Contrast, Mirror, Mask.
Customizable Home Screen and Slides
(up to 38 slides)
1.0~6.0m (Unit: 0.1m)
Landolt Ring, Alphabet, Numbers, Snellen, Images, Mask (Vertical, Horizontal, Single Letter), RG Chart / Polarized Chart, Color Blindness, Amsler Grid
Up to 40 optotypes
USB (USB2.0), RS-232
Wired: RS-232 Wireless: Bluetooth
24in Full-HD (Resolution: 1920x1080), PLC-8000
Android 4.4.2
Micro SD Card (8G)
1.5W
AVI, MPEG, MP4, MKV
AC100-240V, 50/60Hz
35-45VA
Body: 23(W) x 3(D) x 17(H) in(583(W) x 55(D) x 423(H) mm) Remote control: 3(W) x 8(D) x 1(H) in (64(W) x 196(D) x 20(H) mm)
Body: Approximately 13.2lb / 6kg, Wall Mount: 0.81lb / 370g, Remote Control: 160g (Battery included)
(In use) Temperature: +10 ~ +40 Humidity: 30%RH ~ 85%RH Pressure: 700hPA ~ 1060hPA (During transport/storage) Temperature: -10 ~ +55 Humidity: 10%RH ~ 90%RH Pressure: 600hPA ~ 1060hPA
