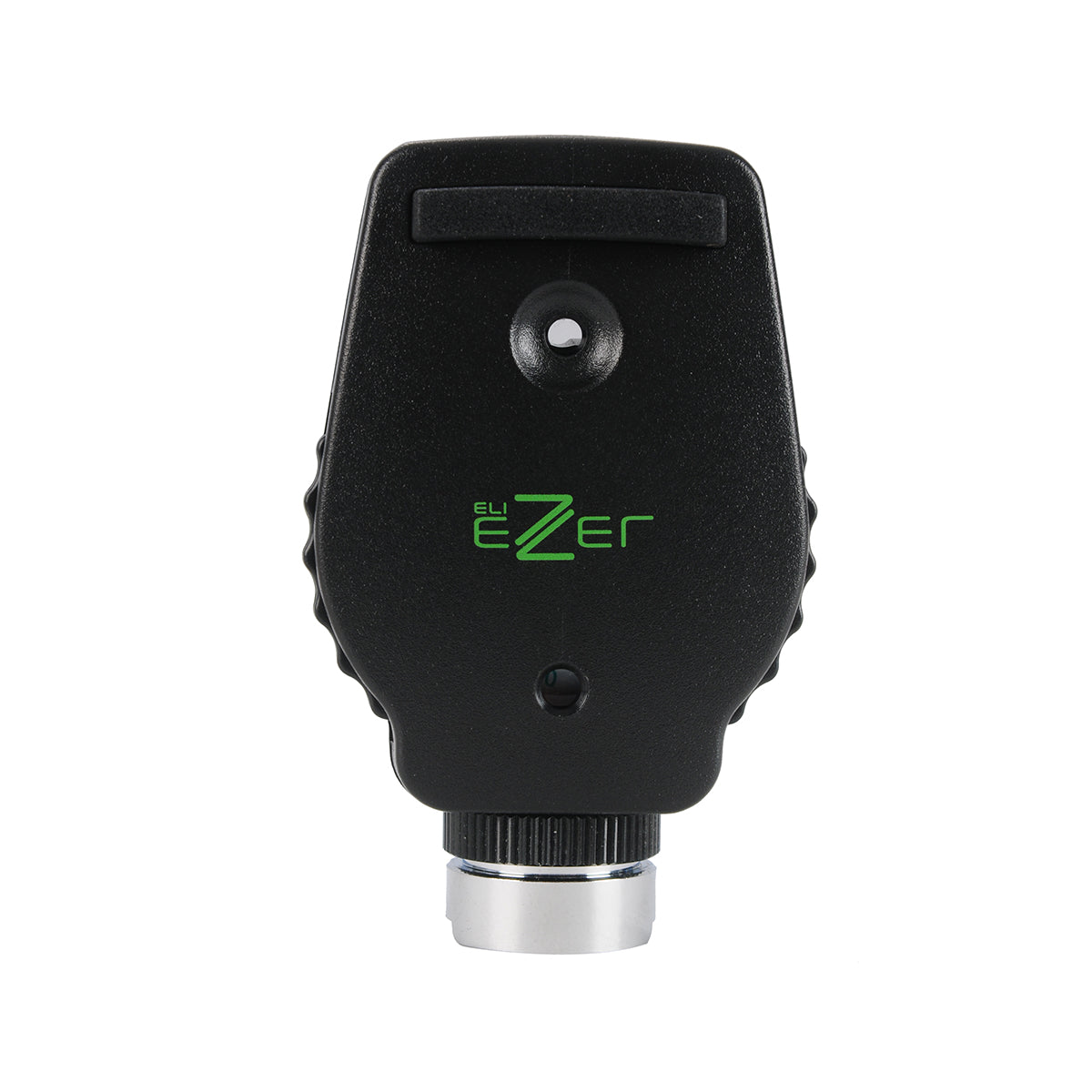

Ezer Coaxial Ophthalmoscope EZ-OPH-2600

Any ophthalmology clinic understands the importance of having quality equipment to ensure excellent patient care. That is why the use of a high-quality ophthalmoscope allows professionals to evaluate the structures of the eye without the need for dilation. This is precisely what the portable device EZ-OPH-2600 achieves, as it combines 28 focusing lenses to deliver precise, high-quality resolution during ocular examinations. The Ezer OPH-2600 makes examinations more comprehensive during assessments on non-dilated pupils, even in the presence of cataracts, as it includes two filter options to achieve the optimal light level.

Talk to a specialist

Coaxial optics for precise diagnostics

Coaxial optics eliminates shadows by aligning the light axis with the viewing axis, facilitating entry into undilated pupils and vitreous disorders. It enables more precise examinations and accurate diagnoses.

28 focusing lenses for maximum resolution

Combines 28 focusing lenses that achieve precise, high-quality resolution during ocular evaluation. Ensures comprehensive examinations even in non-dilated pupils with cataracts.

18 aperture and filter combinations

Offers 18 unique aperture and filter combinations for enhanced diagnostic versatility. Includes essential filters such as cobalt blue, linear cross-polarization, and red-free light.

Halogen lamp 3.5V superior illumination

The 3.5V halogen lamp provides true tissue color rendering and consistent, long-lasting illumination. Selectable option between halogen and LED according to operator preference.

Coaxial Optics

The coaxial optics directs the light axis to align with the visual axis at the retina, thereby eliminating potential shadows. This optical system facilitates access to undilated pupils and vitreous disorders through a lamp filament and high-precision optical alignment. This enables more accurate examinations and diagnoses.

18 unique aperture and filter combinations

This high-end device also features 18 extraordinary unique aperture and filter combinations, for greater versatility. Having a variety of filters provides optimal light levels for entry into both healthy eyes and eyes with cataracts. This device includes essential diagnostic filters such as: Cobalt Blue, Linear Cross-Polarization / Red-Free.

Apertures and Filters

▪ Micro-Spot Aperture: allows quick access to small, undilated pupils.
▪ Small Aperture: provides an excellent view of the fundus through an undilated pupil.
▪ Large Aperture: standard aperture for dilated pupils and general eye examination.
▪ Fixation Aperture: features a graduated reticle for measuring eccentric fixation or locating lesions.
▪ Slit: used to determine the depth levels of lesions and tumors.
▪ Cobalt Blue Aperture: blue filter used with fluorescein dye to easily visualize small lesions, abrasions, and foreign bodies.
▪ Red-Free Filter: excludes red rays from the examination field to easily identify veins, arteries, and nerve fibers.

Halogen Lamp 3.5V

The remarkable 3.5V halogen lamp of the EZ-OPH-2600 provides a light emission that reveals the true color of tissue, with consistent and long-lasting illumination. The device’s lamp type is a selectable option between Halogen and LED according to the operator’s preference.

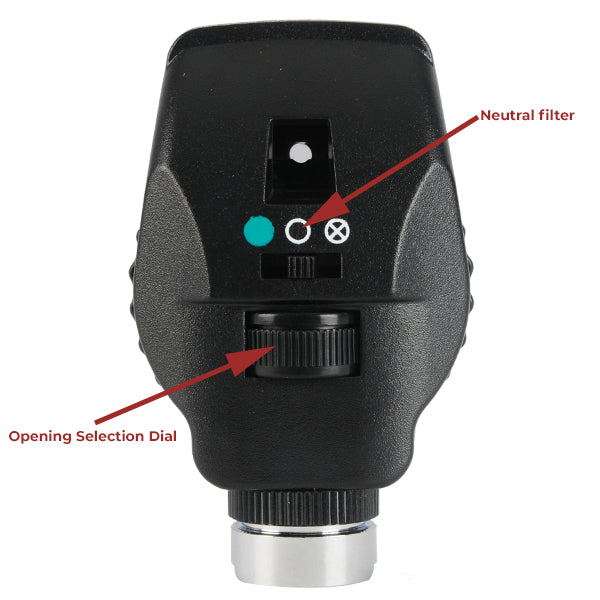

Aperture Selection Dial

Offers six standard apertures. Neutral Filter Provides the ideal amount of HPX™ halogen light to enter healthy eyes without unwanted reflections.

Can be part of the following kits:

Kit 1

Includes: EZ-OPH-2600, EZ-RET-2600, EZ-HND-2600, EZ-CHG-3600, EZ-OPH/RET-CASE

Kit 2

Includes: EZ-OPH-2600, EZ-RET-2600, EZ-HND-700 (2)

Kit 3

Includes: EZ-OPH-2600 (Lamp Type: Halogen), EZ-RET-2600 (Lamp Type: Halogen), EZ-WTC-5200 DC Kit 4 Includes: EZ-OPH-2600 (Lamp Type: LED), EZ-RET-2600 (Lamp Type: LED), EZ-WTC-5200 DC



Specifications

Manuals & Catalogs

Manuals

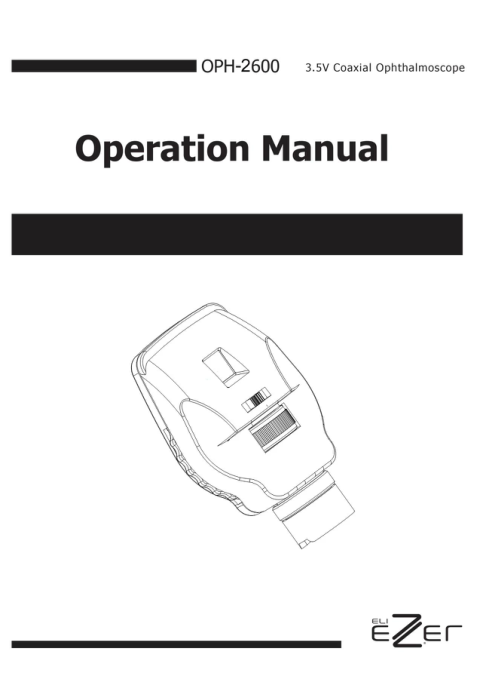

Ezer Coaxial Ophthalmoscope EZ-OPH-2600
