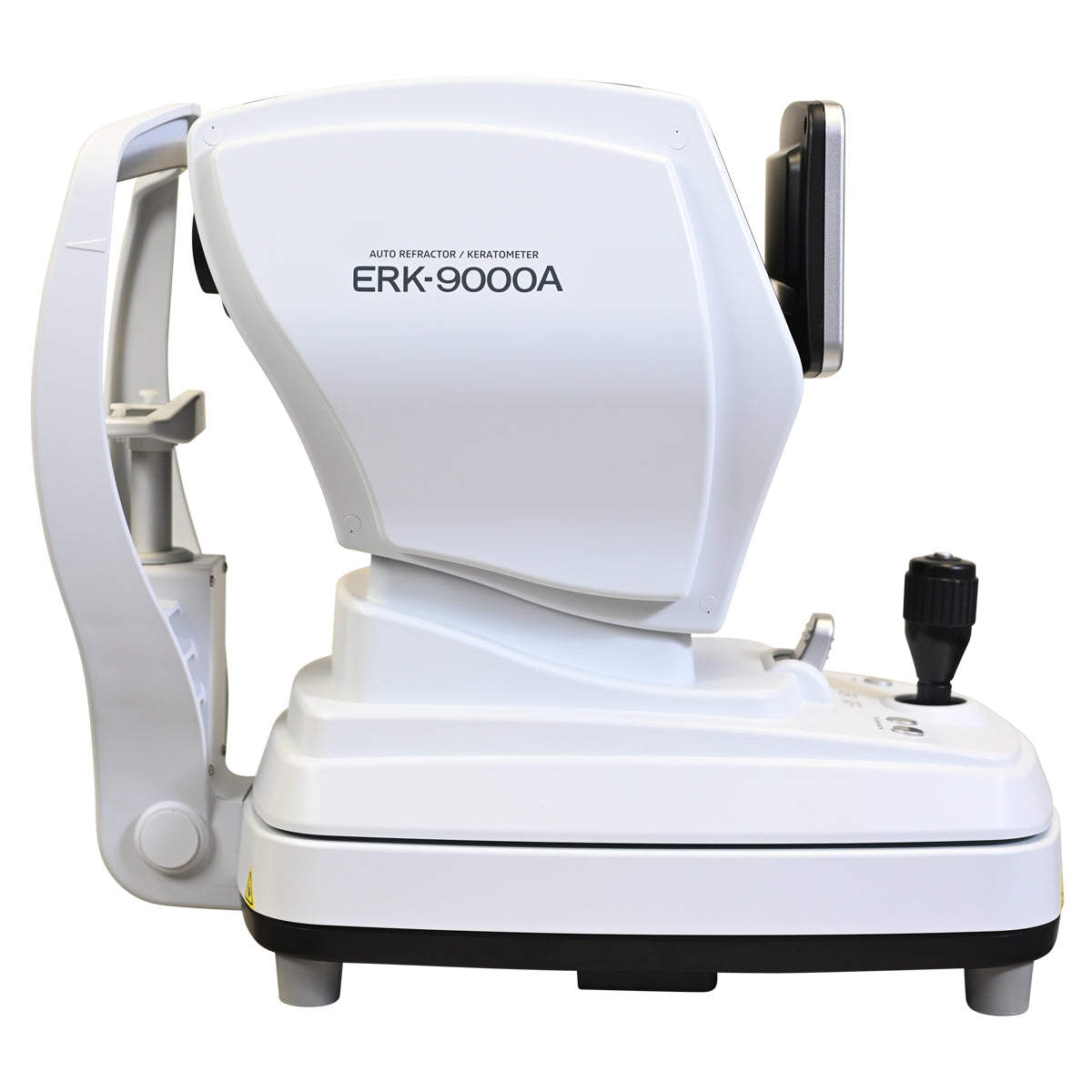

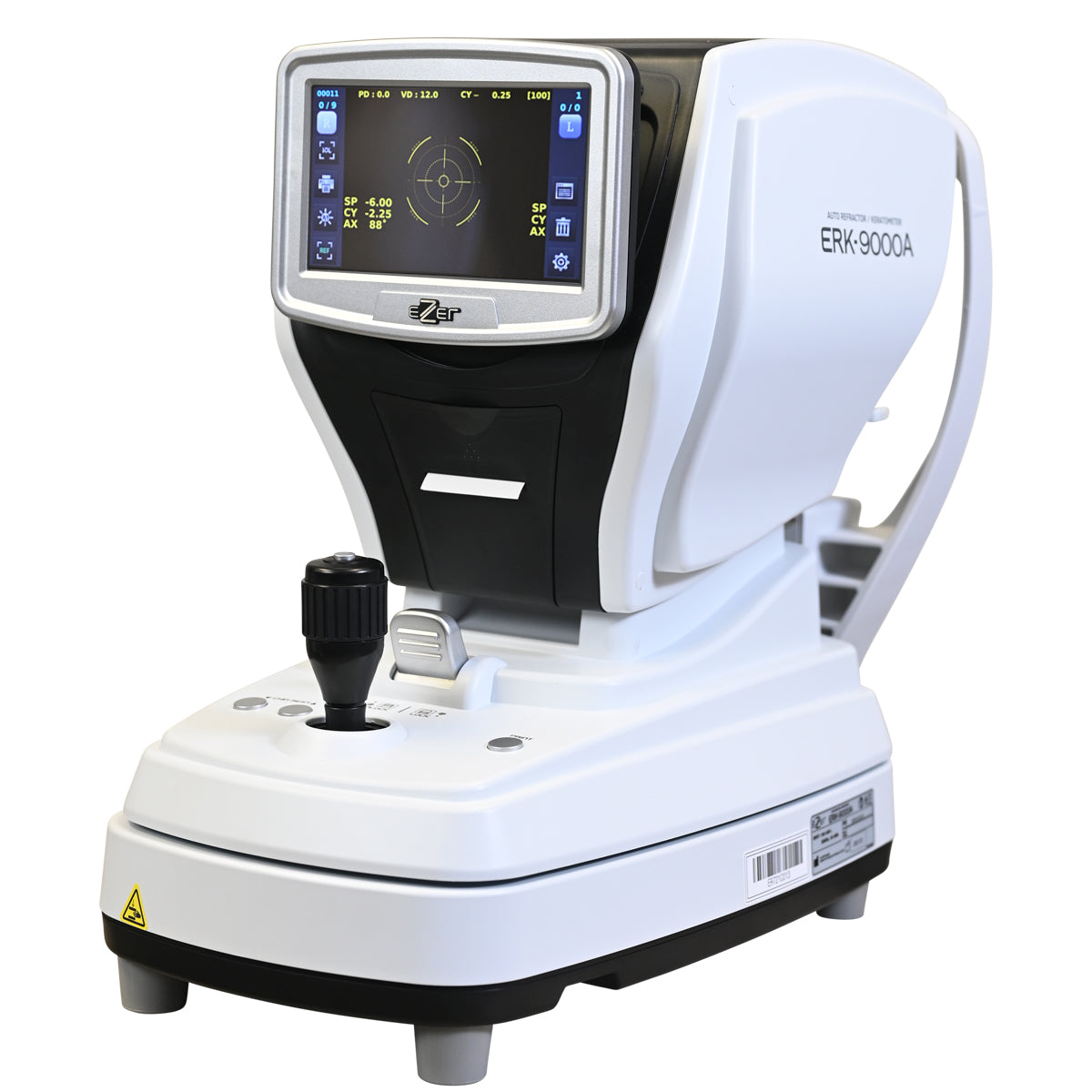

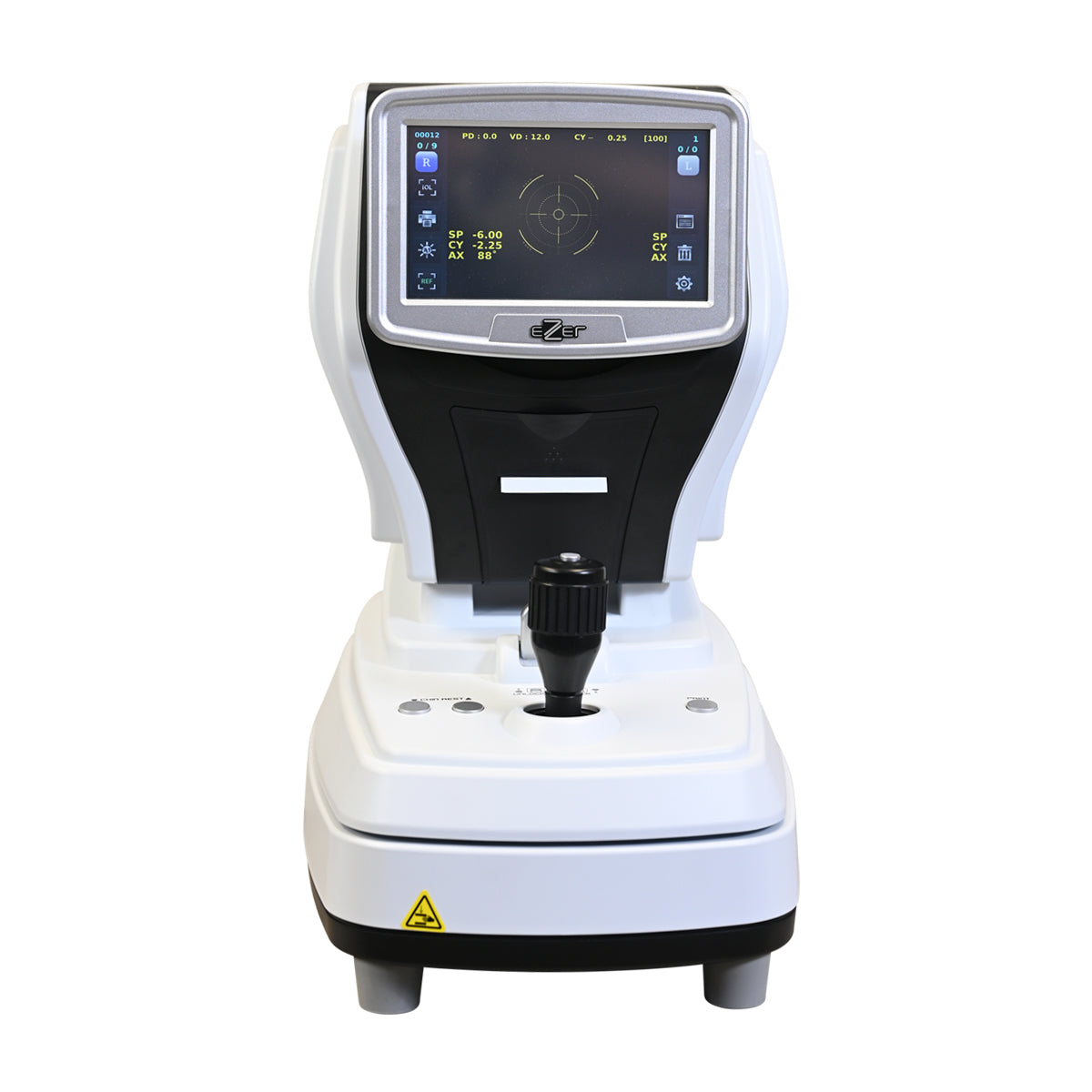

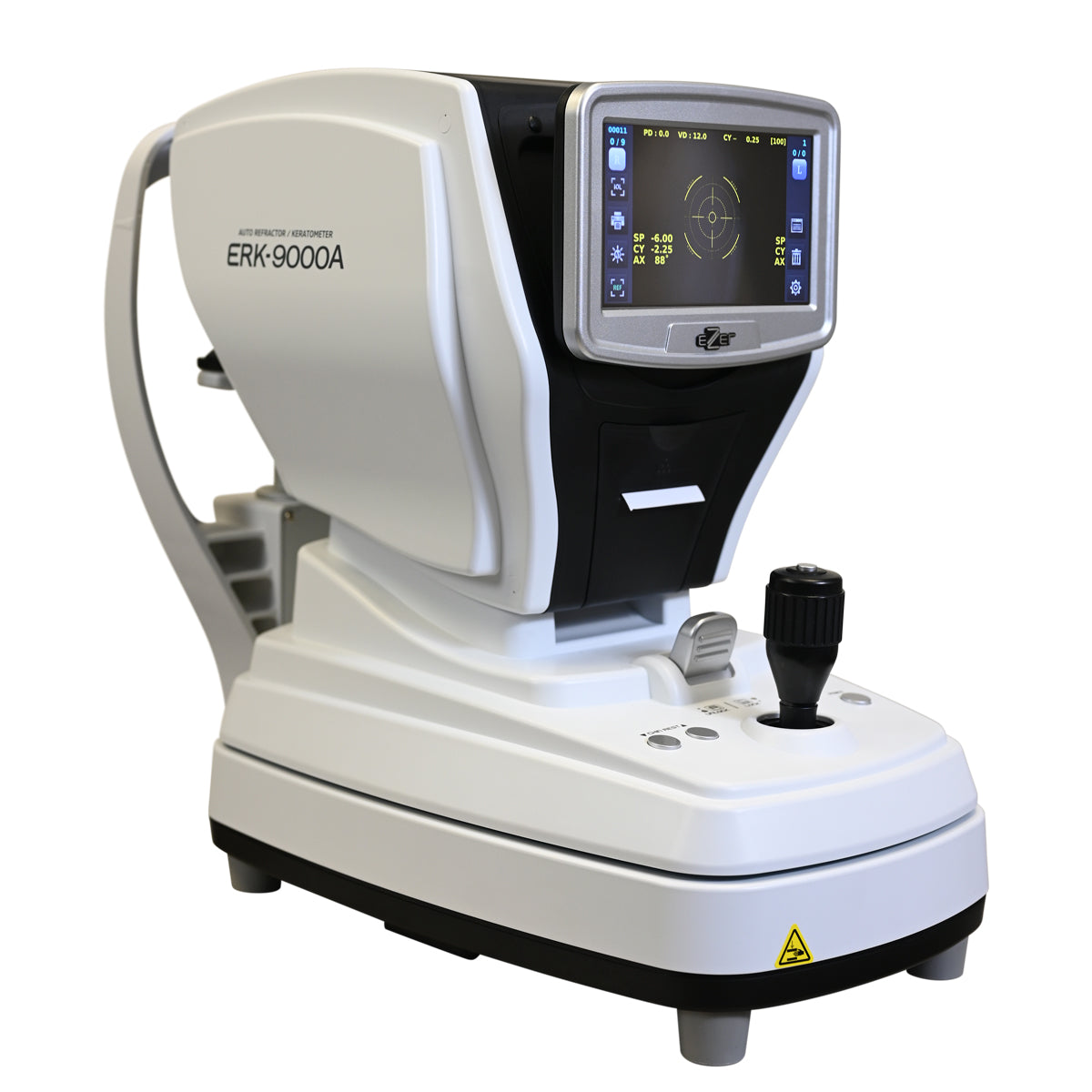

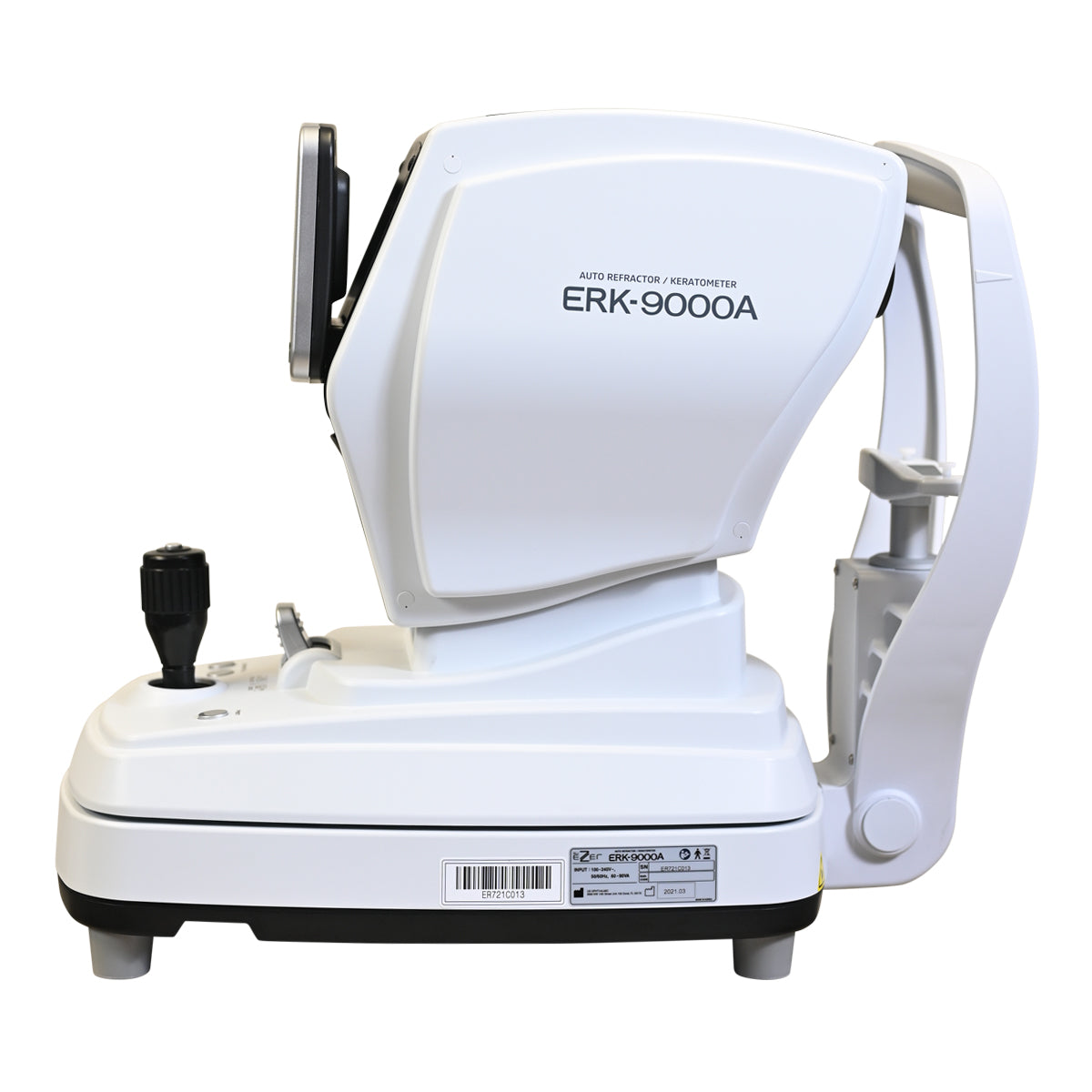

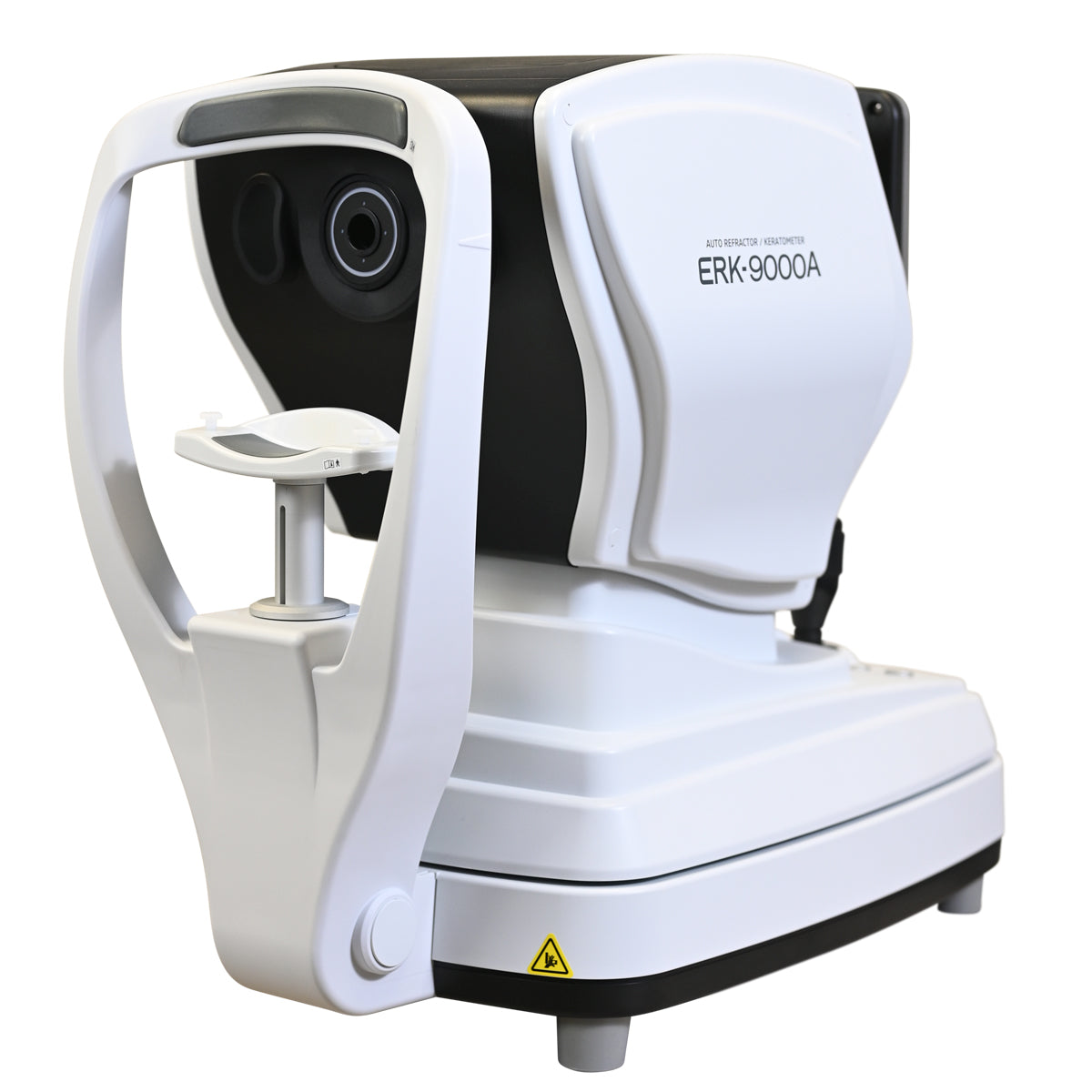

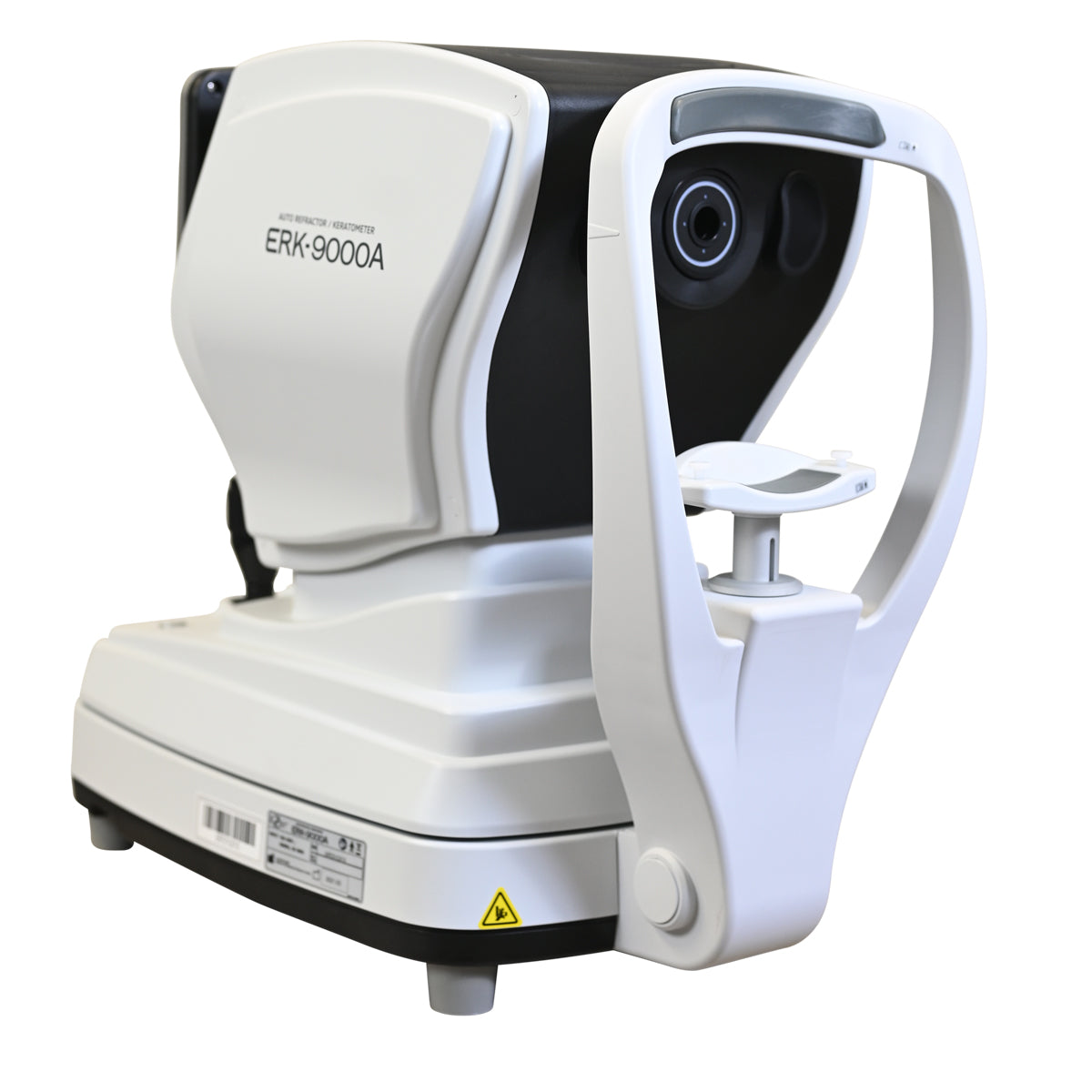

The Ezer ERK-9000 A Auto Refractometer Keratometer represents a new generation of ophthalmic equipment, featuring an illumination sensor, focus navigator, and extremely fast automatic measurements with high-precision data.
Easy to use and quick to operate, it offers Bluetooth connectivity with the entire Ezer Digital Practice line to perform a complete digital eye examination.
Measures the horizontal and vertical corneal periphery to obtain precise curvature values
Total integration with the Ezer Digital Practice line for comprehensive digital examinations
RK, REF, KER, IOL, and CLBC modes to cover all visual examination needs
The ERK-9000A incorporates advanced Wavefront technology, providing highly accurate and reliable refractive and keratometric measurements for more precise diagnoses.
Retro-Illumination
The operator can alter the settings easily and quickly thanks to a unique design. It can measure the periphery of the cornea both horizontally and vertically from the center of the cornea to obtain the curvature and eccentricity values of all points. This allows for the best fit for contact lenses.
Precise Data
The ERK-9000 A is designed with an image chip to allow the REF measurement speed to be faster and to obtain more precise and stable measurement data.

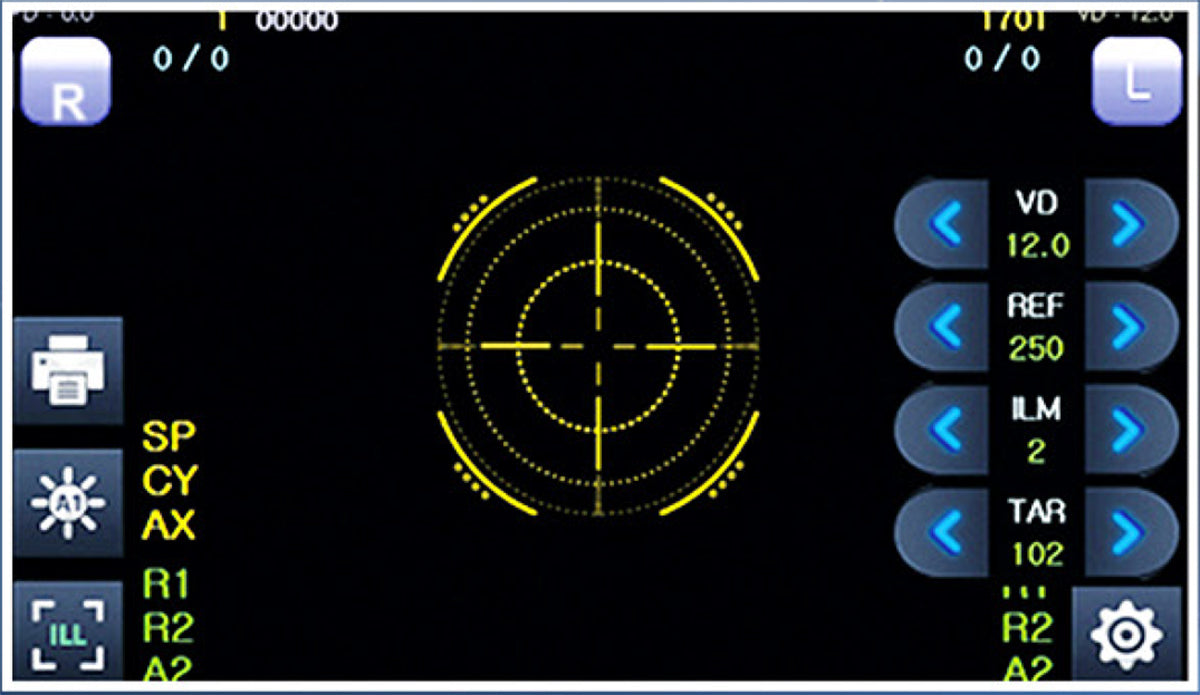

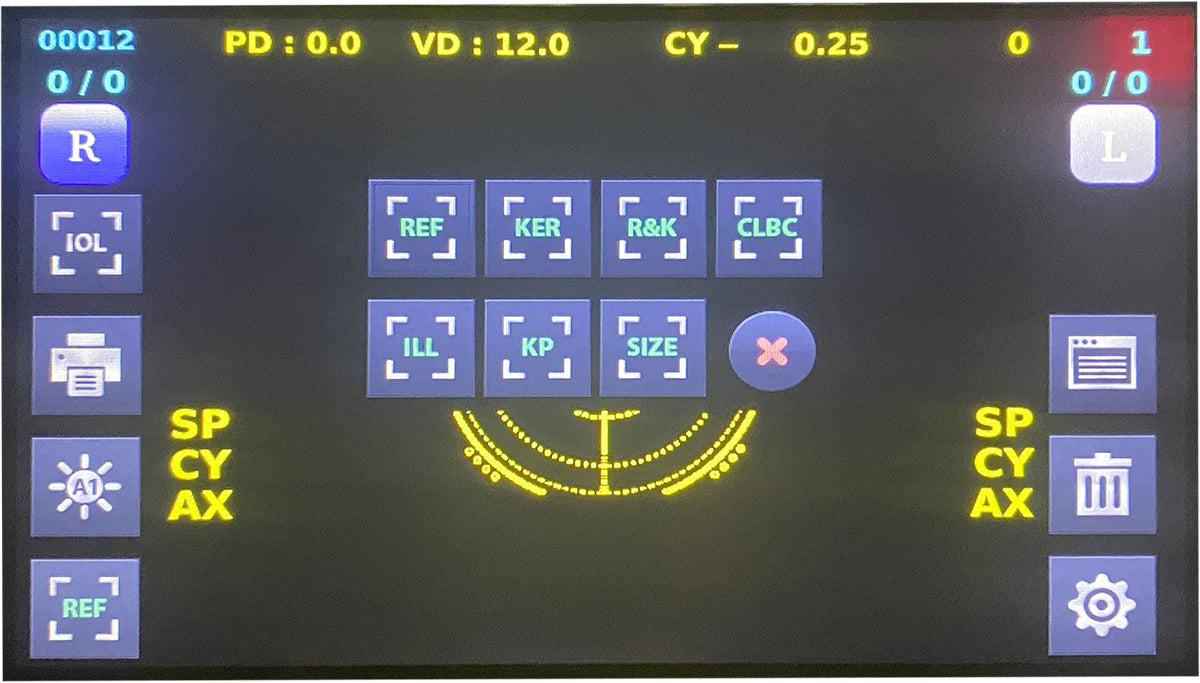

Simple and Convenient User Environment

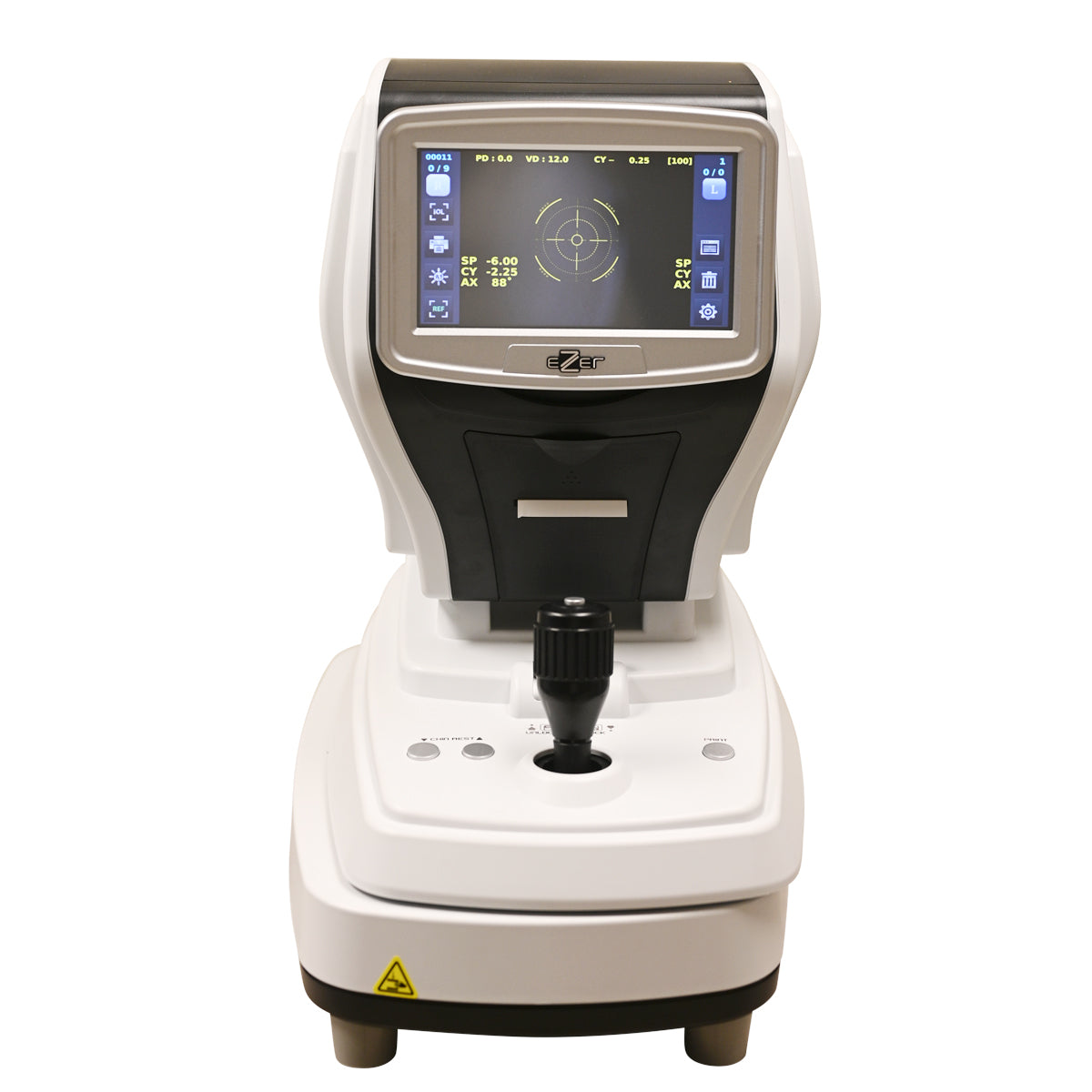

El ERK-9000 A features a user-friendly panel view. Sharp images with easy-to-understand icons make this 8.0-inch TFT color touch LCD interface a pleasure to work with.

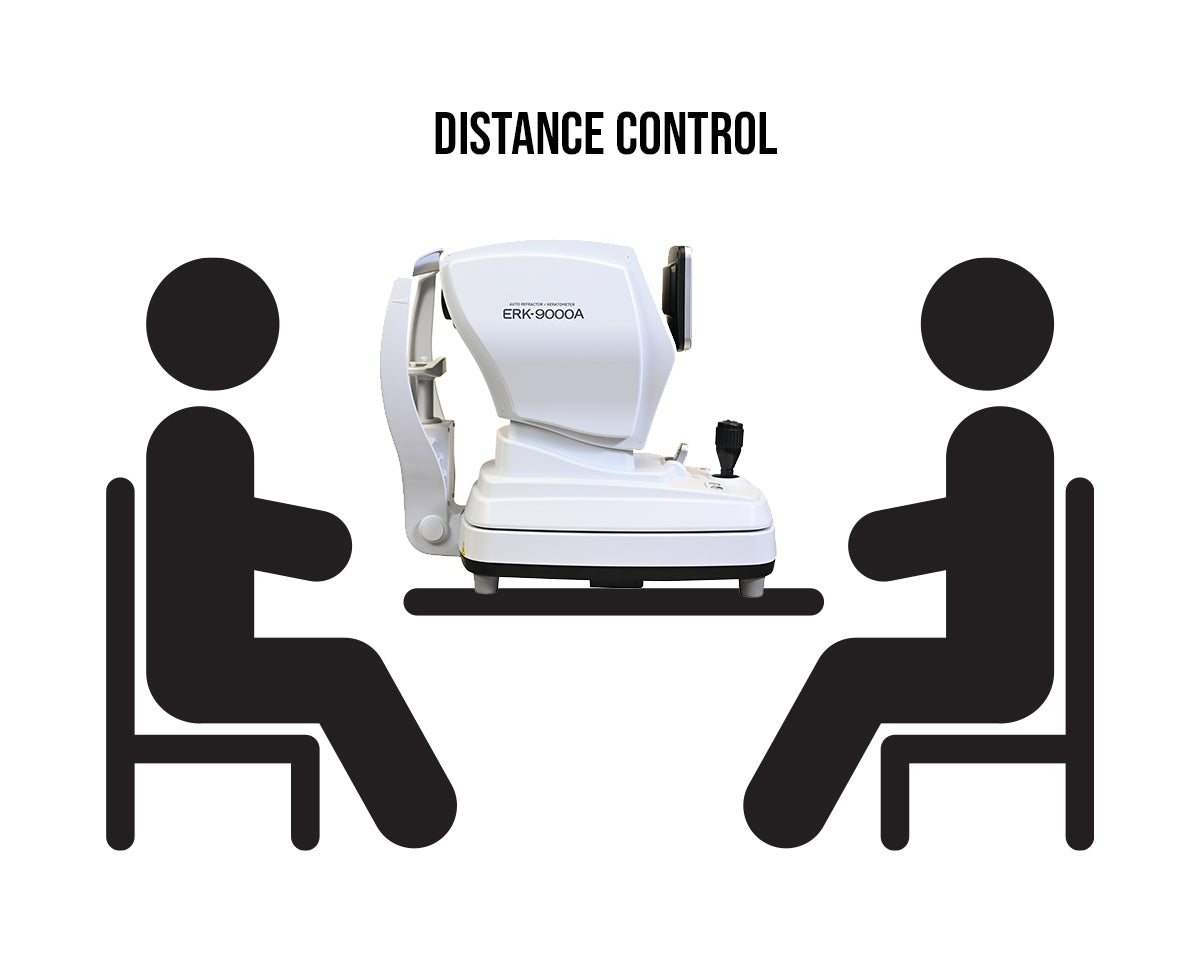

Safe environment for the patient (follow COVID-19 regulations): wear a face mask during operation and in any direct contact between the patient, the operator, and third parties.
Specialized Tests for Individualized Care
Las pruebas pueden adaptarse específicamente a cada paciente utilizando una variedad de configuraciones. Auto-refract each eye with REF Mode or record K readings using KER Mode, or combine refractometry and keratometry through the R/K configuration. CLBC Mode determines the appropriate base curve for contact lens fitting, while Wide Diopter Mode provides specialized readings from +22.00D to -25.00D.

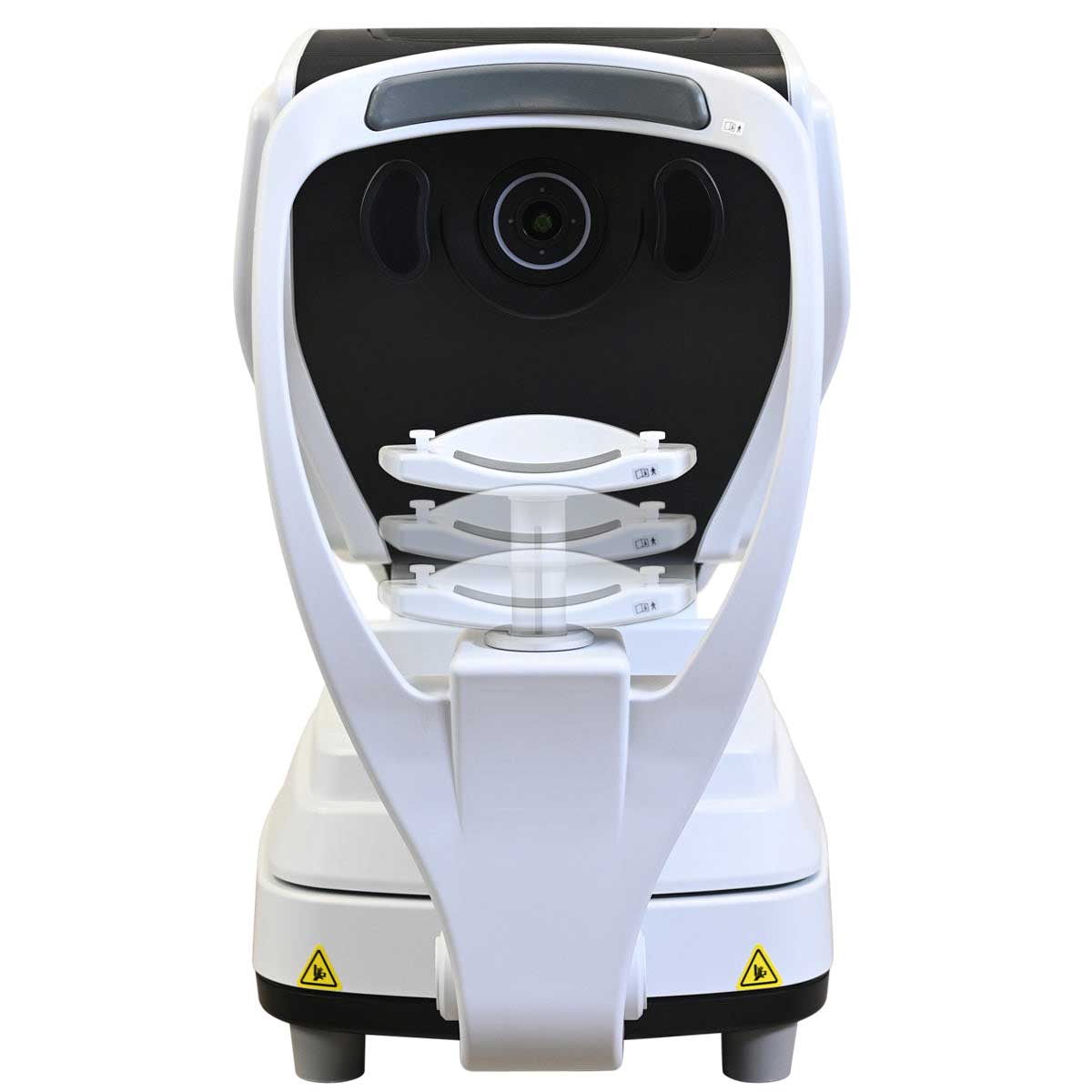

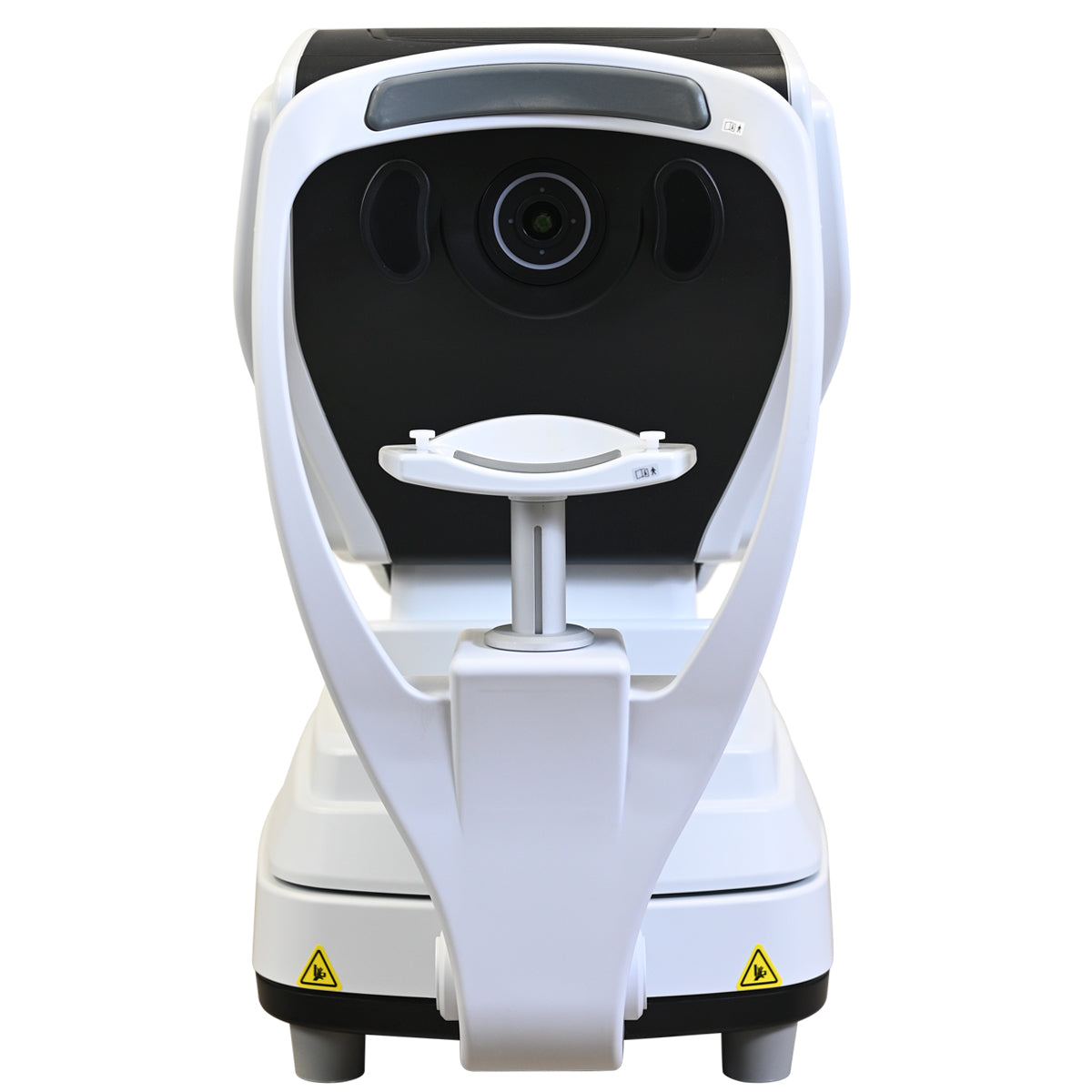

Motorized Chin Rest
The electronic elevation of the chin rest allows easy patient alignment.

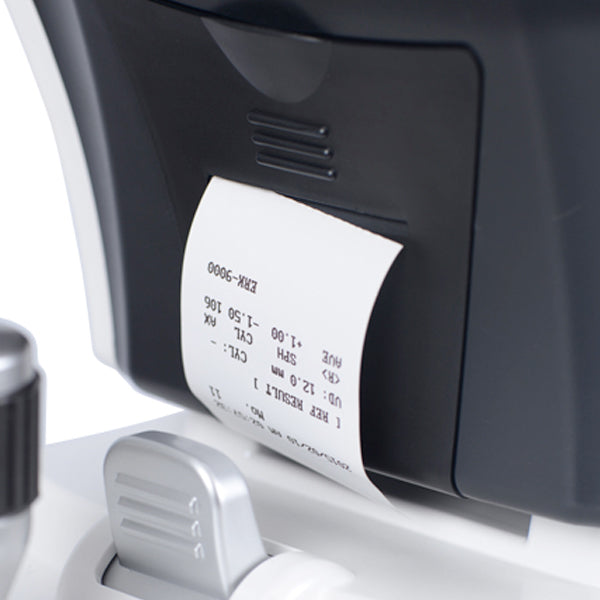

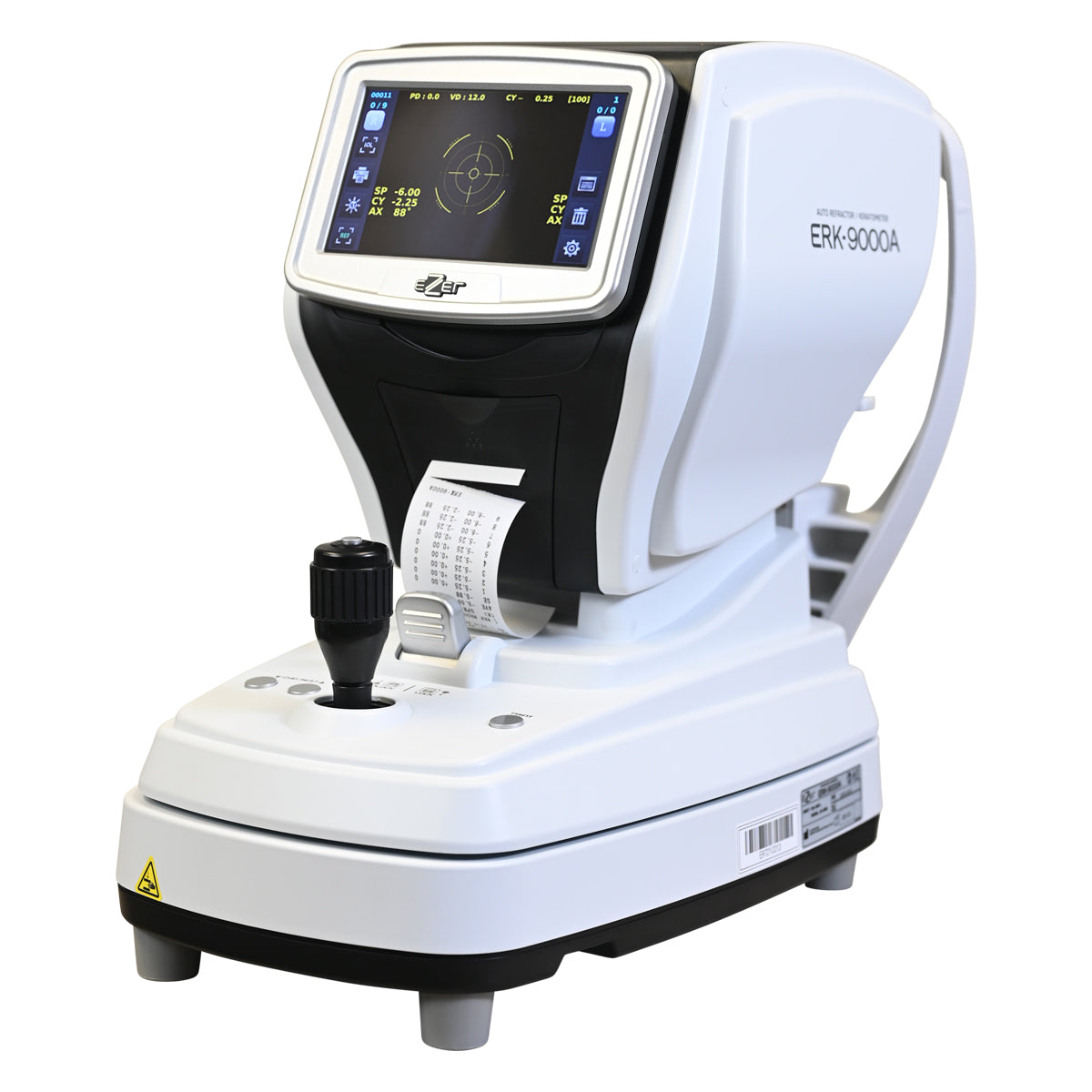

High-Speed Printer with Automatic Paper Cutter
The high-speed printer delivers immediate results. Findings are printed and then cut for added convenience.

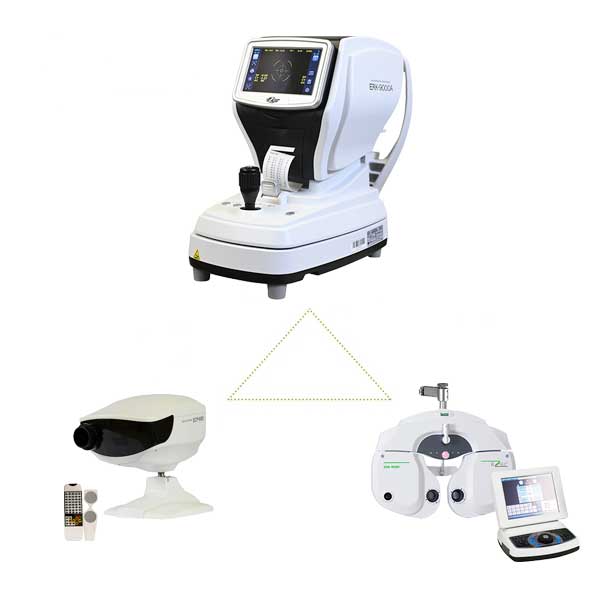

Easy Network Capability
Combine the ERK-9000 A with an Ezer digital refractor and an integrated chart projector to form an Ezer Digital Refraction Practice. The complete set enables a thorough digital visual examination, comfortably and efficiently.
0, 0.4, 0.5, 0.53, 0.6 in (0, 10, 12, 13.5, 15 mm)
-25.00 ~ +22.00 (VD: 0.5 in / 12mm) - Unit: 0.12 / 0.25D
-0.00 ~ +/-10.00D - Unit: 0.12 / 0.25D
0 ~ 180° (Unit: 1°)
-, +, Mix
0.4 ~ 3.34 in (10 ~ 85 mm)
Ø 0.08 in / 2.0 mm
0.2 ~ 0.4 in (5 ~ 10.2 mm) (Unit: 0.0004 in / 0.01 mm)
33.00 ~ 67.50D (Unit: 0.12 / 0.25D)
0.00 ~ -15.00D - Unit: 0.12 / 0.25D
1 ~ 180° Unit: 1°
0.08 ~ 0.5 in (2.0 ~ 12.0mm) Unit: 0.004 in / 0.1mm
10 measurements for each eye
Thermal Line Printer
7-inch TFT LCD color monitor
Max. 2.5in / 65mm, electrical movement
Temperature: +10°C ~ +40°C, Humidity: 30% ~ 90% RH, Atmospheric pressure: 70 kPa ~ 106 kPa
Temperature: -40°C ~ +70°C, Humidity: 10% ~ 95% RH, Atmospheric pressure: 50 kPa ~ 106 kPa
AC100~240V, 50/60Hz
90VA
11(W) x 21(D) x 17.3(H) in / 39.6 lb (275 x 525 x 440 mm / 18 Kg)
